Marker Measurements
Amplitude
Peak Threshold
Minimum Excursion
DPX Signal Density
Density Threshold
Minimum Excursion
Smoothing (pixels squared)
xxx
1. Select Markers > Define Markers to display the Define Markers control panel.
2. Select the Define Peaks tab.
3. To define the level for Peak Threshold, enter a value in the Peak Threshold number entry box.
4. To define the amount the trace must dip, enter a value in the Peak Excursion number entry box.
5. Click the close button to remove the Define Markers control panel.

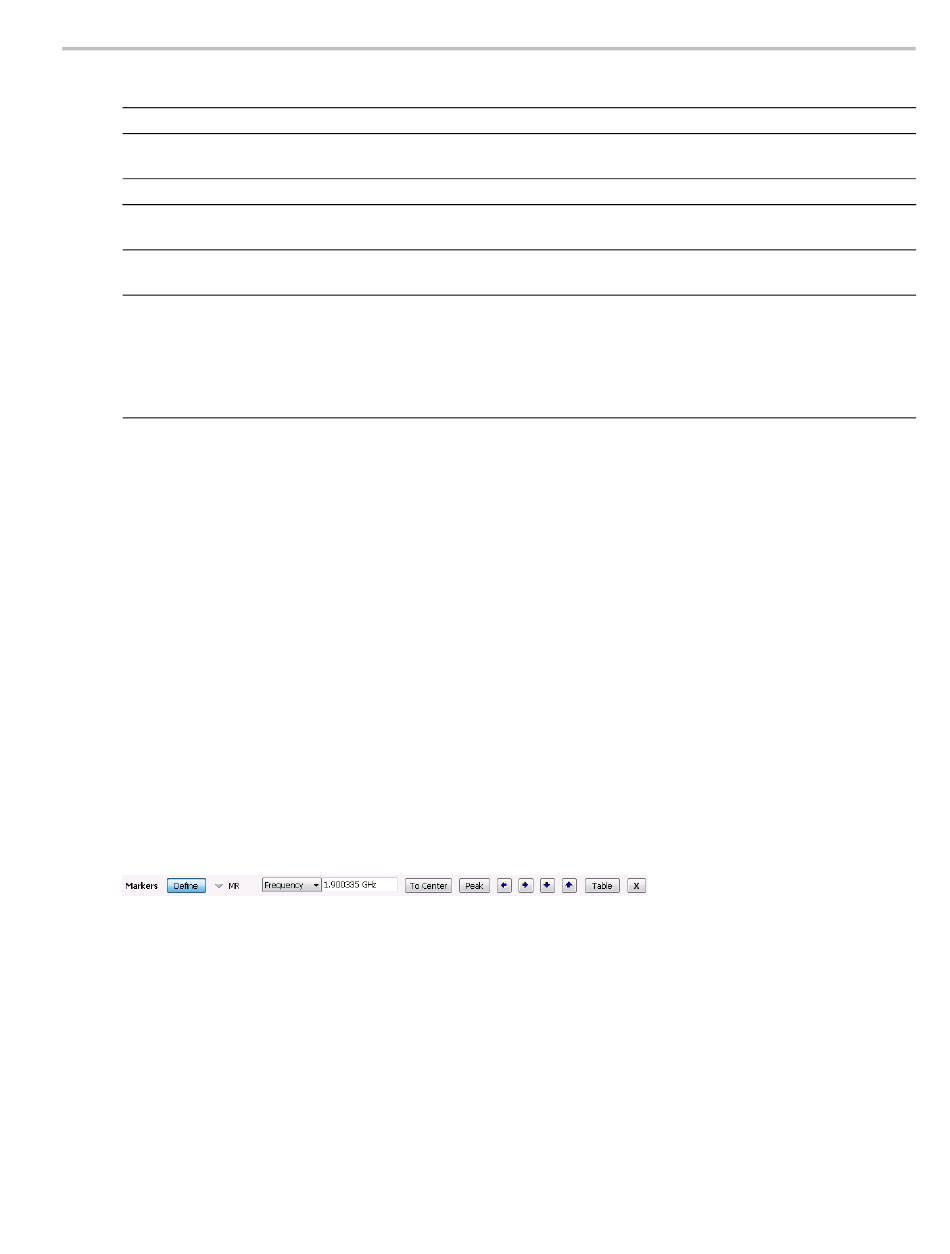

Using the Markers Toolbar

Front Panel: Markers
Application toolbar:
Menu bar: View > Marker Toolbar
Select Marker Toolbar to display or hide the Marker Toolbar in the application window. The Marker
Toolbar enables you to operate existing markers or define new markers.
Enabling a marker or adjusting the position of a marker automatically opens the Markers toolbar.
SPECMON3 & SPECMON6 Printable Help
Peak Threshold specifies the level that the signal must exceed to be considered a peak.
Minimum Excursion specifies how much the signal must decrease and then increase
before another peak can be declared.
Density Threshold specifies the signal density (number of hits per displayed pixel) that
the DPX bitmap must exceed to be considered a trigger event.
Minimum Excursion specifies how much the signal density must decrease and increase
again before another peak can be declared.
Smoothing specifies the number of pixels around the marker that are averaged together
to reduce "noise" in the readout of signal density. The value of this control is the number
of pixels on each side of the square area used for averaging. With Smoothing = 1, no
averaging is done and the marker z-axis readout is the hit count (density) of a single
pixel. Use this control to characterize how wide or narrow a range of pixels should be
averaged to determine the signal density.
Using the Markers Toolbar
