RF Measurements
10. To add adjacent channels, click the Add button under Adj Chans.

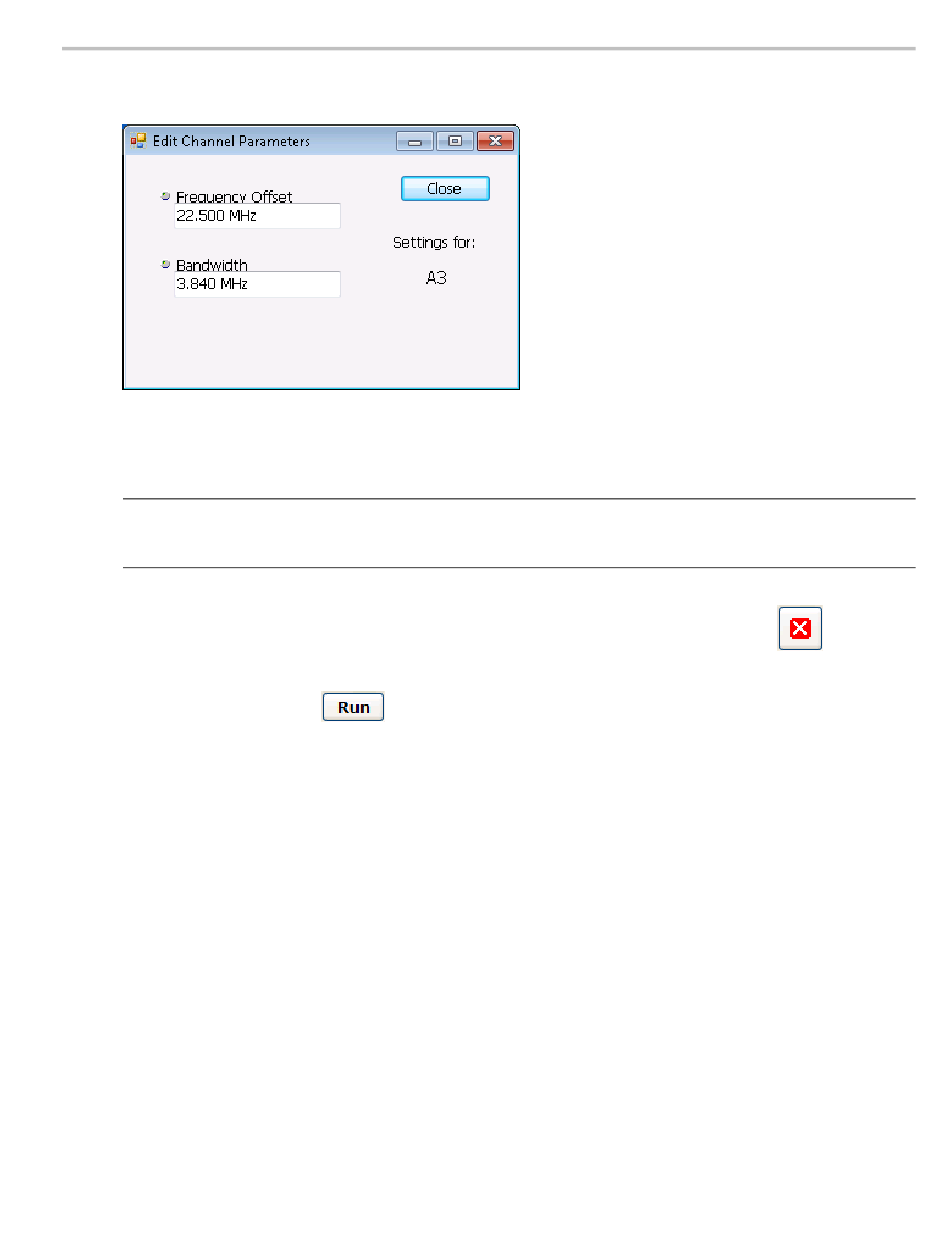

11. To edit Frequency Offset or Bandwidth, click within the value box and use the front-panel knob or
your keyboard to set the value. Click Close to save your changes.
NOTE. Frequency Offset is the difference between the center frequency of the selected channel and
the Measurement Frequency. All channels (Main or Adjacent) are specified by their offset from the
Measurement Frequency.
12. After you have configured the Main and Adjacent channels, click the close button (
Settings panel or the Settings button to remove the settings panel.
13. Click the Run button (
Viewing Results
MCPR measurement results are displayed both in the spectrum graph and in a table below the spectrum
display. Individual Main channel power measurements appear in the graph under their channel identifiers.
Individual adjacent channel power ratios also appear in the graph under the adjacent channel identifier.
SPECMON3 & SPECMON6 Printable Help
MCPR (Multiple Carrier Power Ratio) Display
) to take the measurements.
) in the
