3.3. Installation of flow transmitter

The flow transmitter may be mounted on a wall or 2B pipe stand (option).

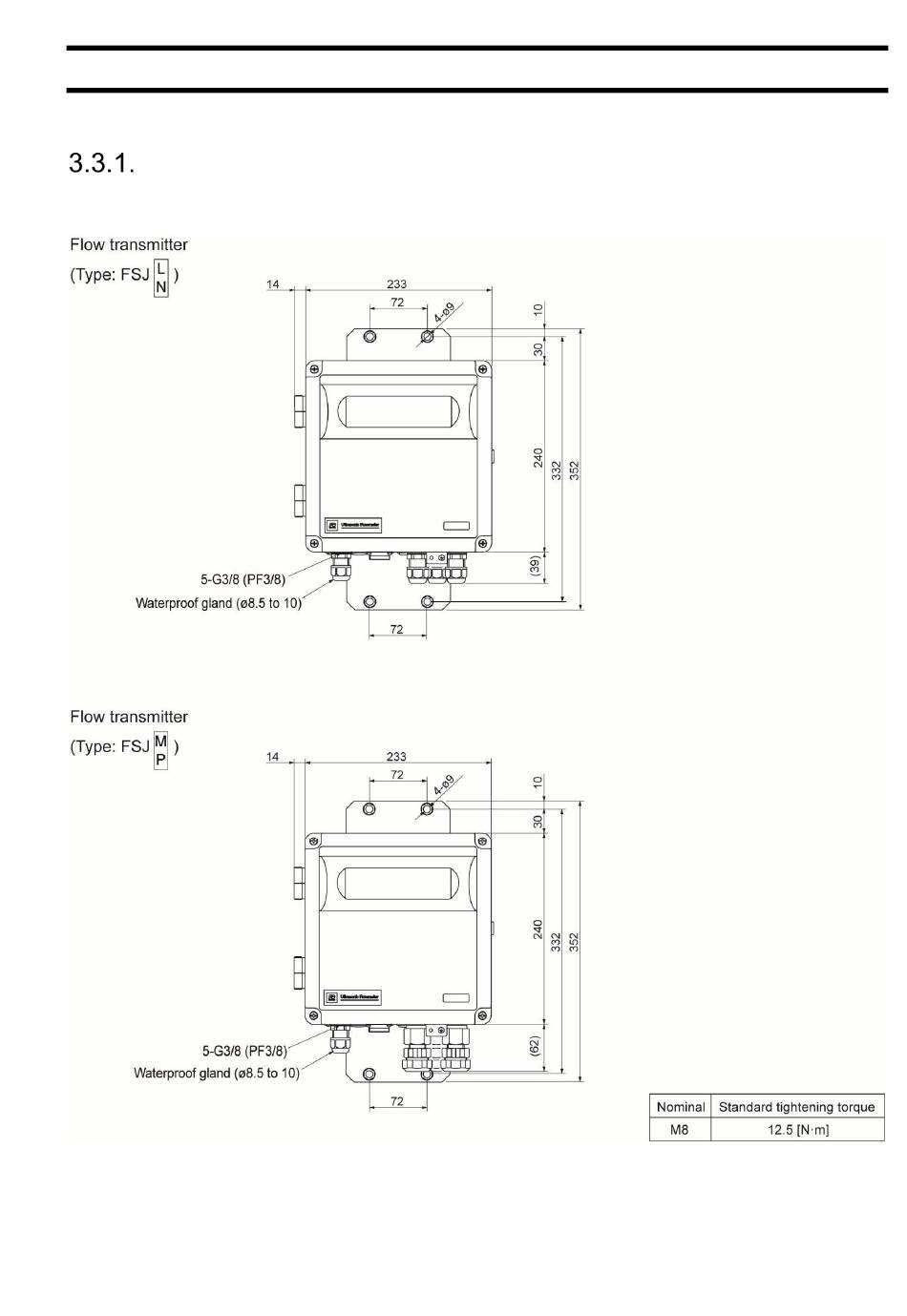

Wall mounting

For wall mounting, use four M8 bolts.
Drill holes according to the mounting hole dimensions shown below, and fasten the flow transmitter using the M8 bolts.
－13－
