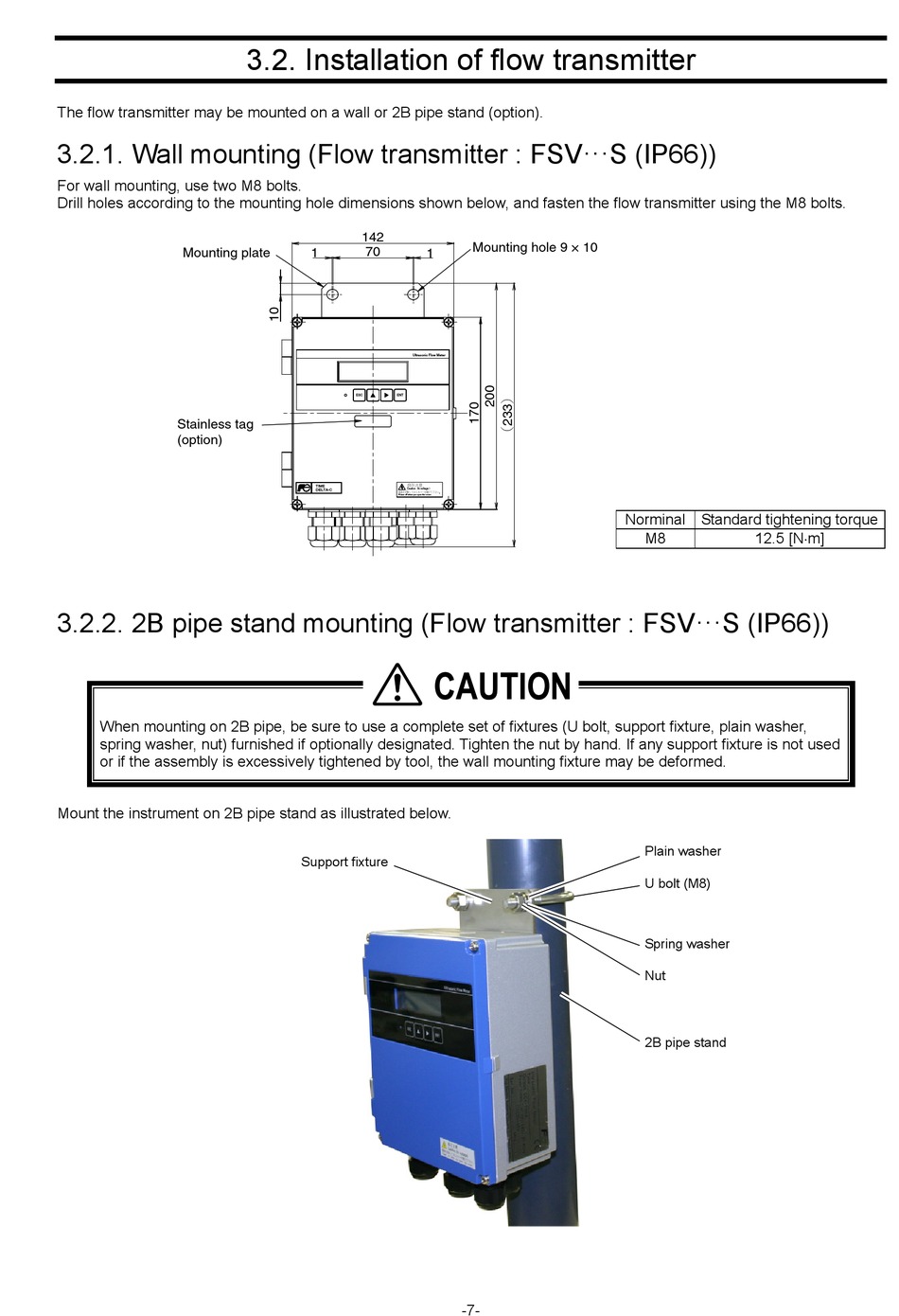

Installation Of Flow Transmitter; Wall Mounting; (Ip66)); Pipe Stand Mounting - Fuji Electric Time Delta-C FSV-2 Instruction Manual

The flow transmitter may be mounted on a wall or 2B pipe stand (option).
3.2.1. Wall mounting (Flow transmitter : FSV···S (IP66))
For wall mounting, use two M8 bolts.
Drill holes according to the mounting hole dimensions shown below, and fasten the flow transmitter using the M8 bolts.
Mounting plate
Stainless tag
(option)
3.2.2. 2B pipe stand mounting (Flow transmitter : FSV···S (IP66))
When mounting on 2B pipe, be sure to use a complete set of fixtures (U bolt, support fixture, plain washer,
spring washer, nut) furnished if optionally designated. Tighten the nut by hand. If any support fixture is not used
or if the assembly is excessively tightened by tool, the wall mounting fixture may be deformed.
Mount the instrument on 2B pipe stand as illustrated below.

3.2. Installation of flow transmitter

142
70
1
Ultrasonic Flow Meter
ESC ENT
高圧注意
TIME
Caution（hi voltage）
DELTA-C
電源を切断してからカバーを開けて下さい。
Power off when you open the cover.
Support fixture
Mounting hole 9 × 10
1
AUTION
-7-
Norminal Standard tightening torque
12.5 [N  m]
M8
Plain washer
U bolt (M8)
Spring washer
Nut
2B pipe stand
