SAFE INSTALLATION MANUAL (CENELEC APPROVAL)

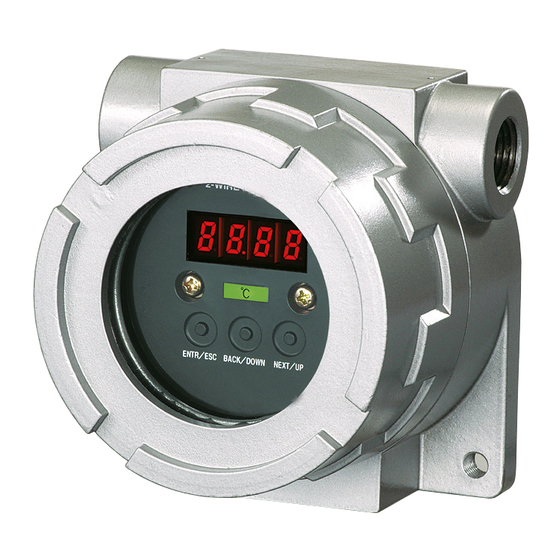

4-DIGIT LOOP POWERED INDICATOR
(outdoor enclosure, flameproof)
BEFORE USE ....
■ SAFETY PRECAUTIONS
This manual describes important points of caution for safe
use of this product in potentially explosive atmosphere.
Please read this manual carefully before installing and op-
erating the product.
■ MODEL NUMBER IDENTIFICATION
Model No. FXE-B – 1 2 3 4 5
1) SAFETY APPROVAL
0 : None
4 : CENELEC flameproof (ATEX)
2) TERMINAL BLOCK
0 : None
3) WIRING CONDUIT
1 : 1/2 NPT
2 : M20 x 1.5
4) ENCLOSURE MATERIAL
A : Diecast aluminium
S : Stainless steel casting
5) MOUNTING BRACKET
0 : Without
1 : With
■ MANUFACTURED DATE CODE IDENTIFICATION
The manufactured year can be identified by the serial num-
ber described on the specification label.
PRODUCTION YEAR
3 : 2013
: :
9 : 2019
Fuji Electric France S.A.S.
46, Rue Georges Besse - Z I du Brézet - 63 039 Clermont-Ferrand cedex 2 FRANCE
France : Tél. 04 73 98 26 98 - Fax 04 73 98 26 99 - International : Tél. (33) 4 7398 2698 - Fax. (33) 4 7398 2699
E-mail : sales.dpt@fujielectric.fr – WEB : www.fujielectric.fr
Serial No. x Y xxxxxx
0 : 2020
1 : 2021
2 : 2022
MODEL
WARNING
Explosions could result in death or serious injury:
• The enclosure cover must be fully engaged to meet explo-
sion-proof/flameproof requirements.
• Do not remove the enclosure cover in explosive atmos-
pheres when the circuit is alive.
• Before you remove the unit or mount it, or before you con-
nect or disconnect the wiring, turn off the power supply
and the input signal for safety. Do not disconnect unless
the area is known to be non-explosive.
• Whenever you need to measure voltage across the termi-
nals or apply a simulated input signal to the terminals,
make sure that there is no danger of explosion in the at-
mosphere.
• Verify the certification of the product described on the
specification label on the product.
• Verify that the operating atmosphere of the meter is con-
sistent with the appropriate hazardous locations certifica-
tions.
• Verify that the environmental temperature is within the
temperature class required for the area.
Failure to follow these installation guidelines could result
in death or serious injury:
• Make sure only qualified personnel perform the installation.
• The flameproof approval of this unit is applied to the com-
bination of the outdoor enclosure and the indicator. The
indicator must not be separated or replaced.
• Substitution of components may impair suitability for the
hazardous location and may cause an explosion.
FXE-B
FXE-B
TNFFXEB-E
