To make automatic measurements

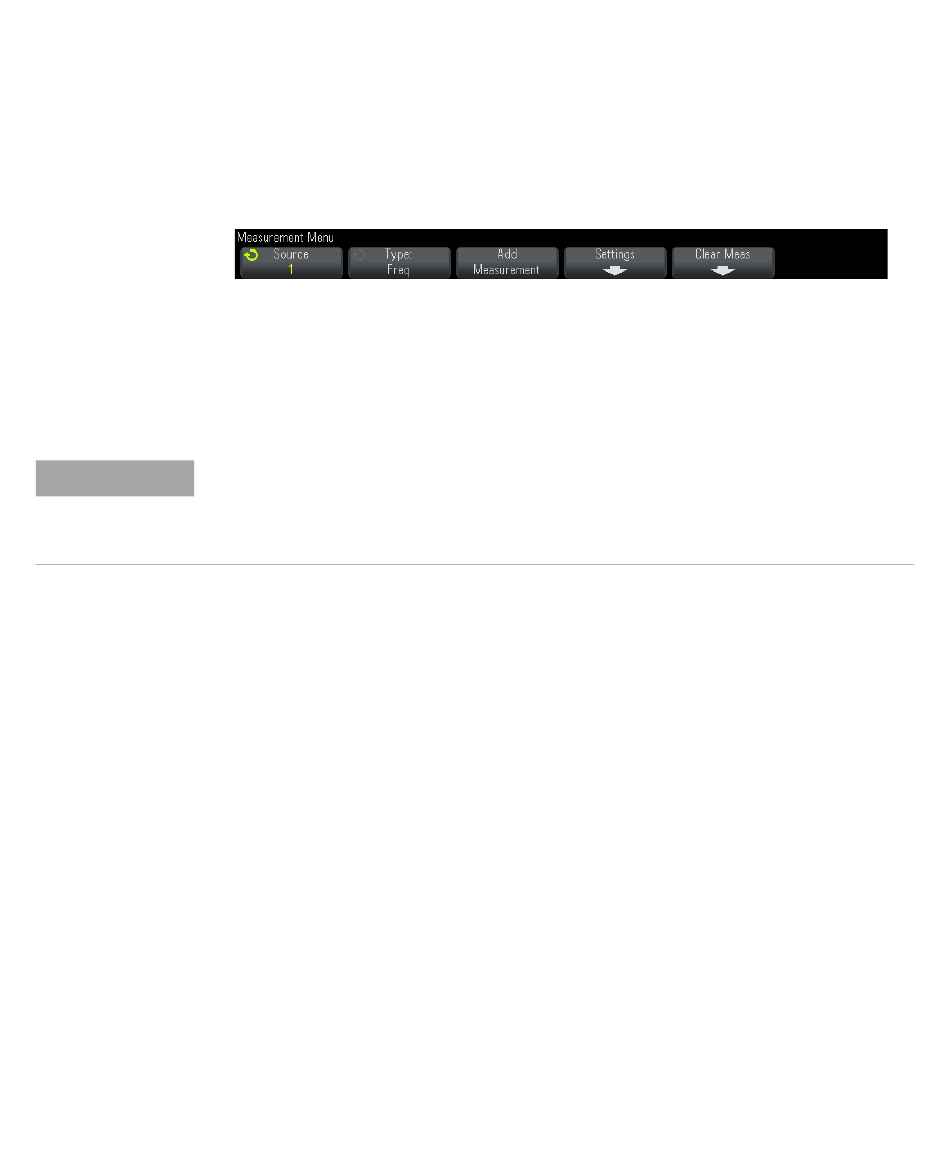

1 Press the [Meas] key to display the Measurement Menu.
2 Press the Source softkey to select the channel, running math function, or
If a portion of the waveform required for a measurement is not displayed or does not display
NOTE
enough resolution to make the measurement (approximately 4% of full scale), the result will
display "No Edges", "Clipped", "Low Signal" (not enough amplitude), "< value", or "> value",
or a similar message to indicate that the measurement may not be reliable.
3 Press the Type softkey then rotate the Entry knob to select a measurement to be
204
reference waveform to be measured.
Only channels, math functions, or reference waveforms that are displayed are
available for measurements.
made.
