Acquiring waveforms using the digital channels

When you press [Run/Stop] or [Single] to run the oscilloscope, the oscilloscope
examines the input voltage at each input probe. When the trigger conditions are
met the oscilloscope triggers and displays the acquisition.
For digital channels, each time the oscilloscope takes a sample it compares the
input voltage to the logic threshold. If the voltage is above the threshold, the
oscilloscope stores a 1 in sample memory; otherwise, it stores a 0.

To display digital channels using AutoScale

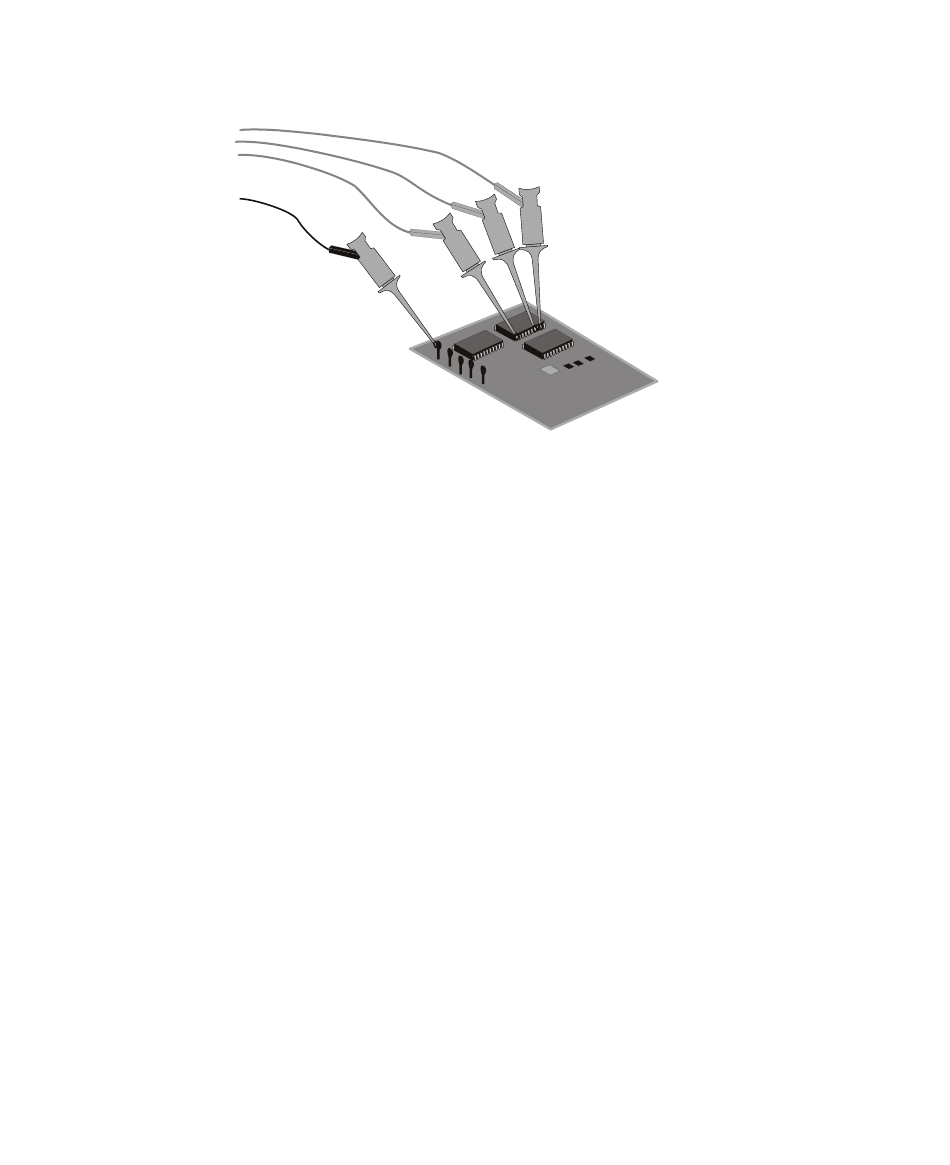

When signals are connected to the digital channels — be sure to connect the
ground leads — AutoScale quickly configures and displays the digital channels.
• To configure the instrument quickly, press the [AutoScale] key.
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
Signals
Ground
6
Digital Channels
105
