Connections Panel; Interface Area - Thermo Scientific EA IsoLink IRMS System Operating Manual

Connections Panel

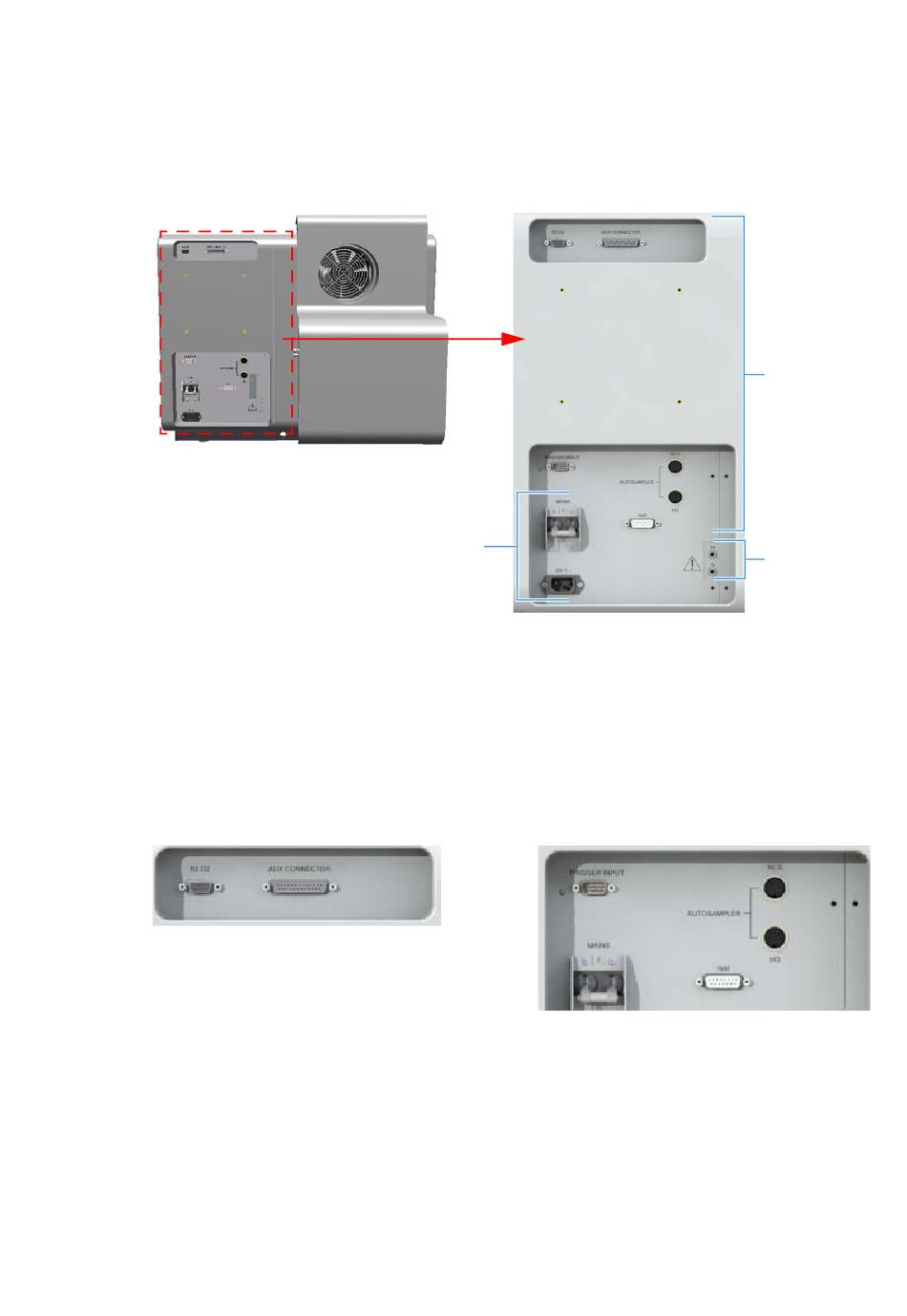

The connections panel is shown in
Figure 19. View of the Connections Panel
The connections panel is subdivided into the following connecting areas: interface, power supply, and
gases supply.

Interface Area

The interface area comprises the connectors for connecting the autosamplers and the helium
management device, and the automatic switching valve. See
Figure 20. Interface Area
• A 9-pin connector marked RS 232 to dialog with the computer via serial line.
• A 25-pin connector marked Aux Connector for the remote start of the instrument.
• A 2-pin connector marked Autosampler HO for the MAS Plus autosampler installed on the left
channel for HO determinations.
• A 2-pin connector marked Autosampler NCS for the MAS Plus autosampler installed on the
Right channel for NCS determinations.
• A 9-pin connector marked Trigger Input for the control of the automatic switching valve.
