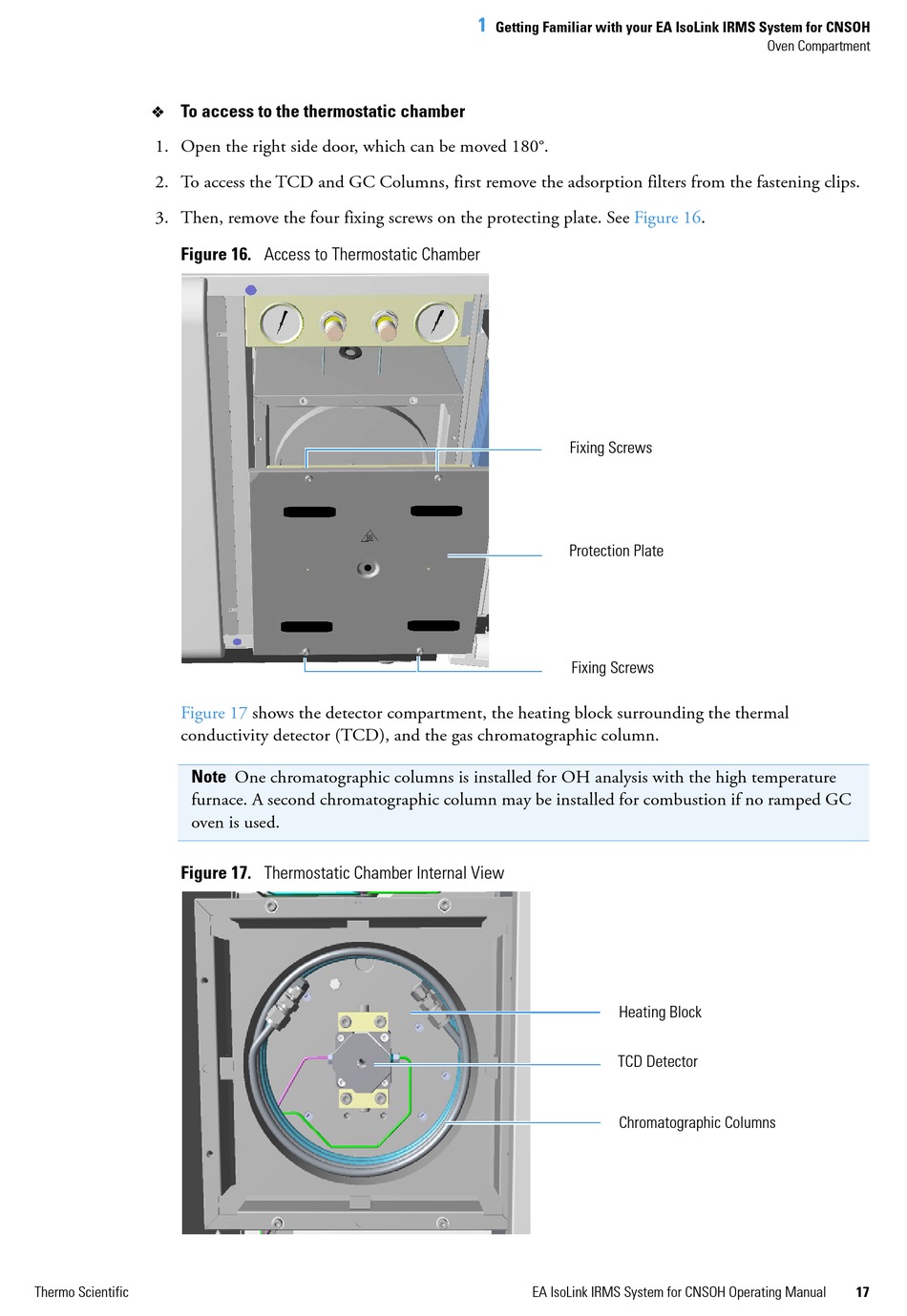

 To access to the thermostatic chamber
1. Open the right side door, which can be moved 180°.
2. To access the TCD and GC Columns, first remove the adsorption filters from the fastening clips.
3. Then, remove the four fixing screws on the protecting plate. See
Figure 16. Access to Thermostatic Chamber
Figure 17
conductivity detector (TCD), and the gas chromatographic column.
Note One chromatographic columns is installed for OH analysis with the high temperature
furnace. A second chromatographic column may be installed for combustion if no ramped GC
oven is used.
Figure 17. Thermostatic Chamber Internal View
Thermo Scientific
shows the detector compartment, the heating block surrounding the thermal
1
Getting Familiar with your EA IsoLink IRMS System for CNSOH
Figure
Fixing Screws
Protection Plate
Fixing Screws
Heating Block
TCD Detector
Chromatographic Columns
EA IsoLink IRMS System for CNSOH Operating Manual
Oven Compartment
16.
17
