The installation procedure includes the following steps:
•

Installation of the Sampling Unit

• Installing the Syringe
• Electrical Connections
• Starting-up
Installation of the Sampling Unit
 To install the sampling unit
1. Lift the sampling unit and insert it into the guide pivot located on the sampling system support.
Introduce the guide pivot into the hole provided on the bottom of the base. See

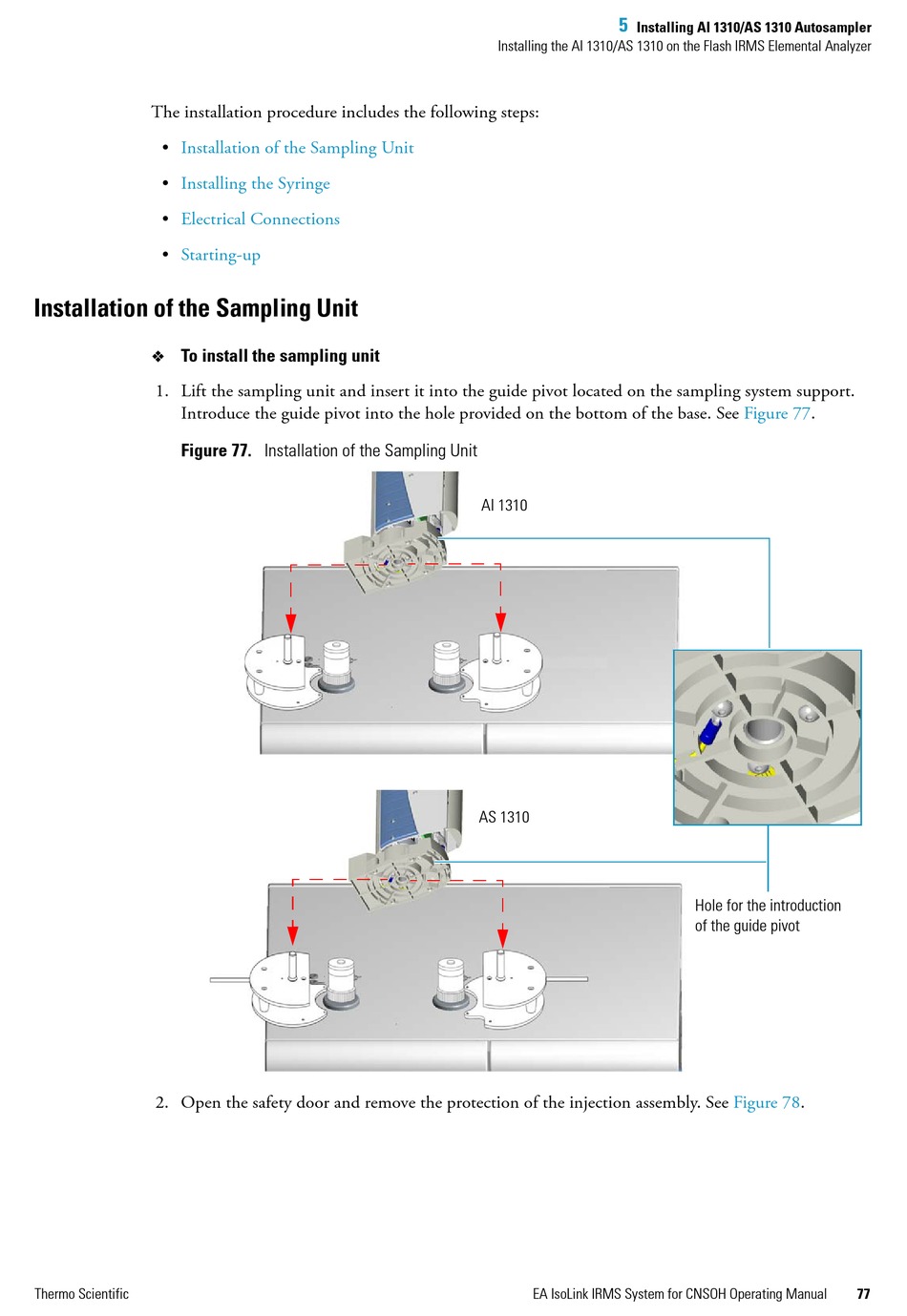

Figure 77. Installation of the Sampling Unit
2. Open the safety door and remove the protection of the injection assembly. See
Thermo Scientific
5
Installing AI 1310/AS 1310 Autosampler
Installing the AI 1310/AS 1310 on the Flash IRMS Elemental Analyzer
AI 1310
AS 1310
EA IsoLink IRMS System for CNSOH Operating Manual
Figure 77.
Hole for the introduction
of the guide pivot
