Top Panel
The top panel of the Elemental Analyzer is shown in

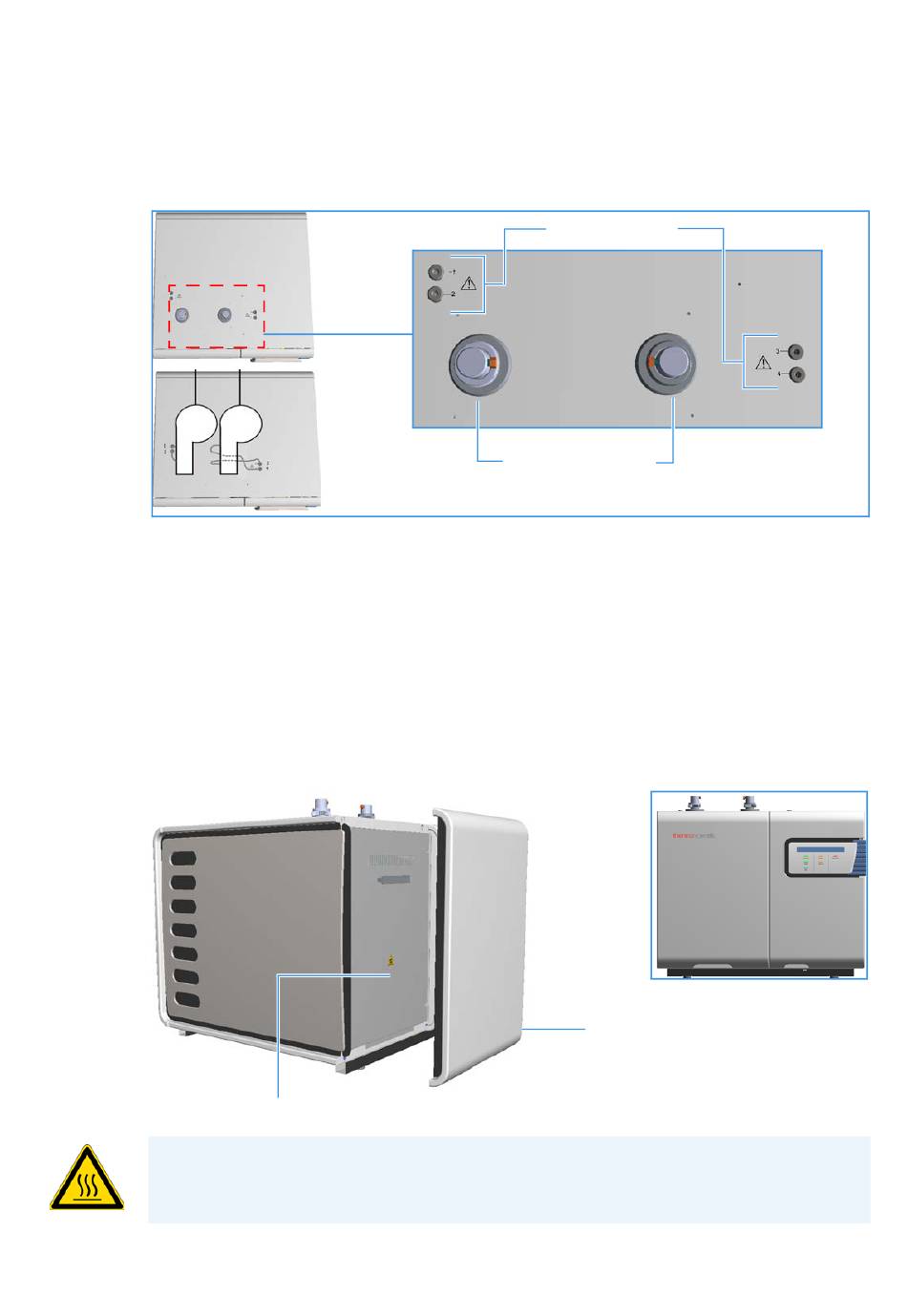

Figure 11. Instrument Top Panel
Autosamplers
The top panel comprises:
• Fittings for mounting and securing reactors and autosamplers.
• Fittings for Helium carrier gas and ConFlo™ Universial Interface™ connection.
Furnaces Compartment
The furnaces compartment can be accessed from the instrument front by removing (lifting) the cover.
See
Figure
Figure 12. Furnace Compartment with Protection Plate
Furnace compartment protection plate
WARNING Do not open the furnace compartment during operation due to the very high
temperatures reached during operation. The protecting plate should only be removed when the
temperature of the furnace is near that of room temperature.
Thermo Scientific
12.
1
Getting Familiar with your EA IsoLink IRMS System for CNSOH
Figure
11.
Gas Connections
Fittings for Reactors
Furnace Compartment Cover
EA IsoLink IRMS System for CNSOH Operating Manual
Top Panel
13
