4. Check the correct alignment of the sampling system support, then fix it by tightening the proper
fixing screws.
5. Insert the sample tray into the sampling unit base.
• AI 1310 — Insert the 8-position sample tray into the appropriate housing of the sampling
• AS 1310 — Insert the dedicated support plate into its appropriate housing of the sampling

Installing the Syringe

The installation of the syringe is a simple operation. However, it must be performed with caution to
avoid damages to the syringe needle and ensure an optimal performance of the injection device.
The standard syringes have 10 μL and 250 μL capacity with a 50 mm needle. It is also possible to
install 50 μL and 100 μL syringes with needles of 50 mm.
Thermo Scientific
unit base. See Figure 80.

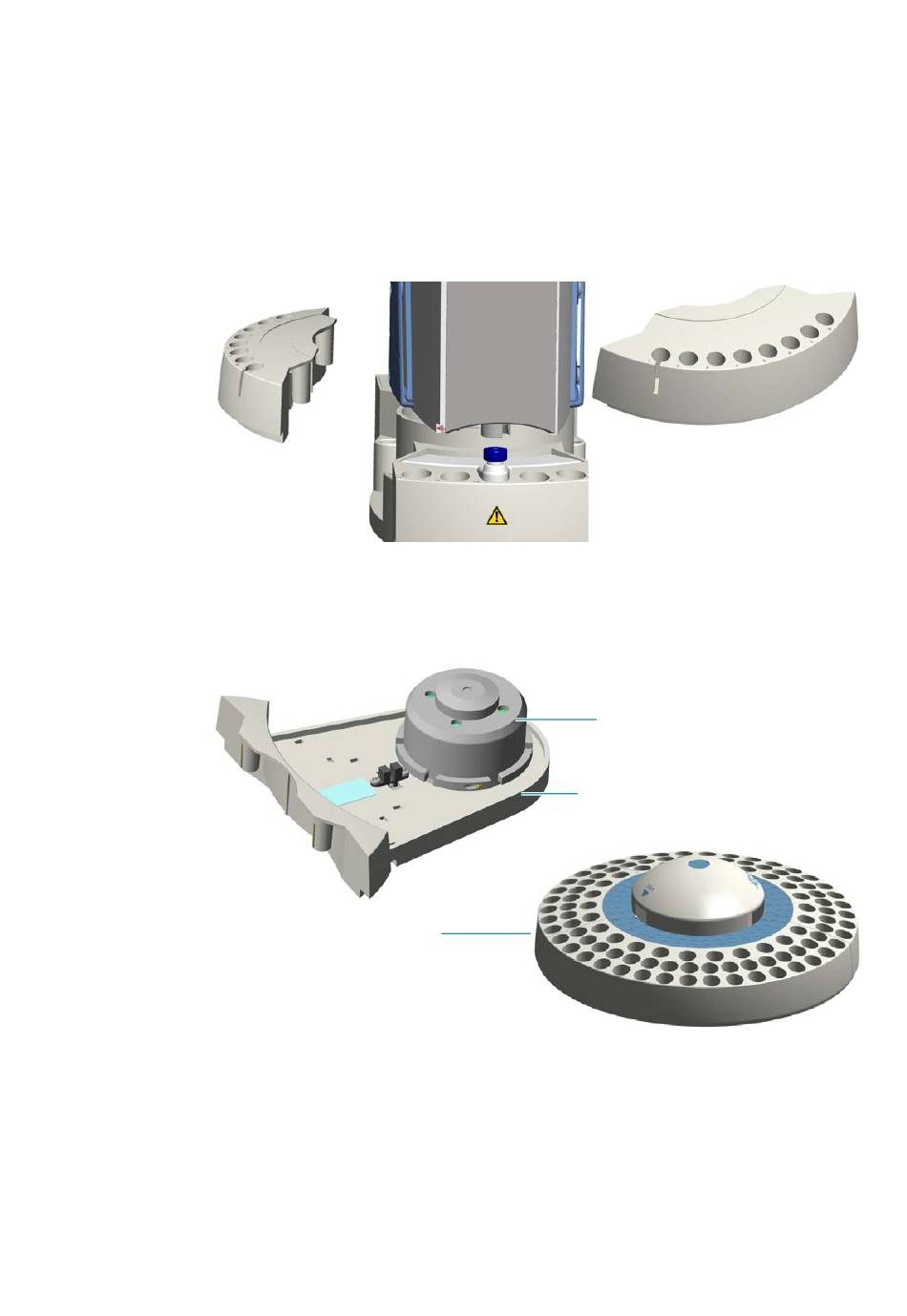

Figure 80. 8-position Sample Tray
unit base. Place the 105-position sample tray on the hub located on the support. The system
will automatically recognize the sample tray at the instrument power on. See
Figure 81. 105-position Sample Tray
105-position Sample Tray
5
Installing AI 1310/AS 1310 Autosampler
Installing the AI 1310/AS 1310 on the Flash IRMS Elemental Analyzer
8-position sample tray
Hub
Support Plate
EA IsoLink IRMS System for CNSOH Operating Manual
Figure 81.
