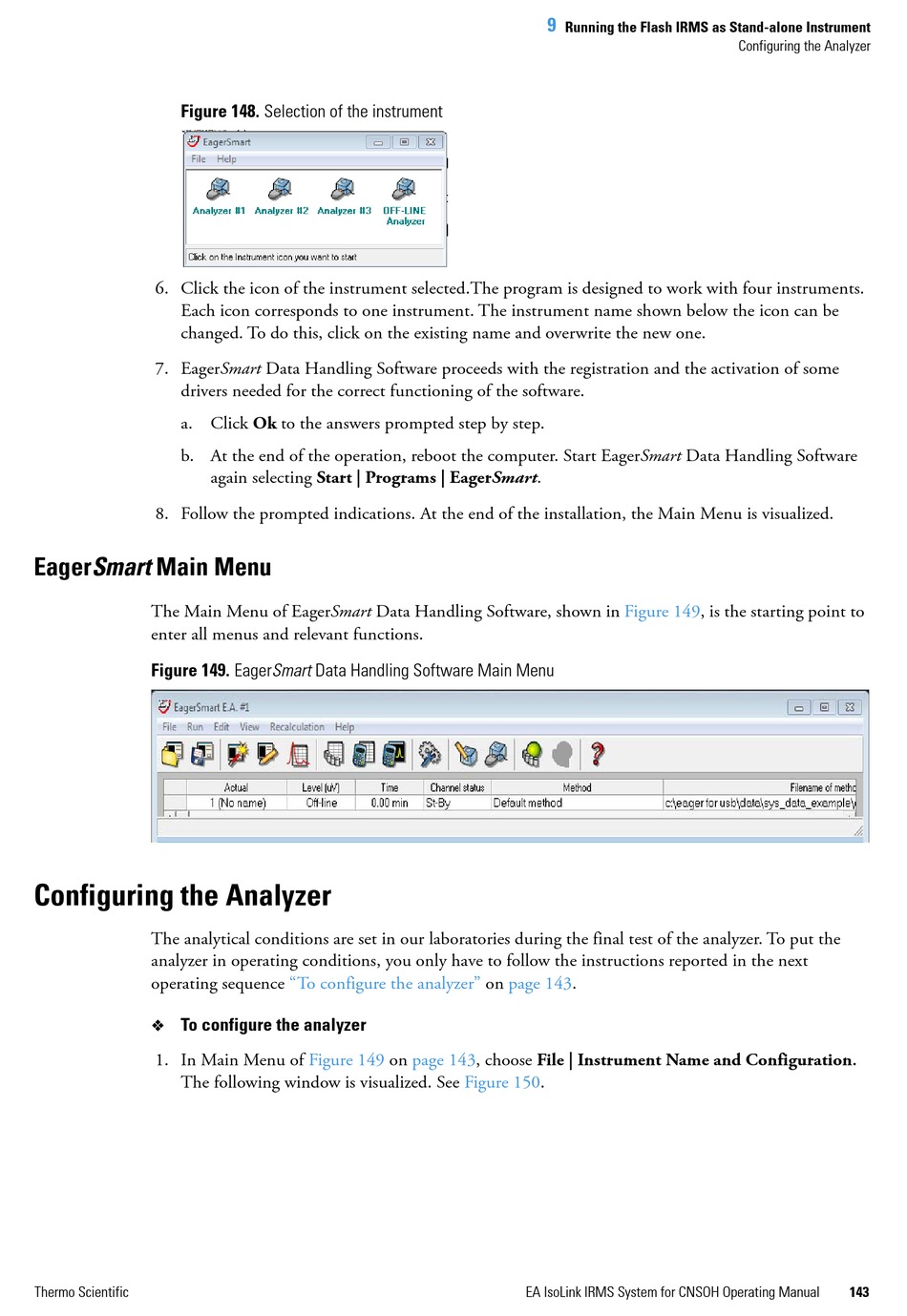

Figure 148. Selection of the instrument
6. Click the icon of the instrument selected.The program is designed to work with four instruments.
Each icon corresponds to one instrument. The instrument name shown below the icon can be
changed. To do this, click on the existing name and overwrite the new one.
7. EagerSmart Data Handling Software proceeds with the registration and the activation of some
drivers needed for the correct functioning of the software.
a. Click Ok to the answers prompted step by step.
b. At the end of the operation, reboot the computer. Start EagerSmart Data Handling Software
8. Follow the prompted indications. At the end of the installation, the Main Menu is visualized.

EagerSmart Main Menu

The Main Menu of EagerSmart Data Handling Software, shown in
enter all menus and relevant functions.
Figure 149. EagerSmart Data Handling Software Main Menu

Configuring the Analyzer

The analytical conditions are set in our laboratories during the final test of the analyzer. To put the
analyzer in operating conditions, you only have to follow the instructions reported in the next
operating sequence
 To configure the analyzer
1. In Main Menu of
The following window is visualized. See
Thermo Scientific
again selecting Start | Programs | EagerSmart.
"To configure the analyzer"
Figure 149
9
on page 143.
on page 143, choose File | Instrument Name and Configuration.
Figure 150.
EA IsoLink IRMS System for CNSOH Operating Manual
Running the Flash IRMS as Stand-alone Instrument
Figure 149, is the starting point to
Configuring the Analyzer
143
