Thermo Scientific EA IsoLink IRMS System Operating Manual page 76

2
Analytical Principles
Preparation of Reactors and Adsorption Filter

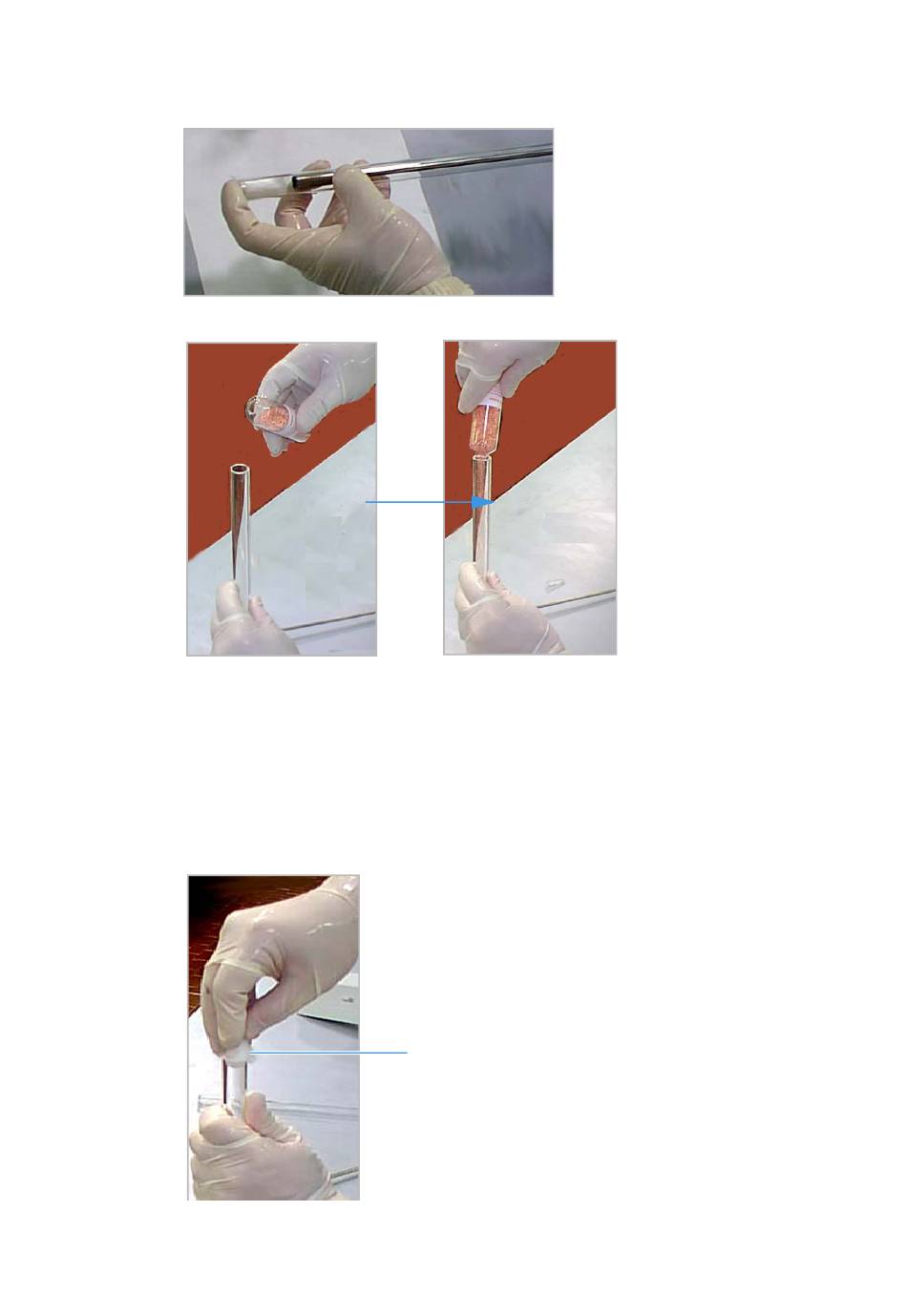

Figure 44. Compression of Quartz Wool into the Quartz Reactor
Figure 45. Filling of the Quartz Reactor
3. Turn the reactor conical end downward and rest it delicately onto the workbench.
4. Pour sequentially the required filling materials into the reactor, as shown in
that each layer has the indicated size. At each step gently press the quartz wool using the rod
provided.
5. The last step of the sequence consists in introducing a sufficient quantity of quartz wool to form
the last required layer, as shown in
Figure 46. Introduction of Quartz Wool as Last Layer of the Sequence
6. Delicately press the quartz wool using the rod provided.
48 EA IsoLink IRMS System for CNSOH Operating Manual
Figure 46.
Quartz Wool
Figure 45, ensuring
