Thermo Scientific EA IsoLink IRMS System Operating Manual page 89

Including the flash irms elemental analyzer
Table of Contents

Advertisement

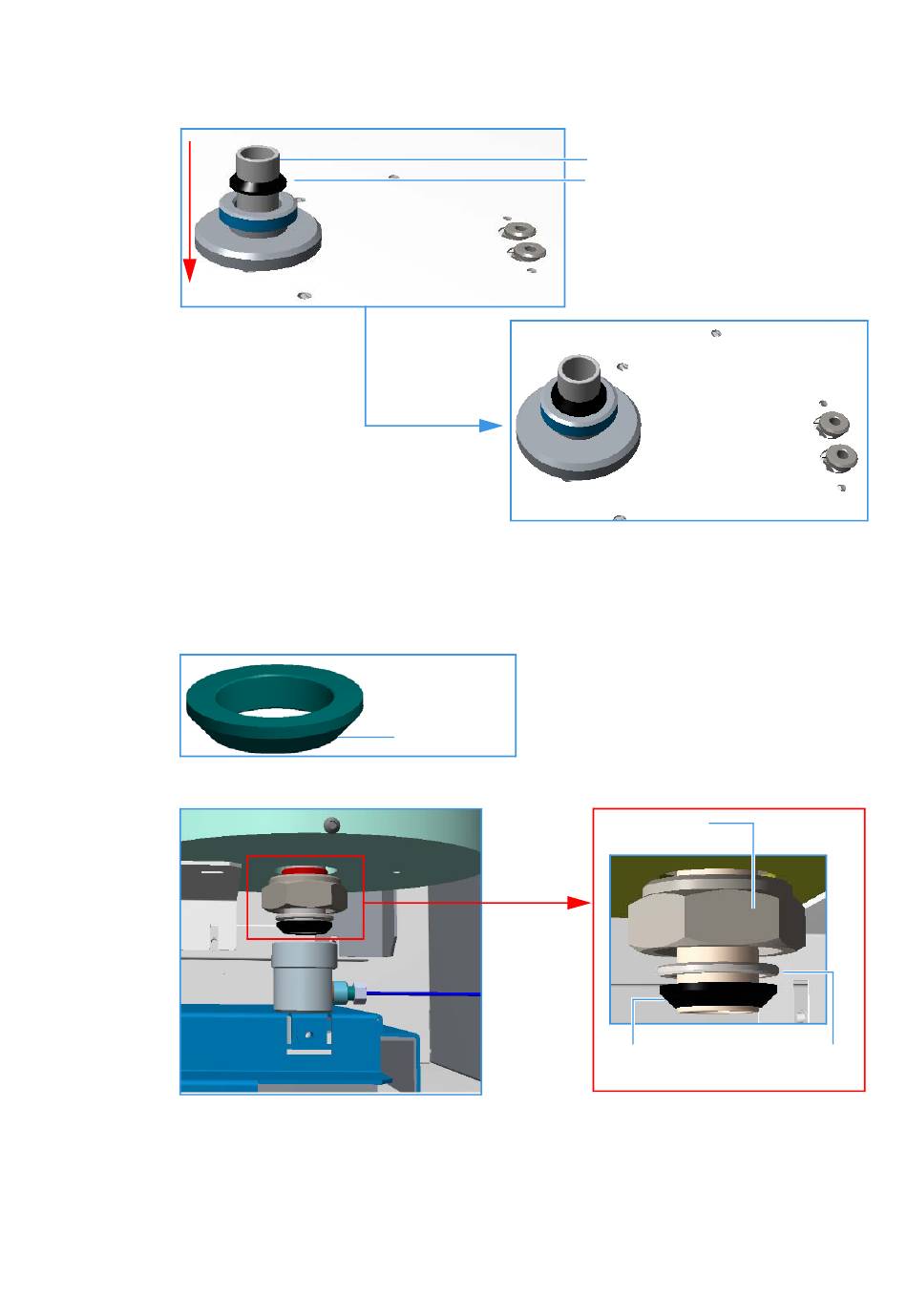

Figure 58. Introduction of the Combustion Reactor Into the Right Furnace (1)
2. Onto the bottom end of the reactor, which protrudes from the bottom of the furnaces, slide first
the reactor retaining nut, then the washer, and finally the conical O-ring, paying attention that the
conical section of the O-ring must be turned downwards. See
Figure 59. Conical O-ring
Figure 60. Introduction of the Combustion Reactor Into the Right Furnace (2)
3. Insert the reactor end into the coupling union located on the base of the furnace compartment.
See
Thermo Scientific
Figure
61.
Conical Section
EA IsoLink IRMS System for CNSOH Operating Manual
3
Installing Flash IRMS Elemental Analyzer
Installing the Reactors into the Furnaces
Reactor
Conical O-ring
Figure 59
and
Figure
Retaining Nut
Conical O-ring
60.
Washer
61
