3
Installing Flash IRMS Elemental Analyzer
Installing the Reactors into the Furnaces
on the crucible remover and inserting it into the glassy carbon tube. The distance from the top of
the crucible to the rim of the ceramic must be 270 mm. Here is the hottest zone of the furnace.
5. Drop the crucible into the reactor and introduce the insert on top of the glassy carbon tube.
6. To complete the operation manually screw the fixing nut of the autosampler. See

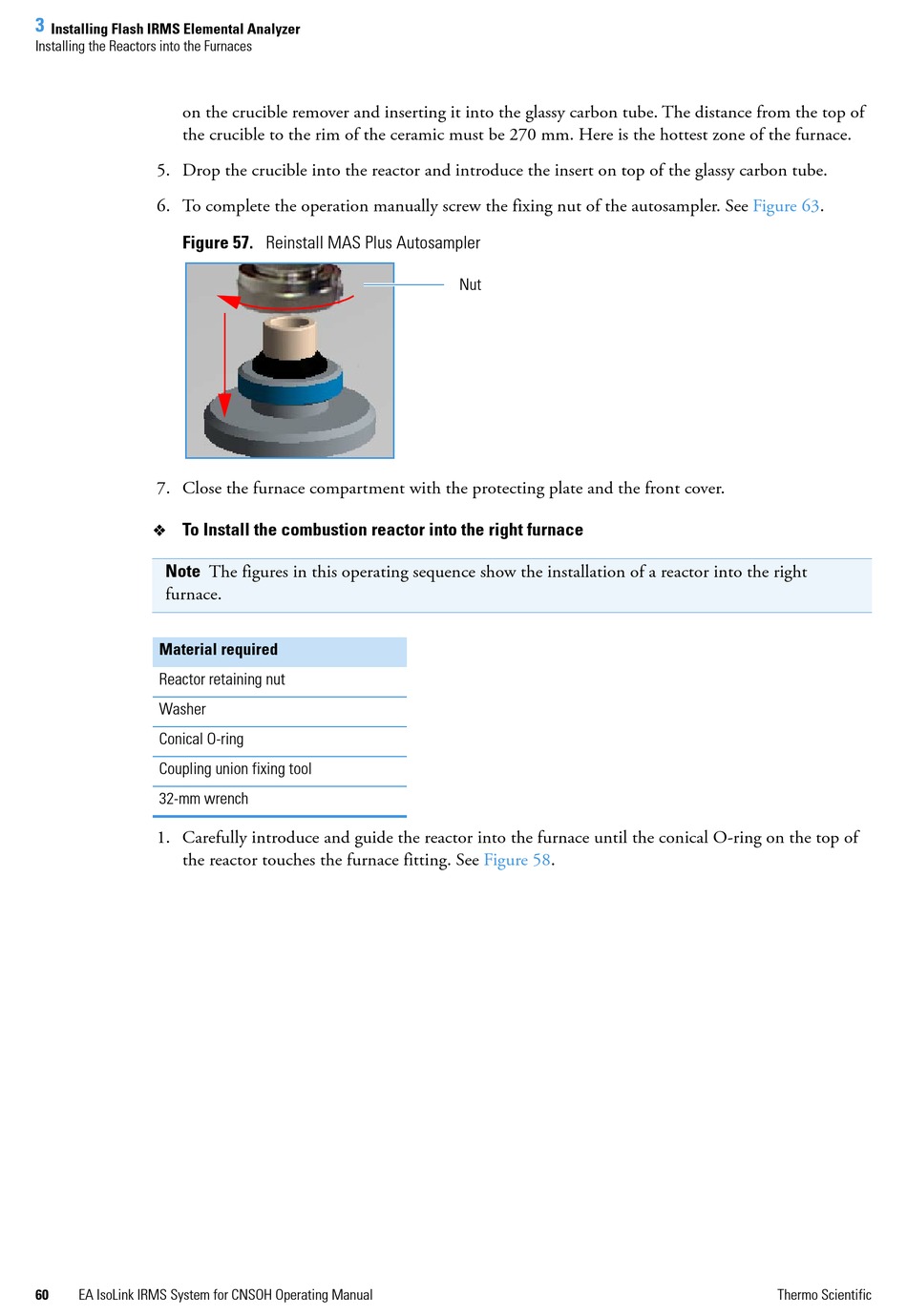

Figure 57. Reinstall MAS Plus Autosampler
7. Close the furnace compartment with the protecting plate and the front cover.
To Install the combustion reactor into the right furnace
Note The figures in this operating sequence show the installation of a reactor into the right
furnace.
Material required
Reactor retaining nut
Washer
Conical O-ring
Coupling union fixing tool
32-mm wrench
1. Carefully introduce and guide the reactor into the furnace until the conical O-ring on the top of
the reactor touches the furnace fitting. See
60
EA IsoLink IRMS System for CNSOH Operating Manual
Nut
Figure
58.
Figure
63.
Thermo Scientific
