Thermo Scientific EA IsoLink IRMS System Operating Manual page 57

Figure 29

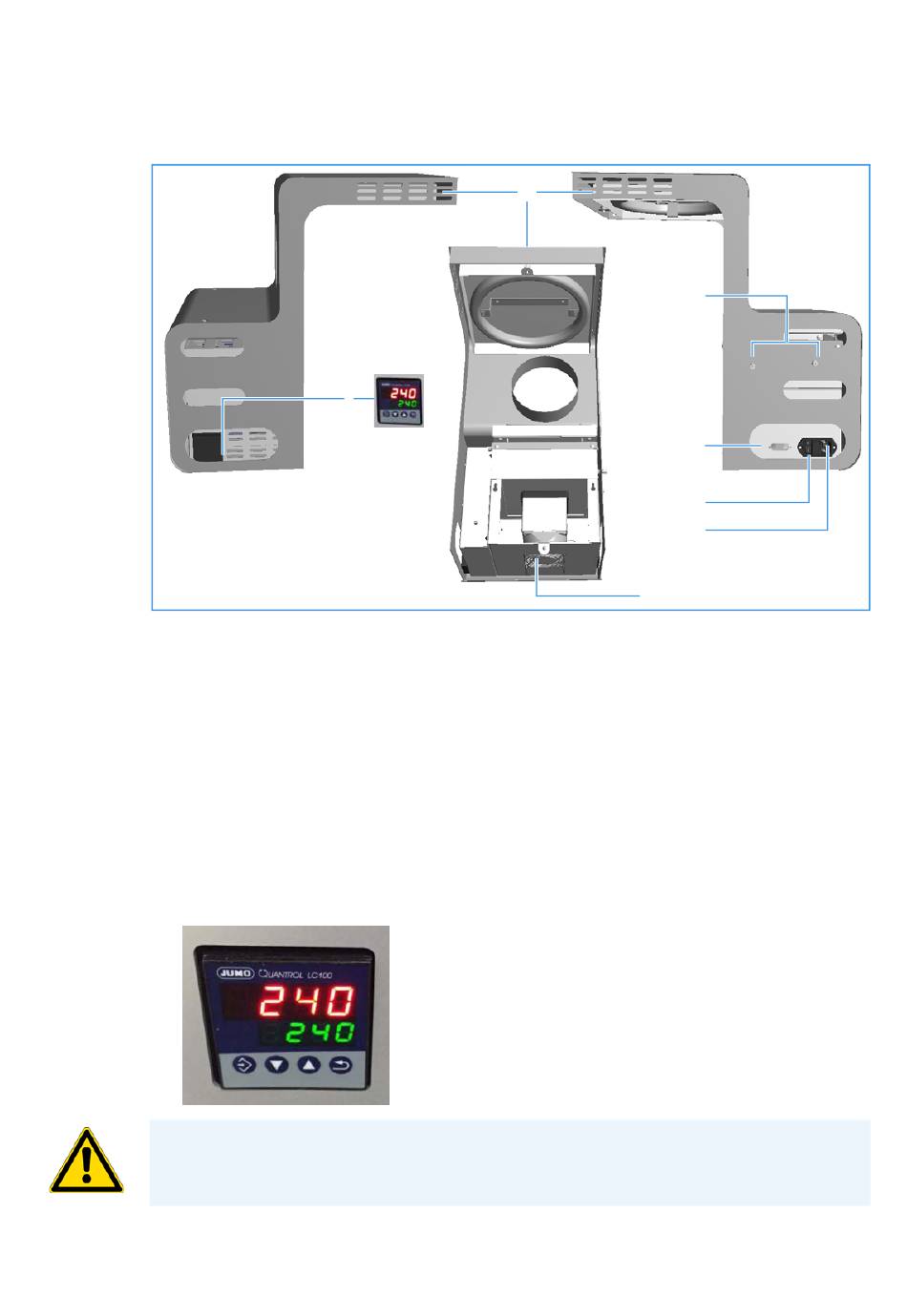

Figure 29. Components of the Ramped GC Oven
The Ramped GC Oven includes the following components. See the numbering in the images in
Figure 29.
1. AC Input Connector
2. Power Switch to power the Ramped GC Oven On/Off.
−
−
3. 9-pin connector for the control of the GC.
4. Compartment for the Thermo Scientific™ smartEA™ option.
5. Jumo controller for the manual temperature program setting.
ATTENTION The start and the stop of the temperature program is performed through Isodat
Software Suite by clicking GC Start/Stop function in the method.
Thermo Scientific
shows the components of the Ramped GC Oven.
5
Position I = instrument On
Position O = instrument Off
1
Getting Familiar with your EA IsoLink IRMS System for CNSOH
4
7
EA IsoLink IRMS System for CNSOH Operating Manual
Ramped GC Oven
6
3
2
1
29
