6
Using EA IsoLink IRMS System for CNSOH
Creating an EA Method for H+O Measurement

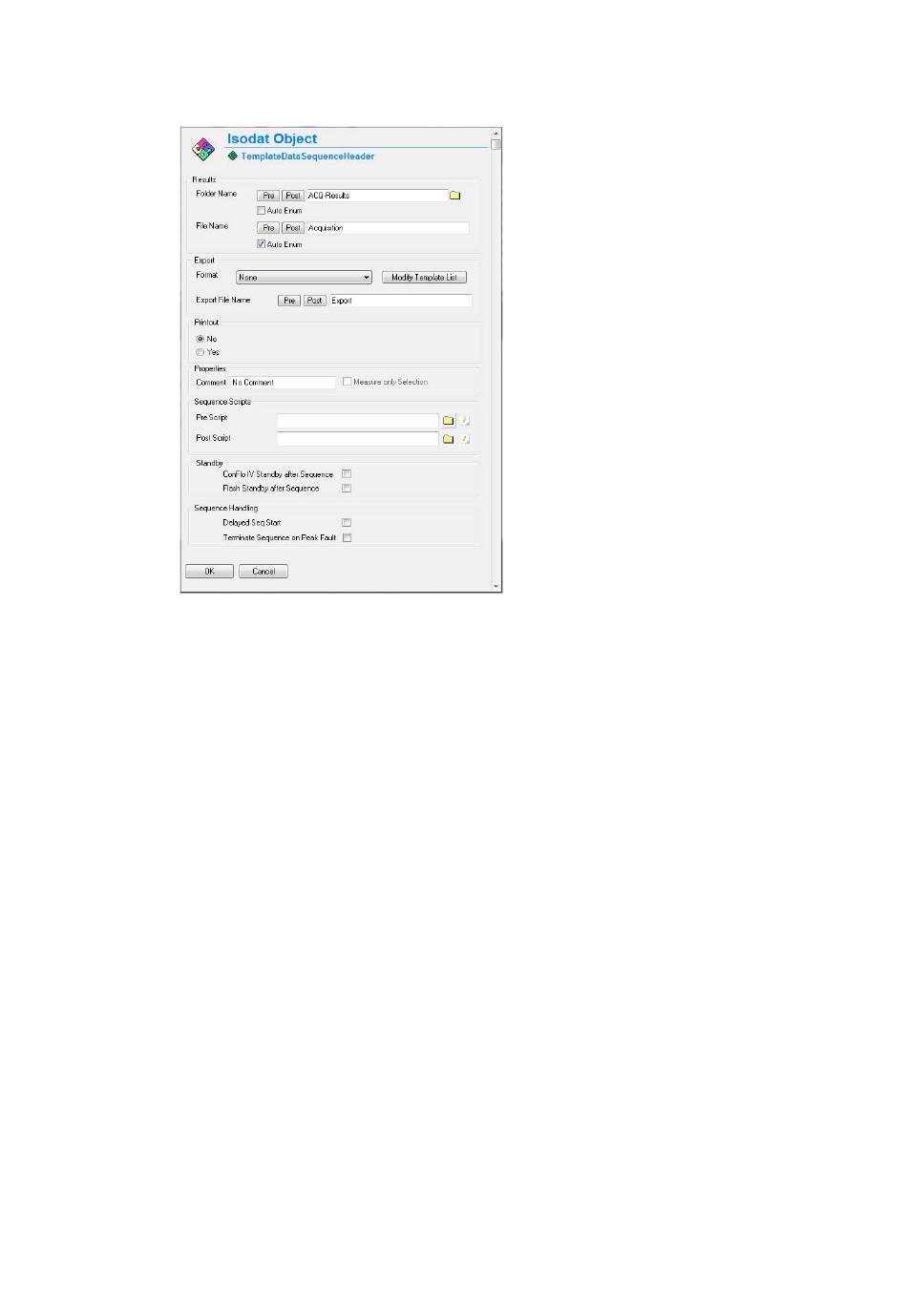

Figure 120. Defining Results Export and Printout Parameters
2. Select your destination Folder Name and File Name for the Results.
3. Select the Format for the export file.
4. Select Printout, for example, Yes.
5. Click OK.

Dual Measurement Results

The following events occur during the acquisition:
• Peak center procedure is performed.
• The H
• The H
• The sample is dropped into the reactor.
• The H
• The CO sample peak appears approximately 100 seconds after reaction start. See
• The CO reference gas pulse is activated after 340 seconds for20 seconds.
• The CO reference gas pulse is activated after 400 seconds for 20 seconds.
• The acquisition stops after 450 seconds.
• After finishing data acquisition, the printer creates a data output sheet as defined by the Result
Workshop template (*.irw) selected. The results are exported to a spreadsheet file if defined in
Figure
106 EA IsoLink IRMS System for CNSOH Operating Manual
reference gas pulse is activated after 20 seconds for 20 seconds.
2
reference gas pulse is activated after 60 seconds for 20 seconds.
2
sample peak appears approximately 15 seconds after reaction start. See
2
120.
Figure 121.
Figure 121.
