1
Getting Familiar with your EA IsoLink IRMS System for CNSOH

Ramped GC Oven

Ramped GC Oven
The Ramped GC Module for the temperature control of the chromatographic column.
Figure 28

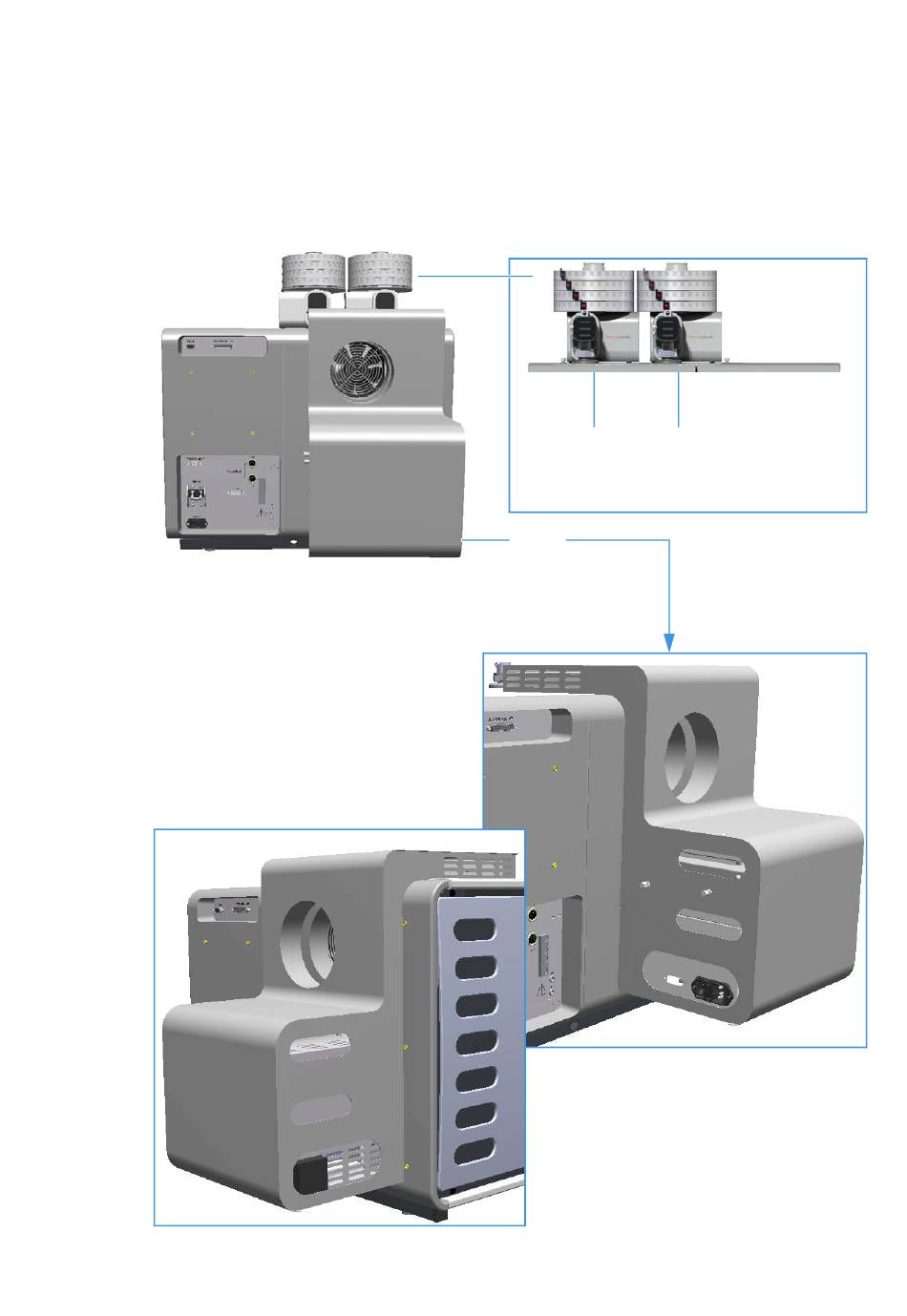

Figure 28. Ramped GC Oven
Left Side View
28 EA IsoLink IRMS System for CNSOH Operating Manual
shows the Ramped GC Oven installed on the back of the Flash IRMS EA.
MAS Plus on the MAS Plus on the
Left Channel for OH Right Channel for NCS
Determinations Determinations
Ramped
GC Oven
Right Side View
Thermo Scientific
