Identifying DIMMs

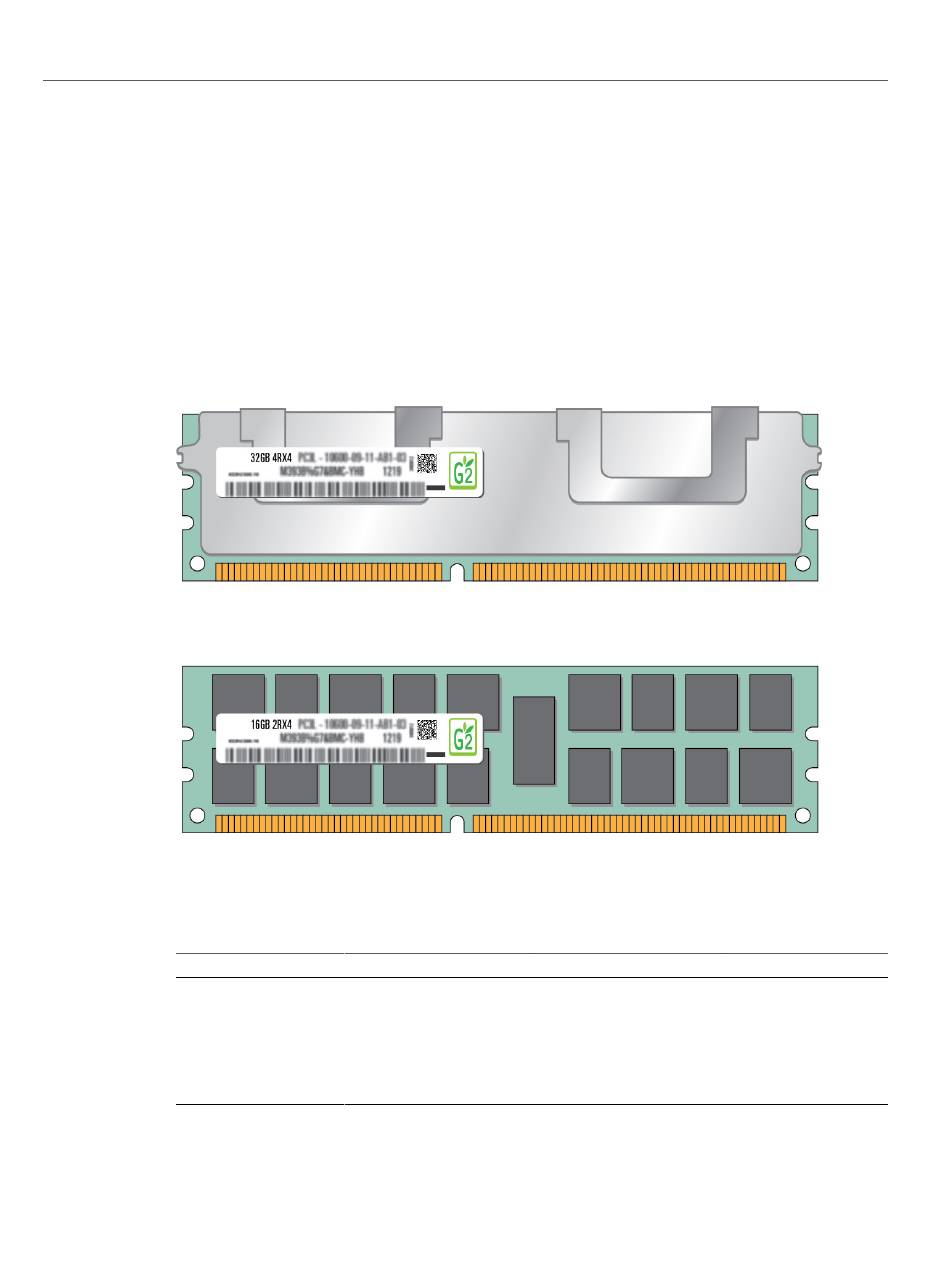

Each DIMM is affixed with an identifying label. The first four characters on the label describe
the DIMM memory capacity; the second four characters describe the rank classification.
Use these labels to identify the DIMMs installed in the server, to verify that any replacement
DIMMs are compatible, or to confirm that upgrade DIMMs may be installed in a supported
configuration.
As of System Firmware version 9.10.3, the following DIMM configurations are supported.
DIMM Capacity DRAM Density
16 Gbyte 4 Gbit
32 Gbyte 4 Gbit
32 Gbyte 8 Gbit
64 Gbyte 8 Gbit
128 Gbyte 16 Gbit
Understanding DIMM Configurations
Rank Classification
Dual-rank x4
Quad-rank x4
Dual-rank x4
Quad-rank x4
Quad-rank x4
Label
2Rx4
4Rx4
2Rx4
4Rx4
2S2Rx4
Servicing DIMMs 71
