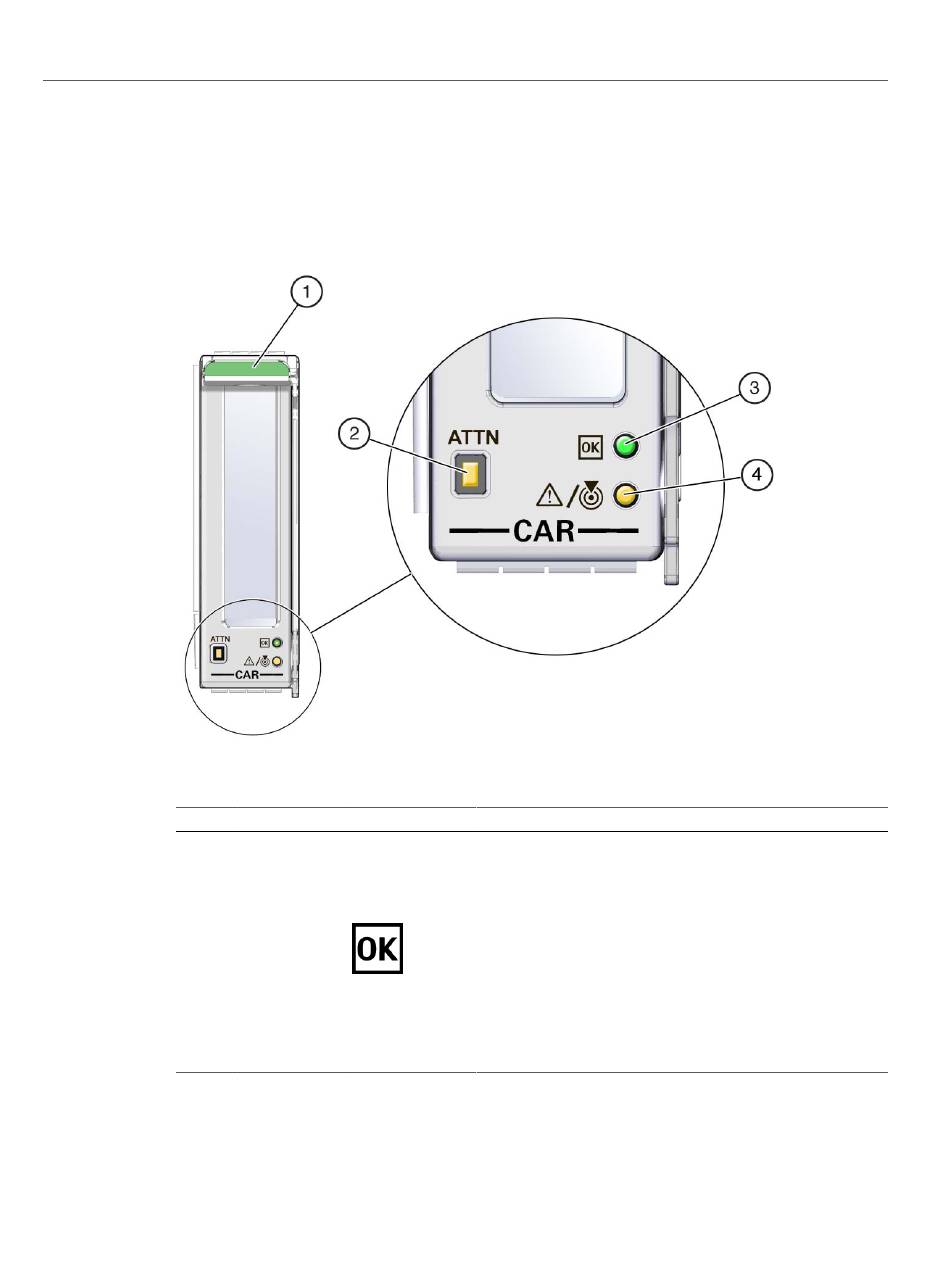

PCIe Carrier Handle and LEDs

No.
1
2
3
Button/LED Icon
Attention ATTN
Required
button
OK (green)
Description
Card carrier handle.
Press this button to bring the PCIe card offline.
Press this button again to bring the PCIe card online.
Indicates the following conditions:
■ Off – The server is powered off, or the PCIe card is not
operating. You can remove the PCIe card, or install a new card.
■ On – The PCIe card is connected and online. Do not insert or
remove the card.
■ Blinking – The PCIe card is powering up or powering down.
Do not insert or remove the card.
