Chapter 2. Initial Setup
2.3
Adding the Sentinel to the Communications Port (cont.)
If PanaView found the meter, a window will pop up and inform the user which Node ID the meter is set to. The operator
can select to use the existing Node ID or a different Node ID (see Figure 32 below).
Note:
The Node ID can be changed later on by going to the meter properties.
After communication has been established, the Node ID can be set to any "master" Node ID. A "master" Node ID is an
integer which is a multiple of 16.
Note:
A "slave" Node ID is all the numbers between two consecutive masters. However the term "slave" does not
apply to the Sentinel.
If "I wish to use a different Node ID" is selected, the window in Figure 29 on page xlvi appears, and the user must then enter
the Node ID number in the
After the Node ID is entered in the
network.
48

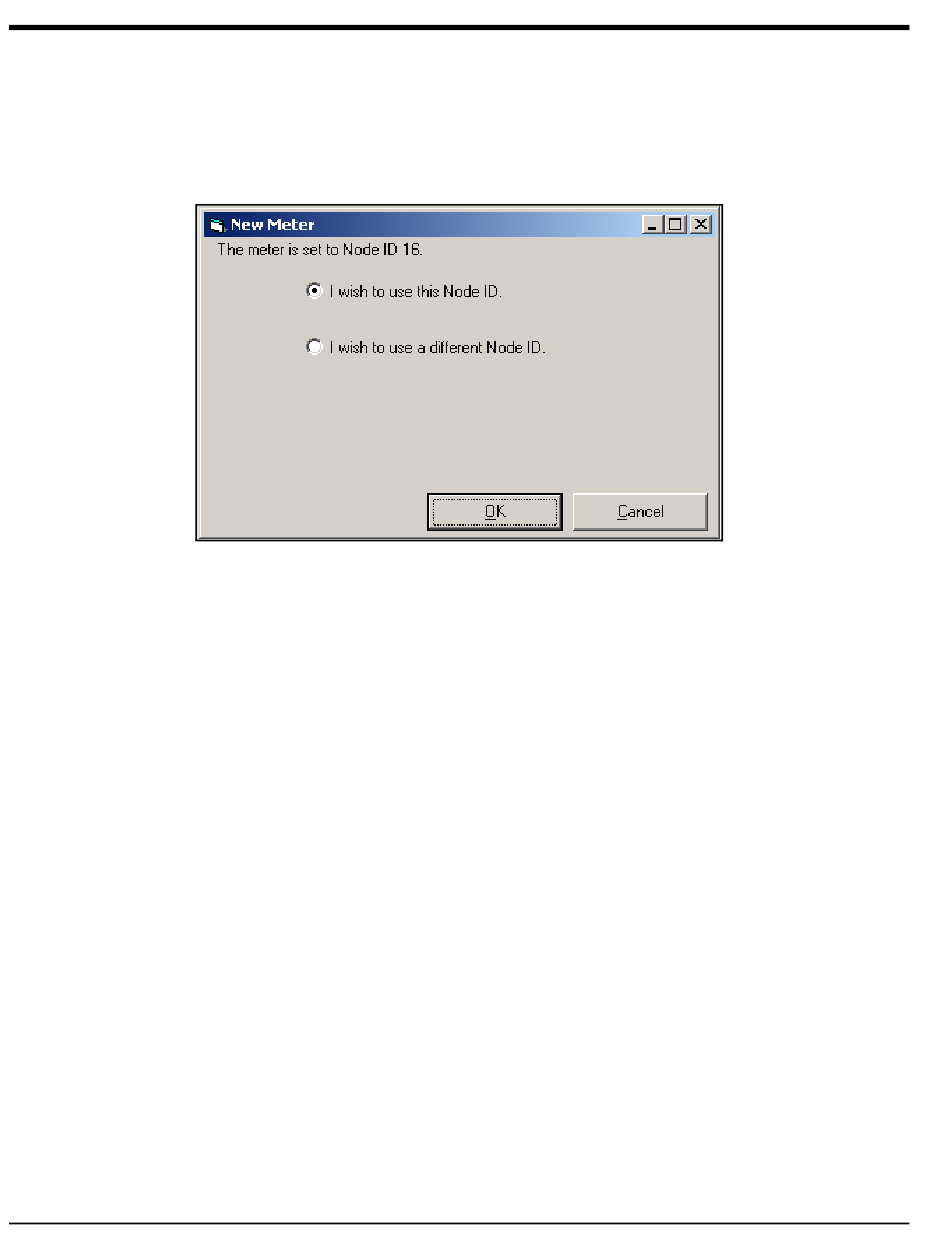

Figure 8: Selecting the Node ID
ID
entry.
Add Meter
window
ID
OK
box, click on the
button to add the meter to the PanaView
Sentinel™ User's Manual
