Chapter 3. Operation
3.8
Calibrating the Sensors
ADC Configuration
Use the PanaView
complete the following steps:
1.
Make sure the system is connected to your computer, the system and computer are turned ON, and PanaView is
up and running.
2.
Under File open the
3.
Click on the + sign before each level to open it.
4.
Under Unassigned I/O, right click on
Figure 57 below).
5.
When a display similar to that shown in Figure 58 below appears, make whatever selections and settings are
appropriate under both displays (
the list of selections.
6.
To calibrate a second Sensor card, repeat the above process with the second

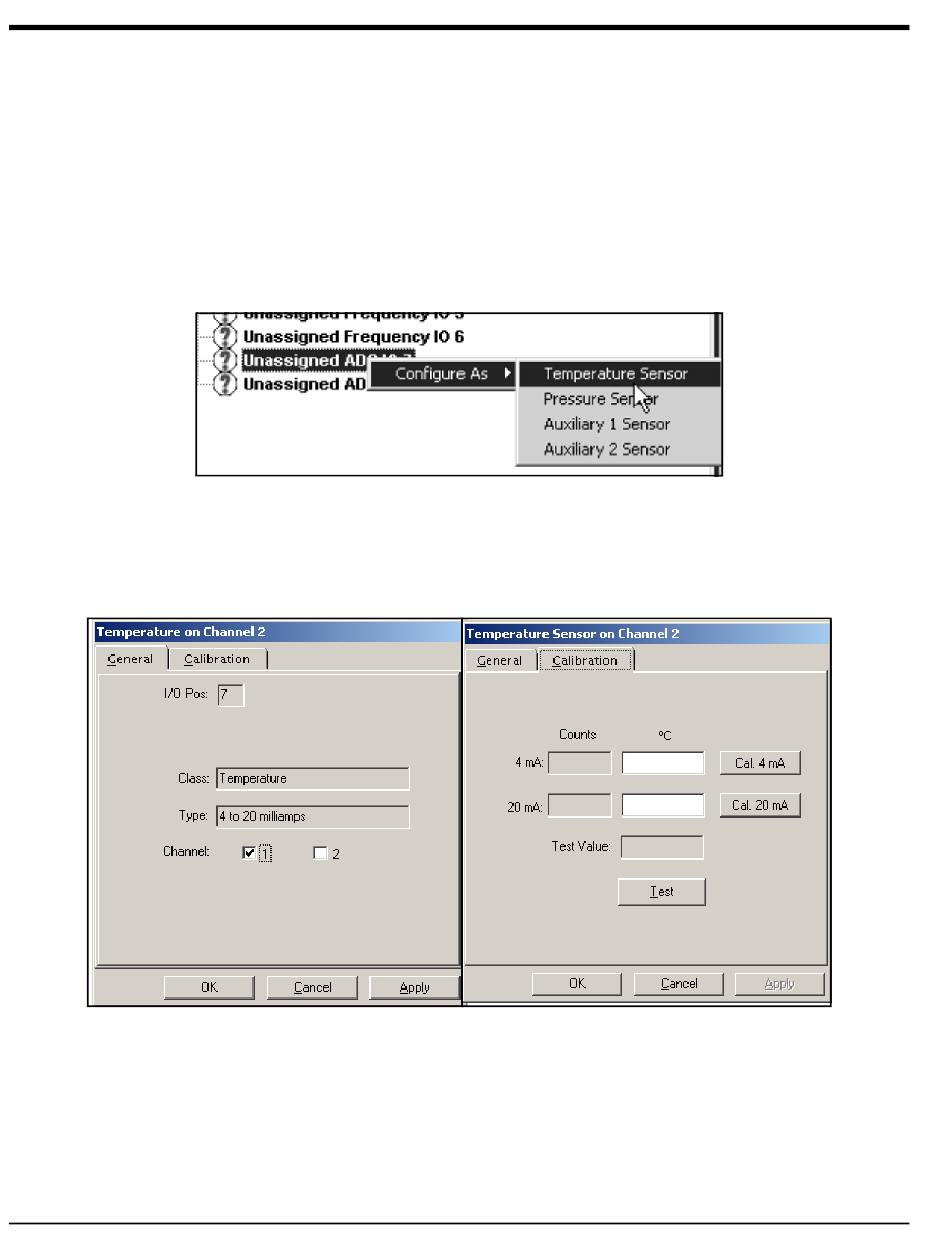

Figure 17: PanaView Temperature Assignments (two separate displays)
76
menu to calibrate a Sensor option card. To access these menu options,
New Meter Browser
.
Unassigned ADC IO 7
Figure 16: Accessing the Sensor Configuration
General
and
and select the desired configuration option (see
Calibration
). Then, click on
OK
Apply
or
and the display returns to
Unassigned ADC IO
Sentinel™ User's Manual
option.
