Chapter 6. Transducer Replacement
6.4.1
Removing the Old Transducer from a Pressurized Pipe (cont.)
4.
Thread the insertion mechanism onto the meter body holder, then connect a hydraulic pump to the insertion
mechanism (see Figure 80 and Figure 81 below).
108

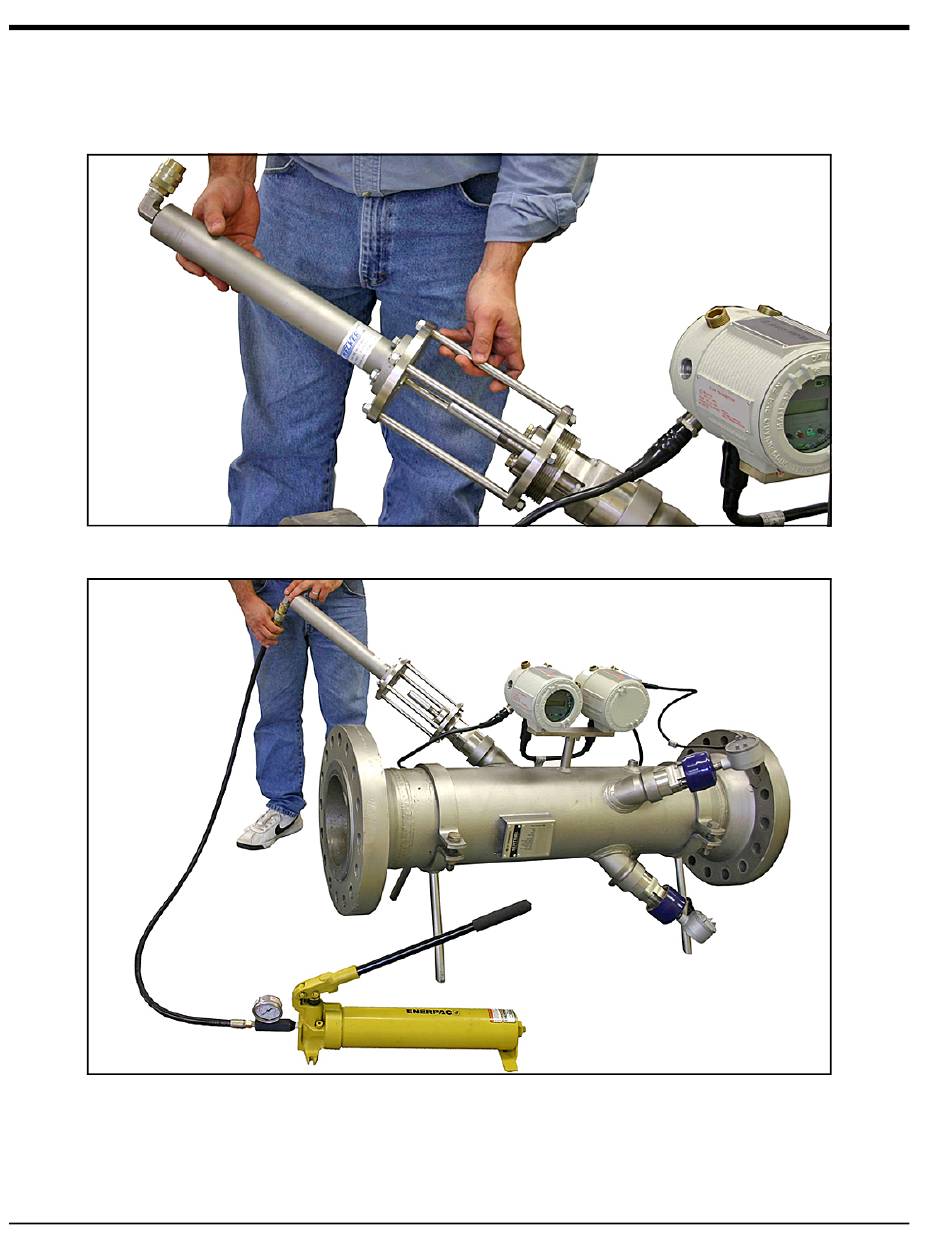

Figure 7: Installing the Insertion Mechanism
Figure 8: Connecting the Hydraulic Pump
Sentinel™ User's Manual
