Chapter 1.
Installation
1.1

Introduction

The Panametrics Sentinel, shown in Figure 1 below, is a flow measurement system that includes a multi-path
ultrasonic flowmeter, associated upstream piping, and a flow conditioner. The entire system is shipped fully
assembled and configured. The system was designed specifically for the natural gas custody transfer industry and
meets or exceeds all requirements of AGA Report No. 9.
1.2

Advantages

The Sentinel Flow Measurement System features numerous unique advantages:
• High turndown ratio
• Low sensitivity to many upstream flow disturbances
• Capability of bi-directional flow measurement with equal accuracy
• Minimal maintenance
• Transducer replacement without the need for pipe shutdown or recalibration
Sentinel™ User's Manual

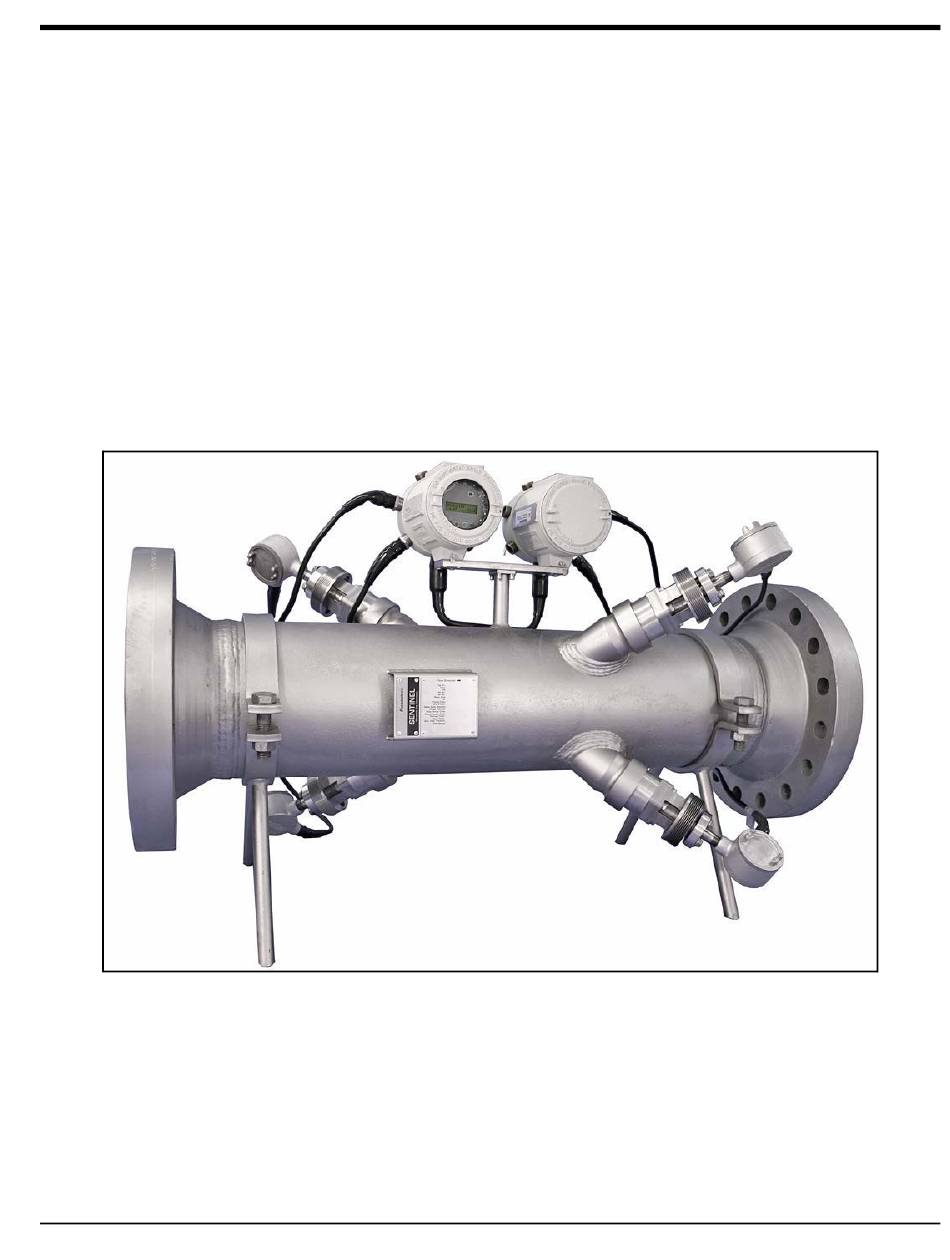

Figure 1: Sentinel Flow Measurement System

Chapter 1. Installation

1
