Chapter 1: Installation

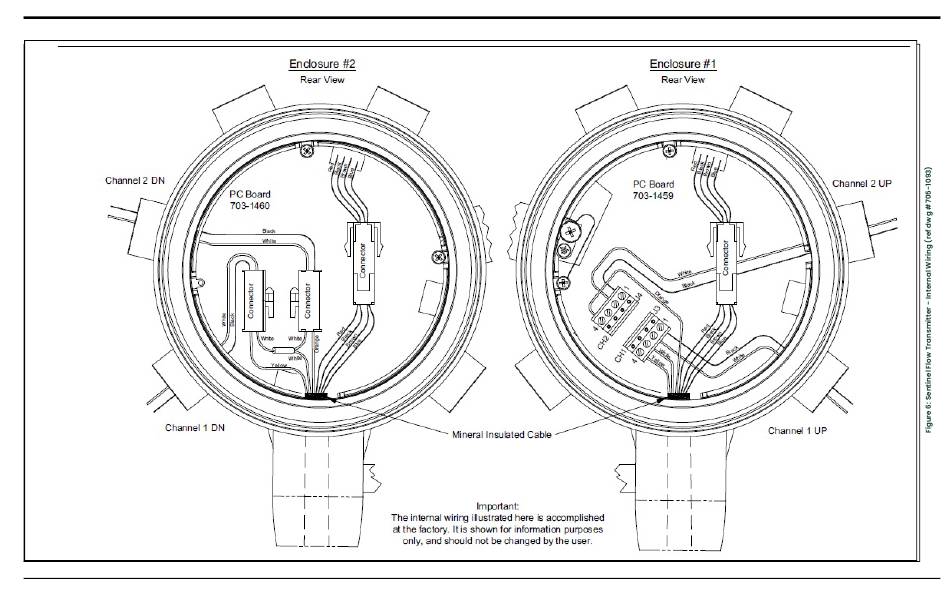

Enclosure #2
Enclosure #1
Rear View
Rear View
Channel 2 DN
PC Board
Channel 2 UP
PC Board
703-1459
703-1460
Channel 1 DN
Channel 1 UP
Mineral Insulated Cable
Important:
The internal wiring illustrated here is accomplished
at the factory. It is shown for information purposes
only, and should not be changed by the user.
Sentinel™ User's Manual
