For compliance with the European Union's Low Voltage
NOTE:
Directive, this unit requires an external power disconnect
device such as a switch or circuit breaker. The disconnect
device must be marked as such, clearly visible, directly
accessible and located within 1.8 m (6 ft) of the meter.
Sentinel™ User's Manual
Nameplate
Conduit Hole, 7pl
Mounting Boss

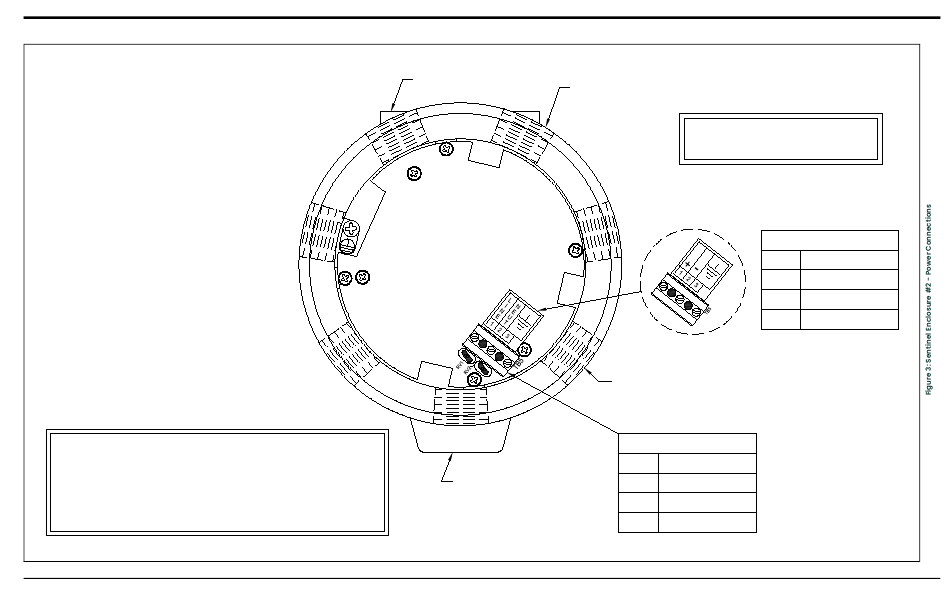

NOTE: Enclosure #2 is shown from
the rear with the rear cover removed.
DC POWER INPUT
Pin #
1
2
3
Power Cable Inlet
AC POWER INPUT
Pin #
Description
1
Line Power
2
Line Neutral
3
Earth Ground
Chapter 1: Installation
Description
Line Positive
Line Negative
No Connection
