Removing the Old Transducer from a Pressurized Pipe
To remove an existing transducer from a pressurized pipe, complete the following steps:
1.
Remove the cover from the T11 transducer conduit box, disconnect the BNC connector from the transducer, and
remove the conduit box.
2.
Apply anti-seize lubricant to the transducer thread and hand-tighten the transducer pusher onto the transducer
until it is firmly in place (see Figure 78 below).
3.
Apply anti-seize lubricant to the insertion mechanism threads (see Figure 79 below).
Sentinel™ User's Manual
Pusher

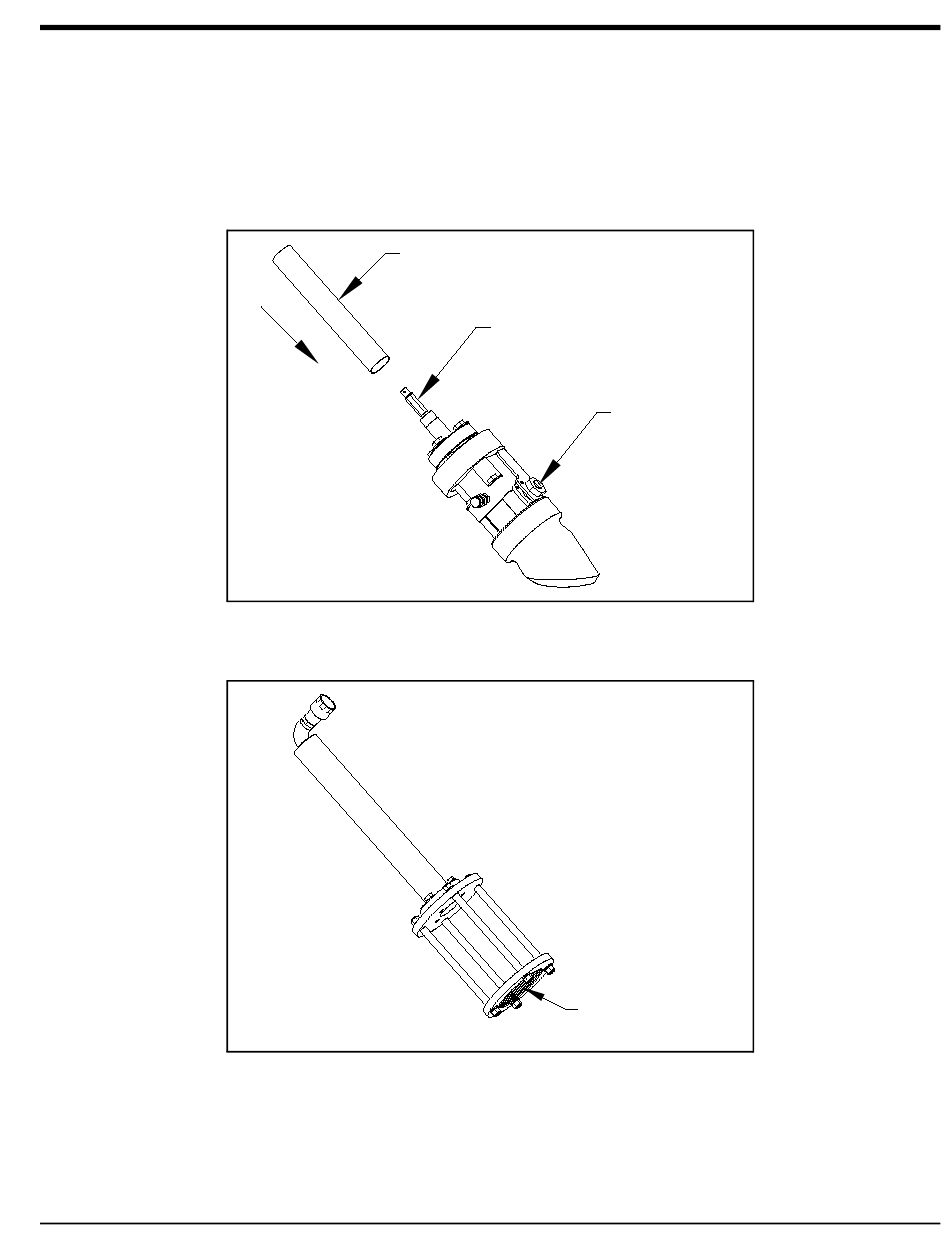

Figure 5: Transducer Pusher Installation
Figure 6: Insertion Mechanism - Anti-seize Application
T11 Transducer
Ball Valve
(open)
Apply antiseize
to threads here.
Chapter 6. Transducer Replacement
