Chapter 3. Operation
3.12.1
Preparing the Electronics (cont.)
5.
Use a small screwdriver to move the top (#8) switch to the ON (left) position (see Figure 66 below).
6.
If the system is not already connected to a PC or laptop computer, use the RS232 (or RS485) terminal on the rear
of the electronics package to make the connection.
7.
Power up the electronics.

3.12.2 Using PanaView to Clear the Totalizers

Please be aware of the following:
• Only the PanaView Meter Browser window can be used to reset the totalizers (see Figure 67 on page lxxxvii).
• Each channel has its own totalizer:
Channel 1 (Path 1)
Channel 2 (Path 2)
Average (average of Paths 1 & 2)
• Totalizers are reset under the metric objects:
+ActMetTot
–ActMetTot
+NrmMetTot
–NrmMetTot
• Resetting the metric totalizers will reset the English totalizers automatically.
86
ON
OFF

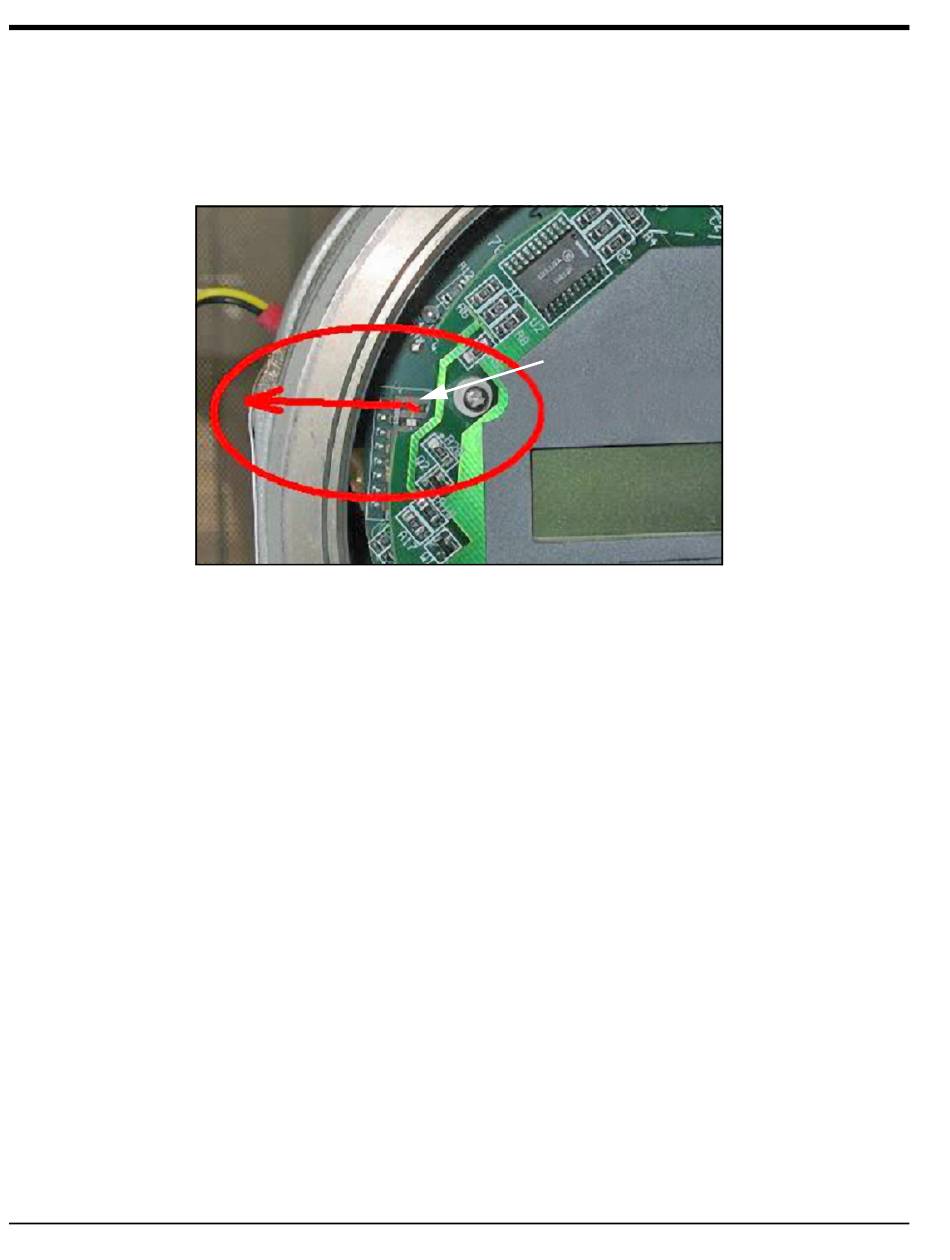

Figure 25: Moving DIP Switch #8 to ON
DIP Switch #8
Sentinel™ User's Manual
