Panametrics Sentinel LNG User Manual

Ultrasonic flowmeter for liquefied natural gas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Flow
Sentinel LNG

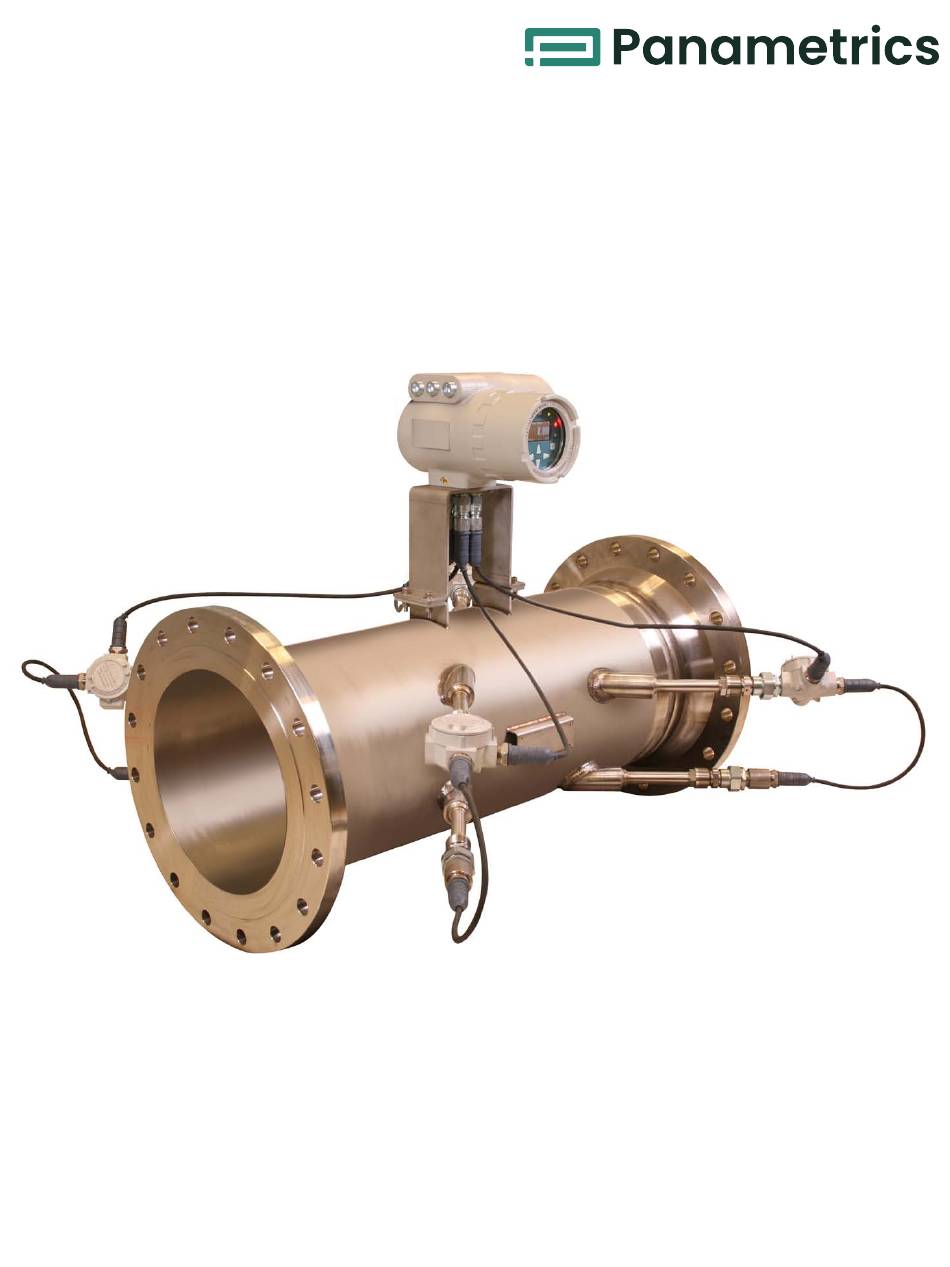

Ultrasonic Flowmeter for Liquefied Natural Gas
User's Manual
910-286 B
panametrics.com
August 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentinel LNG and is the answer not in the manual?

Questions and answers

Related Manuals for Panametrics Sentinel LNG

Summary of Contents for Panametrics Sentinel LNG

  • Page 1 Flow Sentinel LNG Ultrasonic Flowmeter for Liquefied Natural Gas User’s Manual 910-286 B panametrics.com August 2021...
  • Page 3 Flow Sentinel LNG Ultrasonic Flowmeter for Liquefied Natural Gas User’s Manual 910-286 B August 2021 panametrics.com Copyright 2021 Baker Hughes company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third-party product and company names are trademarks of their respective...
  • Page 4 [no content intended for this page]...
  • Page 5 Make sure that operators and maintenance personnel have all safety equipment applicable to the auxiliary equipment. Examples include safety glasses, protective headgear, safety shoes, etc. Unauthorized Operation Make sure that unauthorized personnel cannot gain access to the operation of the equipment. Sentinel LNG User’s Manual...
  • Page 6 Preface Sentinel LNG User’s Manual...

  • Page 7: Table Of Contents

    3.5.3 Set Security....................42 Sentinel LNG User’s Manual...
  • Page 8 5.3.2 Adding the Sentinel LNG to the Communications Port ....... .
  • Page 9 7.11.1 HART Engineering Units..................184 Sentinel LNG User’s Manual...
  • Page 10 8.1.1 Updating Sentinel LNG Instrument Software ........
  • Page 11 Diagnostic Parameters ..................226 Sentinel LNG User’s Manual...
  • Page 12 Contents Sentinel LNG User’s Manual...

  • Page 13: Chapter 1. Features And Capabilities

    • Transducer replacement without the need for pipe shutdown or recalibration • Removable/replaceable transducers 1.1.3 Meter Components Figure 4 on page 13 shows the complete Sentinel LNG system and each of the items is described in Table 1 and Table 2 below. Component Description Meter Body Measurement section of a Sentinel LNG System.
  • Page 14 Transducer Holder Parts Stainless Steel 316/316L (A276) T11 Transducers Titanium CP Gr. 2 (B348/B381) or Stainless Steel 316/316L (A276) * A350 LF2 and A333 Gr. 6 are used for low temperature service and are specified by the customer. Sentinel LNG User’s Manual...

  • Page 15: Name And Specification Plate

    Name and Specification Plate The location of the Sentinel LNG specification plate is shown in Figure 4 on page 13. Figure 1 below shows a blank plate. The specifications can be filled in by the user, for quick reference while using the manual.

  • Page 16: Transit-Time Method

    The transit time technique uses a pair of transducers, with each transducer alternately sending and receiving coded ultrasonic signals through the fluid. Figure 2 below shows the paths used in the Sentinel LNG. When the fluid is flowing, signal transit time in the downstream direction is shorter than in the upstream direction; the difference between these transit times is proportional to the flow velocity.

  • Page 17: Multipath Design

    Flow Ranges Typical flow rates for 0.5 m (19.6 in) per second and 10 m (393 in) per second are listed below. The Sentinel LNG is a full bore meter and the flow range is a function of the pipe and not the meter itself.

  • Page 18: Meter Body

    1.3.2.2 Meter Body Materials • Stainless steel A182, Gr 304/304L • Stainless steel A182, Gr 316/316L Others on request. 1.3.2.3 Flow Cells 4” (100 mm) to 24” (600 mm) Others on request Figure 3: Flowcell Assembly Sentinel LNG User’s Manual...
  • Page 19 35.4 1339 1016 36.8 37.84 1348 1016 38.5 1770 1067 37.84 1056 39.34 1527 1016 39.9 2076 1118 1015 41.25 1424 1168 1048 42.75 2120 1219 1086 41.25 2819 1270 1105 1280 44.5 1990 1219 1133 Sentinel LNG User’s Manual...

  • Page 20: Electronics

    • 100 - 240 VAC 12 - 32 VDC • 1.3.3.6 Power Consumption < 20 Watts 1.3.3.7 Display High contrast 128 x 64 pixel graphical display with LED illumination. 1.3.3.8 Outputs • Two frequency/pulse isolated outputs Sentinel LNG User’s Manual...

  • Page 21: Ordering Information

    97/23/EC Pressure Equipment Directive 1.3.4 Ordering Information 1.3.4.1 Sentinel Electronics SEN898 Table 5 below shows how the Sentinel LNG Electronics SEN898 part numbers are configured from the options specified. SEN898 CATEGORY OPTIONS = 100 to 240 VAC operating voltage Power = 12 to 32 VDC operating voltage = One 100 Ohm RTD input;...
  • Page 22 L = Local mounting on SEN-LNG Flowcell Electronics R = Remote mounting from SEN-LNG Flowcell Mounting S = Stand-alone unit w/ remote mounting; cable length selectable (max. 300 ft, 91.4 m) = None Special Requirements = Special Sentinel LNG User’s Manual...
  • Page 23 Chapter 1. Features and Capabilities 1.3.4.2 Sentinel LNG Liquid Custody Transfer Flowmeter Table 6 below shows how the Sentinel LNG Flow Section part numbers are configured from the options specified. SEN-LNG CATEGORY OPTIONS = 4” = 10” = 14” = 18”...

  • Page 24: Disclaimer

    Make sure the front and side covers, along with their O-ring seals, are installed on the transmitter, and the set screws tightened before applying power in a hazardous environment. WARNING! Never remove the flowmeter covers in a hazardous environment while the line power is on. Sentinel LNG User’s Manual...
  • Page 25 DUAL C (BNC JACK) C (MCX CABLE - DN3) DUAL D (BNC PLUG) 442-1248-06 (ITEM 395) D (MCX CABLE - DN2) 442-1248-08 (ITEM 397) SINGLE D (BNC PLUG) DUAL D (BNC JACK) D (MCX CABLE - DN4) Sentinel LNG User’s Manual...
  • Page 26 Chapter 1: Features and Capabilities Sentinel LNG User’s Manual...

  • Page 27: Chapter 2. Installation

    This section provides general information with respect to the mechanical and electrical installation, and should be thoroughly reviewed before the system is installed. To ensure safe and reliable operation of the Sentinel LNG, the system must be installed in accordance with the guidelines established by Panametrics Sensing, as explained in this chapter.

  • Page 28: Mechanical Installation

    Flow Direction Sentinel Flowmeter Flow Conditioning Plate Ten-Diameter- Long Spoolpiece Five Diameters of Straight Pipe (minimum) Figure 5: Typical Sentinel LNG Installation, Uni-Directional Flow Flow Direction Sentinel Flowmeter Flow Conditioning Plate Flow Conditioning Five Diameters Plate of Straight Pipe (minimum)

  • Page 29: Installation Precautions

    Make sure the gasket is centered on the flange faces and does not protrude into the pipe. (Protrusion of the gasket into the pipe may cause flow profile disturbances.) • Make sure the Sentinel LNG is oriented with the flow transmitter in a vertical position at the top (see Figure 7 below). Figure 7: Lifting Strap Locations 2.3.3...

  • Page 30: Guidelines For Installing Pipe Insulation

    Maintain the integrity of any factory-applied vapor barrier jacketing on all pipe insulation, if applicable. Seal all joints and seams, protecting the insulation against puncture, tears or other damage. Sentinel LNG User’s Manual...

  • Page 31: Making Electrical Connections

    1 RTD Input Flow Volumetric Computer RS485/RS232 Modbus Flow Power RS232 Temperature Pressure RS485 Sentinel LNG Sentinel PanaView™ Meter Calibration, Data Collection, Instrument Interface Configuration, and Security Software Figure 9: Sentinel LNG Flow Measurement System Connections Sentinel LNG User’s Manual...

  • Page 32: Removing The Covers

    Cable Tie-Down Posts There are two cable tie-down posts provided in the Sentinel LNG (see Figure 11 below). These posts enable the user to insert a cable tie through them, and secure wiring coming into or out of the instrument. The posts rotate on the printed circuit board to provide ease-of-use.
  • Page 33 Chapter 2. Installation • Optional I/O Cable Tie-Down Post - Use this optional tie-down post to secure any other instrument I/O securely. Optional I/O Cable Power Cable Tie-Down Post Tie-Down Post Figure 11: Cable Tie-Down Posts Locations Sentinel LNG User’s Manual...

  • Page 34: Wiring The Line Power

    Ordering Information in Table 5 on page 10). The label on the side of the electronics enclosure lists the required line voltage and power rating. The fuse size is listed in Specifications in Chapter 1. Be sure to connect the Sentinel LNG to the specified line voltage only.
  • Page 35 Once the line power has been connected to the flow transmitter, replace the side cover, tighten the set screw using a 2.5 mm hex wrench, and proceed to the next section. L1 L2/N G Figure 13: Wiring the AC Line Power Figure 14: Wiring the DC Line Power Sentinel LNG User’s Manual...

  • Page 36: Wiring The Serial Port

    2.4.5 Wiring the Modbus Communications Line (Optional) The Sentinel LNG uses the RS485 interface with Modbus communications protocol for a maximum line distance up to 4,000 ft (1,200 m). The factory recommends using shielded 18-24 AWG (0.82 - 0.2 mm ) cable having a characteristic impedance of 120 ohms, with 120-ohm termination at each end of the communications line.

  • Page 37: Wiring The Alarm Relay

    ALARM MONITORING DEVICE Figure 16: Fail-Safe Operation It is recommended to use 12-24 AWG (3.3 - 0.2 mm ) for single conductor wiring, and 16-24 AWG (1.5 - 0.2 mm ) for two conductors per terminal. Sentinel LNG User’s Manual...

  • Page 38: Wiring The 4-20Ma Analog Inputs (Optional)

    The inputs may be used to process temperature, density and pressure signals. Note: To enter programming data during operation of the Sentinel LNG, it will be necessary to know which input is assigned to which process parameter. This information should be entered in Appendix C, Data Records.
  • Page 39 + IN Ain RTN – OUT +24V With Internal Power Supply Analog Input Transmitter Ain RTN Sensor – OUT + IN +24V Figure 17: Analog Input Wiring Diagram TB2/RTD1 –S Figure 18: 4-Wire RTD Input Wiring Diagram Sentinel LNG User’s Manual...
  • Page 40 Figure 19: Terminal Locations for 3 Analog Input Option Powered – Sentinel provides +24VDC – Transmitter for the Transmitter AIN3 AIN2 AIN1 AIN3 AIN2 AIN1 *You can wire to either RTN1 TB connection. Figure 20: Terminal Locations for Analog Transmitter Use Cases Sentinel LNG User’s Manual...
  • Page 41 4-Wire RTD 3-Wire RTD CURRENT SENSE RETURN CURRENT SENSE RETURN SENSE SENSE Jumper AIN2 AIN1 AIN2 AIN1 *You can wire to either RTN1 TB connection. Figure 22: Terminal Locations for 4-Wire and 3-Wire RTD Use Cases Sentinel LNG User’s Manual...

  • Page 42: Wiring The Frequency Output

    Freq 1/Totalizer 1 OUT F/T1– Freq 1/Totalizer 1 RTN F/T2+ Freq 2/Totalizer 2 OUT F/T2– Freq 2/Totalizer 2 RTN NET R (+) MODBUS–RTU RS232 (R)/RS485 (+) NET T (–) MODBUS–RTU RS232 (T)/RS485 (–) NET COM MODBUS–RTU Common Sentinel LNG User’s Manual...

  • Page 43: Wiring The 4-20 Ma Analog Output

    Monitor Terminal Load Board Aout – Connector – 24 Volt DC Power Supply Figure 24: Analog Output Passive Wiring 4/20 Flowmeter Aout + Monitor Terminal Load Board Aout – Connector Figure 25: Analog Output Active Wiring Sentinel LNG User’s Manual...
  • Page 44 If wiring of the unit has been completed, reinstall the wiring access cover on the enclosure and tighten the set screw. After the Sentinel LNG has been completely installed and wired, proceed to Chapter 3, Operation, to program the flowmeter.
  • Page 45 Chapter 2: Installation Front Display Wiring Access Cover Sentinel LNG User’s Manual...
  • Page 46 Chapter 2: Installation ALM2 RJ45 ALM1 Ain3 Ain2 Ain1 Sentinel LNG User’s Manual...
  • Page 47 ANALOG RETURN CURRENT RETURN AOUT- 4-20mA NEG TERMINAL RECEIVE / DATA+ SEE NOTES 1 & 3 SEE NOTES 1 & 3 COMMON POWERED OR UNPOWERED SEE NOTES 1 & 3 SOFTWARE SELECTABLE SEE NOTES 1 & 3 Sentinel LNG User’s Manual...
  • Page 48 CABLE, DUAL SEN898 ELECTRONICS TOP VIEW PORT B PORT C FLOW PCB PORT A PORT D CABLE, DUAL CABLE, DUAL CABLES FLOW JUNCTION BOX JUNCTION BOX XDCR XDCR CABLE, SINGLE XDCR CABLE, SINGLE XDCR FLOWCELL (FRONT VIEW) Sentinel LNG User’s Manual...

  • Page 49: Chapter 3. General Programming

    Chapter 3. General Programming Introduction The Sentinel LNG flow transmitter includes a User Program that provides access to the various programmable features of the instrument. This chapter describes step-by-step programming instructions using the internal keypad, shown in Figure 30 below.

  • Page 50: Indicator Lights

    Each of the keys can be selected using a hand-held magnet called a Magnetic Stylus, which is included with the meter. By touching the clear window at a key location, that key will be selected and will flash a red light to verify the contact. Figure 31: Magnetic Stylus Sentinel LNG User’s Manual...

  • Page 51: Program Menu Options

    Weight Factors - enter the appropriate weight parameter. To measure flow rate with the Sentinel LNG, activate the channel/path(s) and enter the transducer, pipe and fluid parameters. Appendix A includes a complete set of menu maps for the User Program, including Figure 231 on page 212 for the PROG menu.

  • Page 52: Unlocking And Locking

    Unlocking and Locking To prevent unauthorized tampering with either the display or the user program, the Sentinel LNG has multiple security codes. Once the security level has been set, one of these codes is required to change just the display (Display Lock), or the display and the user program (Full Lock).

  • Page 53: Locking The Sentinel Lng

    Press [ENT], and proceed to step 4 below. From the User Program: Press [ESC]. The Sentinel LNG enters the User Program. Press the [u] key until USER is bracketed. Press the [q] key until Set Security is highlighted. Press [ENT].

  • Page 54: Setting Security

    Press [ESC] to return to the User Program, or continue pressing [ESC] to return to the display screen. If you have chosen to fully lock the Sentinel LNG, the screen appears similar to Figure 33 below, with a solid lock in the upper right corner.

  • Page 55: Channel Programming

    Appendix C, Data Records. To access the Status submenu: Press [ESC]. The Sentinel LNG enters the User Program. Press the [u] key until PROG is bracketed in the top left corner and press [ENT]. Use the [p] and [q] keys to scroll to the desired channel and press [ENT]. The screen appears similar to Figure 34 below.

  • Page 56: Entering Fluid Data (Not Supported At This Time)

    If Off is chosen, no further choices are available. • If Single is chosen, the Sentinel LNG will select and automatically display the Kinematic Viscosity. To change the value, press [ENT]. Use the arrow keys to change the value (available in document #914-004, Soundspeeds and Pipe Size Data), and press [ENT].
  • Page 57 Scroll to the Signal option and press [ENT]. The prompt requests the Zero Cutoff. Near “zero” flow, the Sentinel LNG may have fluctuating readings due to small offsets (caused by factors such as thermal drift in the fluid). The zero cutoff causes velocity measurements less than the cutoff to be reported as zero.

  • Page 58: Entering Error Limits

    The meter now requests the Min Amplitude, the lower limit for the amplitude discriminator. The discriminator measures the size of the transducer signal sent from the Sentinel LNG. If the signal falls outside these limits, the E5:AMPLITUDE error message appears. Press [ENT]. Use the arrow keys to change the value and press [ENT].

  • Page 59: Composite Programming

    The menu now varies, depending on the selections in steps 6 and 7. • If Preprogrammed Fluids has been selected, the Sentinel LNG supplies a list of preprogrammed fluids. As shown in Table 1 below, the list varies, depending on whether you have selected normal or tracking window fluid types. In either case, scroll to the desired fluid and press [ENT].

  • Page 60: Entering Signal Parameters

    [ENT] twice to select it (once to enter and again to confirm the selection). To enter the Signal submenu: Press [ESC]. The Sentinel LNG enters the User Program. Press the [u] key until PROG is bracketed and press [ENT].

  • Page 61: Setting Up Api

    11. To change an observed condition, select the option, and press [ENT]. 12. Using the arrow keys, change the appropriate digits, and press [ENT]. 13. Change the other observed conditions if needed, and press [ESC] four times to return to the PROG menu. Sentinel LNG User’s Manual...

  • Page 62: Configuration

    To reset the date and/or time, from the CONFIG menu, select Date/Time, and press [ENT]. Press [ENT] again to edit the text. Use the arrow keys to select and change numbers in the date/time format. Press [ENT] to accept the change. Sentinel LNG User’s Manual...

  • Page 63: Inputs/Outputs

    [ENT] twice to select it (once to enter and again to confirm the selection). To enter the IO Menu: Press [ESC]. The Sentinel LNG enters the User Program. Press the [>] key until IO is bracketed and press [ENT]. Use the [^] and [V] keys to scroll to wanted IO option 3.9.1...
  • Page 64 Note: Make sure the meter is not going to be outputting more than one pulse during this time, as this could lead to missed pulses. Polarity - Choose the Negative or Positive edge of the pulse. Sentinel LNG User’s Manual...

  • Page 65: Alarms

    No Latch - The alarm is reset when the error condition clears. Clear Latch - Changes the latched state. This will turn off the User Intervene Indicator if the meter is no longer in error. Sentinel LNG User’s Manual...

  • Page 66: Analog Inputs (Additional Option)

    Set the input to 4mA, for the Low end. • Select Trim Base. • Select Yes. • Set the input to 20mA, for the High end. • Select Trim Span. • Select Yes. • Calibration is complete. Sentinel LNG User’s Manual...

  • Page 67: Rtd (Additional Option)

    Make sure the RTD is connected to the terminal board correctly, according to Figure 28 on page 35. Panametrics Sensing's calibration process involves using a temperature bath and an iRTD (reference). The iRTD is connected to iRTD Win Software to read the values.

  • Page 68: User Security

    To change the Tag, select the given name, and press [ENT]. Use the arrow keys to change the letters to the new name Tag. When complete, press [ENT], and the screen returns to the FACTORY menu. Sentinel LNG User’s Manual...

  • Page 69: Chapter 4. Advanced Programming

    Weight Factors - enter the appropriate weight parameter. To measure flow rate with the Sentinel LNG, activate the channel/path(s) and enter the transducer, pipe and fluid parameters. Appendix A includes a complete set of menu maps for the User Program, including Figure 231 on page 212 for the PROG menu.

  • Page 70: Wetted Transducers

    To change the frequency select Frequency, scroll to the desired frequency value and press Enter. To change the Time Delay, select Tw... and press Enter. Using the arrow keys, change the time delay as needed, then press Enter. Sentinel LNG User’s Manual...

  • Page 71: Entering Path Data

    [ENT] twice to select it (once to enter and again to confirm the selection). To access the Path submenu: Press [ESC]. The Sentinel LNG enters the User Program. Press the [] key until PROG is bracketed and press [ENT]. Use the [] and [] keys to scroll to the desired Channel and press [ENT].

  • Page 72: Entering The Meter Correction (K) Factor

    Entering Signal Parameters (cont.) The next prompt requests the Zero Cutoff. Near “zero” flow, the Sentinel LNG may have fluctuating readings due to small offsets (caused by factors such as thermal drift in the fluid). The zero cutoff causes velocity measurements less than the cutoff to be reported as zero.
  • Page 73 Select Off, and no further choices are available. • Select Single, and the Sentinel LNG displays the K Factor. To change the value, press [ENT]. Use the arrow keys to change the value and press [ENT]. IMPORTANT: If the Reynolds Correction factor in the Fluid option has been enabled, the K factor should be set to 1.00.

  • Page 74: Entering Pipe Parameters

    [ENT] twice to select it (once to enter and again to confirm the selection). To access the Pipe submenu: Press [ESC]. The Sentinel LNG enters the User Program. Press the [] key until PROG is bracketed and press [ENT].

  • Page 75: Entering The Pipe Material

    Once the nominal pipe size and schedule number are entered, the Sentinel LNG determines the OD and wall thickness from an internal table. [ENT]. Scroll to the Schedule option, and press A list of pipe sizes opens, from 15 to 200 mm (0.5 to 8 in.).
  • Page 76 To program in other options, press [ESC] to return to the PROG menu. • To program in other menus, refer to Appendix A, Menu Maps, to navigate to the desired menu. • To leave the User Program, press [ESC] until the display screen reappears. Sentinel LNG User’s Manual...

  • Page 77: Chapter 5. Using Panaview

    Wiring the RS232 Interface The Sentinel LNG uses an RS232 interface to communicate with a PC. For details on wiring your RS232 interface, please refer to Chapter 2 (Installation) of this manual and to the document EIA-RS Serial Communications (916-054).
  • Page 78 The communication settings can be modified at any time by selecting the port on the network tree with the right mouse button and choosing Properties. Note: Refer to Adding a New Communication Port in Chapter 4 of the PanaView™ Instrument Interface Software Operation and Installation Guide (910-211C). Figure 37: Default Communication Parameters Sentinel LNG User’s Manual...

  • Page 79: Adding The Sentinel Lng To The Communications Port

    Select from the pop-up menu. Figure 38: Adding the Sentinel LNG to the Comm Port I know the node ID of the meter I am adding to the network If the node ID is known, select “...
  • Page 80 Chapter 5. Using PanaView 5.3.2 Adding the Sentinel LNG to the Communications Port (cont.) Name: Enter the ID number in the entry, a meter name in the entry, and then click on the button. Clock: Note: Do not enter any data in the entry.
  • Page 81 Chapter 5. Using PanaView 5.3.2 Adding the Sentinel LNG to the Communications Port (cont.) I don't know the node ID of the meter I am adding to the network If the node ID is not known, select " " and then click on button (see Figure 41 below).
  • Page 82 Chapter 5. Using PanaView 5.3.2 Adding the Sentinel LNG to the Communications Port (cont.) If PanaView™ found the meter, a window will pop up and inform the user which Node ID the meter is set to. The operator can select to use the existing Node ID or a different Node ID (see Figure 43 below).

  • Page 83: Meter Security

    Lock Out to set security. To change a parameter, the passcode must be entered. Figure 44: Security Form Meter Properties To set meter properties, click twice on the meter name and a list of parameter menus appears. Figure 45: Parameter Menus Sentinel LNG User’s Manual...

  • Page 84: Program Menu

    Program Menu To set up a channel, click twice on Program Menu and the following screen appears. Figure 46: Program Channels Click twice on the appropriate Channel # and the following screen appears. Figure 47: Meter Properties Sentinel LNG User’s Manual...

  • Page 85: Status Setup

    To select whether the channel is on or off, click on Status and the following screen appears. Click On or Off twice, and the screen returns to the PROGRAM menu. Figure 48: Channel Status 5.6.2 Transducer Setup To select the transducer type, click on Transducer and the following screen appears. Figure 49: Transducer Types Sentinel LNG User’s Manual...
  • Page 86 To change the wedge temperature, enter the appropriate numbers into the text box (the box turns yellow), and click on BACK. The Wedge TMP Verification screen appears. Click Yes to save the change, or No to return to the previous value. Figure 51: Wedge Temperature Verification Sentinel LNG User’s Manual...
  • Page 87 Click twice on Preprogrammed... or Other... If Preprogrammed is selected, the following screen appears. Figure 52: Preprogrammed Transducer Options Click twice on the appropriate transducer number and the screen returns to the Clamp On menu. If Other... is selected, the following screen appears. Figure 53: Other Transducer Menu Sentinel LNG User’s Manual...
  • Page 88 BACK. The Verification screen appears. Click Yes to save the change, or No to return to the previous value. Figure 54: Tw Value Verification To select a frequency, click on Frequency, and the following screen appears. Figure 55: Transducer Frequency Options Sentinel LNG User’s Manual...
  • Page 89 Figure 56: Wetted Transducer Options 10. Click twice on Preprogrammed... or Other... If Preprogrammed is selected, the following screen appears. Figure 57: Preprogrammed Transducer Options 11. Click twice on the appropriate transducer number and the previous screen appears. Sentinel LNG User’s Manual...

  • Page 90: Fluid Setup

    If necessary, change the time value in the text box. Click on BACK to return to the Program Menu. Figure 59: Frequency Options 5.6.3 Fluid Setup From the Program Menu, click on Fluid. The following screen appears. Sentinel LNG User’s Manual...
  • Page 91 Chapter 5. Using PanaView Figure 60: Fluid Reynolds Correction To set up the Reynolds correction format, click on Reynolds and the following screen appears. Figure 61: Fluid Reynolds Correction Menu Sentinel LNG User’s Manual...
  • Page 92 Figure 62: Reynolds Correction Single Option Enter the correct text box measurement and click BACK to return to the previous screen. If Table... was selected on the previous screen, the following screen appears. Figure 63: Reynolds Correction Unit Menu Sentinel LNG User’s Manual...
  • Page 93 Click twice on Soundspeed... and the unit option is Meters/sec. Click twice on Diagnostic... and the unit options are Signal Up or Signal Dn. Click on BACK to return to the Unit Menu. Figure 65: Reynolds Correction Unit Menu Sentinel LNG User’s Manual...
  • Page 94 Figure 66: Reynolds Correction Row Options Click twice on the Row... to be changed and the following screen appears. Read the AutoFormsNumeric message, click OK, and enter the appropriate values in the text boxes above. Figure 67: Editing Row Values Sentinel LNG User’s Manual...
  • Page 95 10. Click twice on Yes to confirm the changes, and the screen returns to the Unit Menu. To enter more table values, repeat Steps 7 to 9. To program other parameters, click on BACK three times to return to the Program screen. Sentinel LNG User’s Manual...

  • Page 96: Path Setup

    To change the path spacing, enter the number of millimeters into the text box and click on BACK. Click Yes on the Spacing Verification screen, and click on BACK. The screen returns to the Program menu. Sentinel LNG User’s Manual...

  • Page 97: Signal Setup

    Click on categories to be set, select a type from each list, and make changes to the text boxes as needed. 5.6.6 K Factor Setup To set up the K Factor, from the Program screen, click on K Factor and proceed as in Fluid beginning on page 78. Sentinel LNG User’s Manual...

  • Page 98: Error Limits Setup

    To set error limits, from the Program Menu, click on Error Limits and the following screen appears. Figure 72: Setting Error Limits Enter the appropriate values into the text boxes and click on BACK to return to the Program Menu. Sentinel LNG User’s Manual...

  • Page 99: Composite Programs

    From the PROGRAM menu, click twice on Composite, and the following screen appears. Figure 73: Composite Program Menu 5.7.1 Pipe Setup To enter pipe information, click on Pipe and the following screen appears. Figure 74: Pipe Information Menu Sentinel LNG User’s Manual...
  • Page 100 Chapter 5. Using PanaView 5.7.1 Pipe Setup (cont.) Click on Material and the following screen appears. Figure 75: Pipe Material If the pipe material is standard, click on Preprogrammed... and the following screen appears. Figure 76: Preprogrammed Pipe Material Sentinel LNG User’s Manual...
  • Page 101 Enter the pipe size into each text box according to the category listed. When finished, click three times on BACK to return to the Pipe Menu. If the pipe material is not standard, from the Pipe Menu, click on Material, then click on Other... The following screen appears. Figure 78: Other Pipe Material Sentinel LNG User’s Manual...
  • Page 102 Pipe Menu. To enter pipe lining characteristics, from the Pipe Menu click on Lining. The following screen appears. Figure 79: Lining Menu Click on Material and the following screen appears. Figure 80: Lining Material Options Sentinel LNG User’s Manual...
  • Page 103 11. Click twice on the lining material and the screen returns to the previous menu. 12. If the lining is not standard, click twice on Other and the following screen appears. Figure 82: Other Lining Material Soundspeed Sentinel LNG User’s Manual...
  • Page 104 Enter the lining material thickness in millimeters, click on BACK, and click Yes on the Thickness Verification screen. 15. The screen returns to normal mode as shown below. Click on BACK twice to return to the Program Menu. Figure 83: Lining Menu Complete Sentinel LNG User’s Manual...

  • Page 105: Fluid Setup

    Chapter 5. Using PanaView 5.7.2 Fluid Setup Click on Fluid and the following screen appears. Figure 84: Fluid Menu Click on Fluid Type and the following screen appears. Figure 85: Fluid Type Menu Sentinel LNG User’s Manual...
  • Page 106 If the fluid is standard, click twice on Preprogrammed... The following screen appears. Figure 87: Preprogrammed Fluid Menu Select the correct fluid from the list and click on it twice. The window returns to the Normal screen. Sentinel LNG User’s Manual...
  • Page 107 On the Normal screen, to change the fluid Temperature, enter a new value into the text box and follow the procedure above. If the fluid type is not normal, on the Fluid Type screen click twice on Tracking... and the following screen appears. Figure 89: Tracking Screen Sentinel LNG User’s Manual...
  • Page 108 11. Enter the fluid Minimum and/or Maximum Soundspeed, click on BACK, and click Yes to verify, or No to reject the change. When the Fluid changes are complete, click on BACK to return to the composite Program menu. Sentinel LNG User’s Manual...

  • Page 109: Signal Setup

    Click on the categories that need to be set, select the appropriate type from each list, and make changes to the text boxes as needed. 5.7.4 K Factors Setup To set up the K Factors, from the Program screen, click on K Factors and the following screen appears. Figure 92: K Factors Menu Sentinel LNG User’s Manual...
  • Page 110 To change a single K Factor, click twice on Single..The following screen appears. Figure 94: K Factor Value Option Enter the K factor and click on BACK. Click Yes to verify, or No to reject, the new K Factor, and click on BACK. Sentinel LNG User’s Manual...
  • Page 111 To check the velocity unit of measure, click twice on Velocity... and the screen shows the unit. Click BACK. To check the diagnostic unit, click twice on Diagnostic... and the screen shows the unit. Click BACK. Click BACK again to return to the Unit Menu. Sentinel LNG User’s Manual...
  • Page 112 10. Enter a new Reynolds # and/or K Factor, click on BACK, click Yes to verify, or No to reject, the new X and/or K Factor values, and click on BACK. 11. When the Row changes are complete, click on BACK to return to the Unit menu. Sentinel LNG User’s Manual...
  • Page 113 15. To turn off the Path Ratio K-Factor, click Off... twice. The screen returns to the K Factors Menu. To edit the path ratio K factor, click twice on Table... and follow the previous instructions in Steps 10 through 15. Sentinel LNG User’s Manual...

  • Page 114: Weight Factors Setup

    BACK. Click Yes to confirm the change or click No to reject the change. Click twice on BACK to return to the composite Program menu. Figure 102: Weight Verification Screen 5.7.6 Inputs Setup From the composite Program menu, click on Inputs and the following screen appears. Sentinel LNG User’s Manual...
  • Page 115 Chapter 5. Using PanaView Figure 103: Inputs Menu To change the input temperature, click on Temperature, and the following screen appears. Figure 104: Temperature Menu Sentinel LNG User’s Manual...
  • Page 116 Enter the appropriate fixed temperature value into the text box and click on BACK. Click Yes to confirm the change or click No to reject it. Click on BACK and return to the Temperature menu. Figure 106: Fixed Temperature Verification Screen Sentinel LNG User’s Manual...
  • Page 117 Figure 107: Active Temperature Menu Click twice on the appropriate temperature and the screen returns to the Temperature menu. Click on BACK to return to the Inputs menu and click on Pressure. The following screen appears. Figure 108: Pressure Menu Sentinel LNG User’s Manual...
  • Page 118 Enter the appropriate fixed pressure value into the text box and click on BACK. Click Yes to confirm the change or click No to reject it. Click on BACK and return to the Pressure menu. Figure 110: Fixed Pressure Verification Screen Sentinel LNG User’s Manual...
  • Page 119 11. Click twice on the appropriate pressure and the screen returns to the Pressure menu. 12. Click on BACK to return to the Inputs menu and click on Density. The following screen appears. Figure 112: Density Menu Sentinel LNG User’s Manual...
  • Page 120 14. Enter the appropriate fixed density value into the text box and click on BACK. Click Yes to confirm the change or click No to reject it. Click on BACK and return to the Density menu. Figure 114: Fixed Density Verification Screen Sentinel LNG User’s Manual...
  • Page 121 15. To select an active density, from the Density menu click twice on Active... The following screen appears. Figure 115: Active Density Menu 16. Click twice on the appropriate density and the screen returns to the Density menu. Click twice on BACK to return to the composite Program menu. Sentinel LNG User’s Manual...

  • Page 122: Api Setup

    17. To select the type of table, click on API Table Type . The following screen appears. Figure 117: Table Type Menu 18. Click twice on the appropriate selection, and the screen returns to the API Setup Menu. Sentinel LNG User’s Manual...
  • Page 123 19. To set up API conditions, click on API Conditions, and the following screen appears. Figure 118: API Conditions Menu 20. Click on Base Conditions and the following screen appears. Figure 119: API Base Conditions Menu Sentinel LNG User’s Manual...
  • Page 124 22. Enter the appropriate user defined base value into the text box and click on BACK. Click Yes to confirm the change or click No to reject it. Click on BACK and return to the API Base Condition menu. Figure 121: User Defined Base Temperature Verification Screen Sentinel LNG User’s Manual...
  • Page 125 23. Click on BACK to return to the API Conditions menu. To provide Flow Measurement settings, click on Flow Measure At, and the following screen appears. Figure 122: API Flow Measurement Menu 24. Click on Observed... and the following screen appears. Figure 123: API Observed Alternate Conditions Screen Sentinel LNG User’s Manual...
  • Page 126 No to reject it. Repeat the process for the other condition if necessary, then click on BACK and return to the API Flow Measurement menu. Figure 124: Temp(alt) Verification Screen 26. To check alternate Flow Measurement settings, click on Flow Measure At. The following screen appears. Figure 125: API Alternate Observed Conditions Screen Sentinel LNG User’s Manual...
  • Page 127 No to reject it. Repeat the process for the other conditions if necessary, then click on BACK five times and return to the original Program menu. Figure 126: Temp(obs) Verification Screen 28. Exit the original Program menu by clicking the X in the upper right-hand corner of the screen. Sentinel LNG User’s Manual...

  • Page 128: Configuration Menu

    To set up data configuration, click twice on Config Menu and the following screen appears. Figure 127: Configuration Menu To select the type of units, click on Units. The following screen appears. Figure 128: Units Menu Click twice on Metric or English. The screen returns to the Config menu. Sentinel LNG User’s Manual...

  • Page 129: Communication Setup

    To select a type of communication, click on Communication. The following screen appears. Figure 129: Communication Menu 5.8.2.1 Modbus To set up Modbus communications, click on Modbus. The following screen appears. Figure 130: Modbus RTU Menu Sentinel LNG User’s Manual...
  • Page 130 Figure 131: Modbus Address Verification Screen To select the interface to be used, click on Interface. The following screen appears. Figure 132: Interface Menu Click twice on your selection, and the screen returns to the Modbus RTU menu. Sentinel LNG User’s Manual...
  • Page 131 Click twice on your selection, and the screen returns to the Modbus RTU menu. To select a baud rate, click on Baud Rate. The following screen appears. Figure 134: Baud Rate Menu Click twice on your selection, and the screen returns to the Modbus RTU menu. Sentinel LNG User’s Manual...
  • Page 132 10. Click twice on your selection, and the screen returns to the Modbus RTU menu. 11. To select a volumetric unit, click on Volumetric. The following screen appears. Figure 136: Parity Menu 12. Click twice on your selection, and the screen returns to the Modbus RTU menu. Sentinel LNG User’s Manual...
  • Page 133 15. To select standard volumetric units, click on Volumetric. The following screen appears. Figure 138: Standard Volumetric Units Menu 16. Click twice on your selection, and the screen returns to the Modbus RTU menu. Click on BACK to return to the Communication menu. Sentinel LNG User’s Manual...
  • Page 134 To set up HART software, click on HART. The following screen appears. Figure 139: HART Menu To set up HART variable configurations, click on Var Config, and the following screen appears. Figure 140: Hart Variable Configurations Menu Sentinel LNG User’s Manual...
  • Page 135 HART (cont.) Click on PV Config and the following screen appears. Figure 141: HART PV Configuration Menu To select a channel for the HART PV Communication, click on Channel. The following screen appears. Figure 142: Channel Menu Sentinel LNG User’s Manual...
  • Page 136 10. On the HART menu, to change listed information, enter the appropriate text into the text box and click on BACK. Click Yes to confirm the change, or click No to reject it. Click on BACK to return to the Communication screen. Sentinel LNG User’s Manual...

  • Page 137: Reset Totals

    Click twice on the Reset Totals Direction required, and the screen returns to the Reset Totals menu. Repeat this process for another channel, if necessary. When complete, click on BACK, and the screen returns to the CONFIG menu. Sentinel LNG User’s Manual...

  • Page 138: Totalizer Errors

    Click twice on Yes to confirm the selection above, or No to reject it. Click on BACK to return to the original CONFIG menu. Exit the original CONFIG menu by clicking the X in the upper right hand corner of the screen. Input/Output Menu Sentinel LNG User’s Manual...

  • Page 139: Analog Outputs Setup

    To set up the inputs and outputs, under the meter name, click twice on IO Menu and the following screen appears. Figure 147: Input/Output Menu 5.9.1 Analog Outputs Setup Click on Analog Outputs, and the following screen appears. Figure 148: Analog Output Option Sentinel LNG User’s Manual...
  • Page 140 Repeat this procedure for each option on the 4-20 Loop menu. Change the Base(4mA) and Span(20mA) text box readings (if required). Confirm the new entries by clicking Yes on the Verification screens, and click BACK twice. Sentinel LNG User’s Manual...

  • Page 141: Frequency/Totals Setup

    Figure 151: Frequency/Total Link Mode Click twice on the required Link Mode description, and the following screen appears. Figure 152: Frequency/Total Number Note: The Linked (90°)... has only one Freq/Total option, while the Independent... has two. Sentinel LNG User’s Manual...
  • Page 142 Click twice on the appropriate Freq/Total #, and the following screen appears. Figure 153: Frequency/Total Options Click on Status, and the following screen appears. Figure 154: Frequency/Total Status Click twice on the appropriate Status option, and the screen returns to the Freq/Total options Sentinel LNG User’s Manual...
  • Page 143 Chapter 5. Using PanaView 5.9.2 Frequency/Totals Setup (cont.) Click on Mode, and the following screen appears. Figure 155: Frequency/Total Mode Options Click twice on the Frequency... option, and the following screen appears. Figure 156: Frequency Menu Sentinel LNG User’s Manual...
  • Page 144 Chapter 5. Using PanaView 5.9.2 Frequency/Totals Setup (cont.) Click on Units, and the following screen appears. Figure 157: Channel Options Click twice on the appropriate Channel, and the following screen appears. Figure 158: Publisher Options Sentinel LNG User’s Manual...
  • Page 145 11. Click twice on the appropriate Unit option, and click on BACK until the Frequency menu appears. Click on Error Level and the following screen appears. Figure 160: Error Handling Options 12. Click twice on the appropriate Error Handling description, and the screen returns to the Frequency menu. Sentinel LNG User’s Manual...
  • Page 146 5.9.2 Frequency/Totals Setup (cont.) 13. Under the Mode menu, click twice on Totalizer..., and the following screen appears. Figure 161: Totalizer Menu 14. Click on Units, and the following screen appears. Figure 162: Totalizer Channel Options Sentinel LNG User’s Manual...
  • Page 147 16. Click twice on the appropriate Publisher option, and the following screen appears. Figure 164: Unit Options 17. Click twice on the appropriate measurement Unit, and use the BACK button to return to the Totalizer menu. Sentinel LNG User’s Manual...
  • Page 148 20. Change the Unit/Pulse and/or Pulse Width text box readings (if required). Confirm the new entries by clicking Yes on the Verification screens, and click BACK twice. 21. From the Freq/Total menu, click on Drive Ctl. The following screen appears. Figure 166: Output Drive Options Sentinel LNG User’s Manual...

  • Page 149: Alarms Setup

    IO (Input/Output) menu. 5.9.3 Alarms Setup Click on Alarms and the following screen appears. Figure 167: Alarm Options Click twice on the appropriate Alarm #, and the following screen appears. Figure 168: Alarm Menu Sentinel LNG User’s Manual...
  • Page 150 Click on Status, and the following screen appears. Figure 169: Alarm Status Options Click twice on the appropriate Status option, and the screen returns to the Alarm menu. Click on TYPE and the following screen appears. Figure 170: Alarm Type Options Sentinel LNG User’s Manual...
  • Page 151 Chapter 5. Using PanaView 5.9.3 Alarms Setup (cont.) Click twice on Level... and the following screen appears. Figure 171: Alarm (Fail-safe) Menu Click on Units, and the following screen appears. Figure 172: Alarm Channel Options Sentinel LNG User’s Manual...
  • Page 152 Click twice on the appropriate measurement type, and the following screen appears. Figure 174: Alarm Measurement Unit Options 10. Click twice on the appropriate unit type, and the previous screen appears. Click on BACK twice to return to the Alarm(FailSafe) menu. Sentinel LNG User’s Manual...
  • Page 153 12. Click twice on the appropriate Trip Direction, and the screen returns to the Alarm(FailSafe) menu. 13. Click on Error Level, and the following screen appears. Figure 176: Alarm Error Direction Options 14. Click twice on the appropriate Error Direction, and the screen returns to the Alarm(FailSafe) menu. Sentinel LNG User’s Manual...
  • Page 154 16. To set up the alarm direction, from the Alarm Type Options menu (see Figure 170 on page 138), click twice on Direction... The following screen appears. Figure 177: Alarm Trip Direction Menu 17. Click on Units and the following screen appears. Figure 178: Alarm Trip Direction Channel Options Sentinel LNG User’s Manual...
  • Page 155 Figure 179: Alarm Fault Type Options 20. Click on Units, and the following screen appears. Figure 180: Alarm Fault Channel Options 21. Click twice on the appropriate Channel, and the screen returns to the previous screen. Sentinel LNG User’s Manual...
  • Page 156 A check mark appears after each click. To unselect a fault type, click on the specific check mark and the mark disappears. When all selections have been made, click on BACK three times to return to the Alarm Menu. Figure 182: Custom Types Selected Sentinel LNG User’s Manual...
  • Page 157 Figure 184: Clear Alarm Latch Confirmation 26. Click twice on Yes to remove the latch, or No to keep the latch, and the screen returns to Alarm Latch Options. Use the BACK key to return to the IO (Input/Output) menu. Sentinel LNG User’s Manual...

  • Page 158: Slot 1 Setup

    From the IO (Input/Output) menu, click on Slot 1. The following screen appears. Figure 185: Slot 1 Options Assign an Option Card to Slot 1 by clicking twice on the appropriate item. If an analog input card was selected, the following screen appears. Figure 186: Analog Input Menu Sentinel LNG User’s Manual...
  • Page 159 Choose the appropriate Measurement option and click on it twice. If Off is selected, the Measurement is turned off, and the screen returns to the Analog Input Card Menu. If Temperature... is selected, the following screen appears. Figure 188: Temperature Menu Sentinel LNG User’s Manual...
  • Page 160 Yes on the Verification screen. Return to the Analog Input Measurement Options menu, and repeat Steps 5 through 8 for Pressure... and Density... Then click on BACK and return to the Analog Input menu. Sentinel LNG User’s Manual...
  • Page 161 12. Click twice on Yes to confirm the calibration, or No to reject it. The screen returns to the Analog Input Calibration Options screen. 13. Repeat Steps 11 and 12 for Trim Span... and Reset Trim... as needed. Sentinel LNG User’s Manual...
  • Page 162 To change the card label, enter the new name into the text box, click on BACK, and click Yes on the Verification screen to complete the choice. Click on Mode, and the following screen appears. Figure 193: RTD Input Measurement Options Sentinel LNG User’s Manual...
  • Page 163 RTD Input Card Menu. If Temperature... is selected, the following screen appears. Figure 194: Temperature Menu Click on Units, and the following screen appears. Figure 195: Temperature Unit Options Click twice on the appropriate Unit, and the screen returns to the Temperature Menu. Sentinel LNG User’s Manual...
  • Page 164 Verification screen. Click on BACK to return to the RTD Input Menu. Click on Reset Table and the following screen appears. Figure 197: Reset Table Confirmation 10. Click Yes twice to confirm the resets, or No to reject them. The screen returns to the RTD Input Menu. Sentinel LNG User’s Manual...

  • Page 165: Slot 2 Setup

    Figure 198: Display Menu Click on Views and the following screen appears. Figure 199: Views Options 5.10.1.1 One View Click twice on either 1 View... or 2 Views... If 1 View... is selected, the following screen appears. Sentinel LNG User’s Manual...
  • Page 166 Chapter 5. Using PanaView Figure 200: View 1 Setup Click on View #1 and the following screen appears. Figure 201: View 1 Setup Menu Sentinel LNG User’s Manual...
  • Page 167 Click on Channel and the following screen appears. Figure 202: Channel Options Click twice on the appropriate Channel, and the screen returns to the View 1 Setup Menu. Click on Publisher, and the following screen appears. Figure 203: Publisher Options Sentinel LNG User’s Manual...
  • Page 168 Figure 205: Format Menu 11. Enter the appropriate number into each text box, click on BACK, and confirm the value by clicking Yes on the Verification screen. Click on BACK to return to the previous screen. Sentinel LNG User’s Manual...

  • Page 169: 5.10.2 Contrast And Backlight

    Yes on the Verification screen. 5.10.3 Display Mode Setup On the Display Menu, click on Mode, and the following screen appears. Figure 206: Display Mode Options Click twice on the appropriate Mode, and the screen returns to the Display Menu. Sentinel LNG User’s Manual...

  • Page 170: Calibrate Menu

    Figure 208: 4-20 Loop Setup Menu To change Base Trim, Scan Trim or Percent values, enter the appropriate number into the text box, click on BACK, and confirm the value by clicking Yes on the Verification screen. Sentinel LNG User’s Manual...
  • Page 171 Click twice on the appropriate option, and the screen returns to the previous menu. Click on BACK to return to the Calibrate Menu. Exit the original Cal Menu by clicking the X in the upper right-hand corner of the screen. Sentinel LNG User’s Manual...

  • Page 172: User Menu

    To enter a user passcode, type the appropriate text into the text box, click on BACK, and confirm the value by clicking Yes on the Verification screen. When finished, click on BACK to return to the User Setup Menu. Sentinel LNG User’s Manual...

  • Page 173: 5.12.2 Set Security

    Figure 212: Security Level Options Click twice on the appropriate level of security, and the screen returns to the User Setup Menu. Exit the User Setup Menu by clicking the X in the upper right-hand corner of the screen. Sentinel LNG User’s Manual...

  • Page 174: Factory Menu

    Factory Menu Click twice on Factory Menu, and the following screen appears. Figure 213: Factory Menu 5.13.1 Checking Versions To check the unit’s version information, click on Versions, and the following screen appears. Figure 214: Version Options Sentinel LNG User’s Manual...
  • Page 175 Click twice on Main... and the following screen appears. Click on BACK to return to the previous screen. Figure 215: Main Version Information Click twice on Option Cards... and the following screen appears. Figure 216: Option Cards Version Information Click twice on BACK to return to the FACTORY menu. Sentinel LNG User’s Manual...

  • Page 176: 5.13.2 Confirming Meters

    To confirm the Default Meter, click twice on Yes. To not confirm, click twice on No. The screen returns to the Factory Menu. Click on Upgrade and the following screen appears. Figure 218: Confirm Upgraded Meter Sentinel LNG User’s Manual...
  • Page 177 From the Factory Menu, to change the Tag (name) or the Assy Temp value, enter the appropriate number into the text box, click outside the box, and confirm the value by clicking Yes on the Verification screen. 10. Exit the Factory Menu by clicking the X in the upper right-hand corner of the screen. Sentinel LNG User’s Manual...
  • Page 178 Chapter 5. Using PanaView Sentinel LNG User’s Manual...

  • Page 179: Chapter 6. Modbus Communications

    Chapter 6. MODBUS Communications Introduction The Sentinel LNG supports digital communications using the MODBUS/RTU protocol, with 2-wire RS-485 or 3-wire RS- 232C as the physical layer. Data rate can be specified from 4800 to 19200 bits per second (bps), with selectable parity.
  • Page 180 1071 0x042E 2095 0x082E 3119 0x0C2E 4143 0x102E Theta 3 2 LSW float 49 0x0030 1073 0x0430 2097 0x0830 3121 0x0C30 4145 0x1030 CEE1 2 LSW float 51 0x0032 1075 0x0432 2099 0x0832 3123 0x0C32 4147 0x1032 Sentinel LNG User’s Manual...
  • Page 181 157 0x009C 1181 0X049C 2205 0X089C 0X0C9C 4253 0X109C STD REV Total 4 LSW float 161 0x00A0 1185 0X04A0 2209 0X08A0 3233 0X0CA0 4257 0X10A0 4 LSW STD Totl. Time double 165 0x00A4 1189 0X04A4 2213 0X08A4 3237 0X0CA4 4261 0X10A4 Sentinel LNG User’s Manual...
  • Page 182 STD FWD Total 2 LSW float 301 0x012C 1325 0x052C 2349 0x092C 3373 0x0D2C 4397 0X112C Register 2 STD REV Total 2 LSW float 303 0x012E 1327 0x052E 2351 0x092E 3375 0x0D2E 4399 0X112E Register 0 Sentinel LNG User’s Manual...
  • Page 183 All Ones 1 Unsigned 0x1405 integer Each of the 32 bits represents an error type. Writing any non-zero value will clear totals (unless locked per MID requirements). Represented as integer value (i.e. E1, E2, E3, etc.) Sentinel LNG User’s Manual...
  • Page 184 Chapter 6. MODBUS Communications Sentinel LNG User’s Manual...

  • Page 185: Chapter 7. Hart Communications

    Chapter 7. HART Communications Chapter 7. HART Communications Introduction The Sentinel LNG generates a 4-20 mA analog output signal that enables two-way communication with a HART communication device. Wiring the HART Interface Interconnect the HART interface and the HART device as shown in Figure 219 below.

  • Page 186: Flowmeter Software Setup

    Flowmeter Software Setup Sentinel LNG’s require no special setup procedures by the user. The meter automatically configures itself for HART communication on startup. The analog output must be on, and the mode must be set to the desired state. See [I/O], analog output menu.

  • Page 187: Host Interface

    Analog Output The Sentinel LNG is equipped with a single 4-20 mA output, which can be configured using software to supply 24-volt power internally (active), or to regulate current from an external source (passive). When set to either mode it will support the HART communication channel.
  • Page 188 189 (BD) 237 (ED) Not Classified Special Input 3 46 (2E) 94 (5E) 142 (8E) 190 (BE) 238 (EE) Not Classified Special Input 4 47 (2F) 95 (5F) 143 (8F) 191 (BF) 239 (EF) Not Classified Sentinel LNG User’s Manual...
  • Page 189 Selectable Unit Types are restricted in such a way that each Variable Class can use only a single unit at a time. For instance, if a Volumetric Flow variable unit is changed, all subsequent Volumetric Flow variables will switch to that unit. This keeps forward and reverse internal Sentinel LNG units in sync with the HART variable type. Device Variable...
  • Page 190 Not Classified When optional API Correction is installed, the Composite Volumetric and Volume variables are mapped to standard units. The supported units are referenced in section 11. Individual channel volumetric flowrate and volume units remain actual units. Sentinel LNG User’s Manual...

  • Page 191: Dynamic Variables

    (PV, SV, TV and QV). Certain diagnostic variables have units specific to that diagnostic. Refer to the Sentinel LNG for details on the use of diagnostic variables indicated by the variable class specified as "Not Classified."...

  • Page 192: Additional Device Status

    Command 48 returns four data bytes. Error bits are cleared only when the cause is rectified. Refer to the service manual for troubleshooting information. Table 16 below shows the error bits and associated SEN898 error condition. HART Additional Sentinel LNG Device Status Device Status Meaning Sentinel LNG Error Condition Class Bits Set Byte – – –...

  • Page 193: Universal Commands

    Write Primary Variable Transducer Serial Number Read Dynamic Variable Assignments Write Dynamic Variable Assignments Set Device Variable Zero Write Device Variable Units Read Device Variable Information Write Device Damping Value Write Number of Response Preambles Squawk Sentinel LNG User’s Manual...

  • Page 194: Burst Mode Commands

    Totals variable. Invalid selection is returned for non-totals variables. 7.9.2 Burst Mode Commands The Sentinel LNG does not support burst mode. 7.9.3 Catch Device Variable Command The Sentinel LNG does not support the catch device variable mechanism. Sentinel LNG User’s Manual...

  • Page 195: Device-Specific Commands

    Totals variable, it will clear all totals. Note: The function is global. Sentinel LNG can be configured to use individual transducer pairs, or channels, to measure flow in separate pipes. The clear totals command will reset the volume, mass, energy and time for every channel.

  • Page 196: Tables

    HART Engineering Units The unit types allowed for Sentinel LNG device variables in Error! Reference source not found, shown in Section Error! Reference source not found, are listed below. Unit types for device variables in Error! Reference source not found are shown, but only units from Publishable variables are listed.
  • Page 197 Standard cubic feet Volume (REV) Standard cubic meters Standard liters 7.11.1.6 Mass Flow Class Variable Code Classification Unit Code Unit Description Mass Flow 7.11.1.7 Mass Class Variable Code Classification Unit Code Unit Description Mass (FWD) Mass (REV) Sentinel LNG User’s Manual...

  • Page 198: Performance

    10 times per second. 7.12.2 Power-Up The Sentinel LNG requires approximately 15 to 60 seconds to boot after it is energized, depending on whether the non-volatile memory is being restored from default. No HART requests are processed during initiation. The analog output will default to 4mA until the primary variable is available.

  • Page 199: 7.12.4 Self-Test

    7.12.7 Long Messages The data field in Command 21, Read Unique Identifier Associated with Long Tag, is the largest that the Sentinel LNG will receive. The message contains 32 characters (bytes). The reply to Command 21 contains the largest data field sent by the Sentinel LNG, 18 bytes (including the two status bytes).
  • Page 200 Chapter 7. HART Communications Mappable Dynamic Variables? Number of common-practice commands Number of device-specific commands Bits of additional device status Alternative operating modes? Burst mode? Write-protection? Sentinel LNG User’s Manual...

  • Page 201: Default Configuration

    Damping time constant NaN (not a number) Total lock Off (i.e., reset is enabled) Number of response preambles Refer to Chapter 3, Operation, for more information about factory default settings for the Sentinel LNG. 7.15 Revision History Sentinel LNG User’s Manual...
  • Page 202 Chapter 7. HART Communications Sentinel LNG User’s Manual...

  • Page 203: Chapter 8. Maintenance

    To set up the RS232, connect one end of a 9-pin RS232 cable to the COM-1 serial port on a PC and the other end to Com Port I/O on terminal block TB2 on the Sentinel LNG, as described in Chapter 2, Installation.
  • Page 204 From the Sentinel LNG FACTORY menu, scroll to the Upgrade option and press [ENT] twice. The Sentinel LNG screen should appear as in Figure 221 after approximately one minute, or Power on the Sentinel LNG, and enter ESC-R from the PC keyboard. The Sentinel LNG screen should appear as in Figure 221.
  • Page 205 .sim extension. Double click on this file and click the Send button. The screens on the Sentinel LNG (Figure 223) and on Hyperterminal (Figure 224) should both display the status of the transfer. Figure 223: Sentinel LNG Transfer Status Window Figure 224: PC Transfer Status Window...
  • Page 206 To ensure the Sentinel LNG operates correctly, Panametrics recommends defaulting the meter after software updates. From the Sentinel LNG Factory Menu, scroll to Default Meter and press [ENT]. Press the up arrow key [] and press [ENT] twice, or at power on, press and hold the [CLR-TOT] key until the following screen appears after several seconds.

  • Page 207: Checking The Meter Software

    Press the [] key until FACTORY is highlighted. Scroll to the Versions option and press [ENT]. Press [ENT] again to enter Option Cards. The display should appear similar to the screen below. Figure 227: Option Card Verification Screen Sentinel LNG User’s Manual...

  • Page 208: Trimming 4-20 Ma Using The Keypad

    The replacement part number will be as shown in Sentinel Electronics SEN898 on page 9 of this manual. To ensure that the correct part number is ordered, provide your local Panametrics Sensing representative with the serial number of the meter, located as shown on the Name and Specification Plate on page 3.

  • Page 209: Chapter 9. Troubleshooting

    All of the possible Sentinel LNG error code messages are discussed in this chapter, along with the possible causes and the recommended actions. When an error code is generated, it will appear in the lower right corner of the LCD screen, as discussed in Chapter 3.

  • Page 210: E4: Signal Quality Error

    9.2.7 E6: Cycle Skip, Acceleration Error Problem: Error Limits option The acceleration exceeds the limits programmed in the of the User Program. Cause: This condition is usually caused by erratic flow conditions. Action: Consult the factory. Sentinel LNG User’s Manual...

  • Page 211: E7: Analog Output Error

    This message indicates a density input error. Cause: The density exceeds the specified limits for the analog inputs, or no input device is connected. Action: Check the density input device and the connecting cable. Recalibrate the analog input. Sentinel LNG User’s Manual...

  • Page 212: E20: Special Input Error

    (see Activating a Channel/Path (Status) on page 43). Displaying Diagnostic Parameters The Sentinel LNG offers built-in Diagnostic Parameters to aid in the troubleshooting of transducer and/or electrical problems. To access these parameters, do the following: From the display screen, press [ESC].
  • Page 213 <50 or >75 Signal Dn Displays signal strength for the downstream transducer. 50-75 <50 or >75 Displays the value at which Sentinel LNG detects signal arrival time for the upstream transducer. Thresh Up [%] -100 - +100 <-100 or >100 Displays value at which Sentinel LNG detects signal arrival time for the downstream transducer.

  • Page 214: Fluid And Pipe Problems

    The fluid must be homogeneous, single-phase, relatively clean and flowing steadily. Although a low level of entrained particles may have little effect on the operation of the Sentinel LNG, excessive amounts of solid particles will absorb or disperse the ultrasound signals. This interference with the ultrasound transmissions through the fluid will cause inaccurate flow rate measurements.

  • Page 215: Pipe Problems

    Transducer Problems The Sentinel LNG transducers are rugged, reliable devices that do not come into contact with the process fluid. An engineered epoxy with the appropriate physical and acoustic properties holds the transducer in place. If erratic or...

  • Page 216: Audit Trail

    • Event/Record Number (Rec No.) • Date (mm/dd/yyyy) • Time (hh:mm:ss) • Source • Parameter Identification Number • Parameter Name • User Level- Authentication (Auth) • Old Value New Value • Sentinel LNG User’s Manual...

  • Page 217: Reading Audit Log Records

    “Save To Disc File”. On clicking the “Retrieve Data” button the Audit log file residing in the meter can be read. To store the data in the specified file in the PC, click on the “Store Data” button. A screen-shot of the PanaLink File Reader Application is provided below. Sentinel LNG User’s Manual...

  • Page 218: Formatting And Viewing Log Records

    Microsoft Excel file. In order to get the full benefits of the Audit trail feature, we recommend using the Microsoft Excel file. This option, however, is available only if Microsoft® Excel® 2000 or later is installed on the PC. Sentinel LNG User’s Manual...

  • Page 219: Uncertainty In Flow Rate For A Non-Insulated Meter

    Carbon Steel A106 with insulation 0.04 meter Carbon Steel A106 without insulation 0.03 0.02 0.01 -0.01 -0.02 Temperature Difference between Fluid and Ambinent (deg C) Figure 229: Example of Flow Error at Various Temperature Differences Sentinel LNG User’s Manual...
  • Page 220 Chapter 9. Troubleshooting Sentinel LNG User’s Manual...

  • Page 221: Appendix A. Menu Maps

    Appendix A. Menu Maps Appendix A. Menu Maps This appendix includes the following Sentinel LNG procedure formats: • Figure 230: MFG and DEV Menu Map • Figure 231: PROG Menu Map • Figure 232: PROG Composite Menu Map • Figure 233: CONFIG Menu Map •...
  • Page 222 Appendix A. Menu Maps Sentinel LNG User’s Manual...
  • Page 223 Freq/Tot #1 Freq/Tot #2 Alarm #1 Alarm #2 Alarm State Trip Reset Frequency Totalizer Test Freq Drive Control Pulse Count Pulse Width Polarity Drive Control ...Hz ...# ...ms Open Drain Push-Pull Positive Negative Open Drain Push-Pull Sentinel LNG User’s Manual...
  • Page 224 Rows Used Edit Table Units Rows Used Edit Table AUTO or # Bit Frequency Wedge SS TempCo RxW Size µs Velocity GainMode KFactor units Reynolds # Auto Manual Meters/sec ...ms Delay Time ...µs Signal Up Signal Dn Sentinel LNG User’s Manual...
  • Page 225 *Menu appears only when Slot 1/2 is occupied. Normal Tracking Active Tw Cycles # Temperature Peak Pcnt % Other Other Min Sndspd # Sndspd # Fluid Type Max Sndspd # On or Off X Point Correlation CHX UP CHX DN Optimized Correlation Sentinel LNG User’s Manual...
  • Page 226 Interface Parity Stop Bits Data Bits Protocol RS232 RS485 None Even 4800 9600 19200 38400 57600 115200 Address # Interface Parity Units Units Units Units RS232 RS485 4800 9600 19200 Base Span None Even Channel Unit Sentinel LNG User’s Manual...
  • Page 227 Units Polarity Units Fbase Fspan METER Liter/sec Liter/min Liter/hr Test Pressure Density Liters °C MMHG kg/m kg/L Fine D-T Dac Up Dac Dn Amp Up Amp Dn T Up[µs] T Dn[µs] Liter/sec Liter/min Liter/hr K Factor Sentinel LNG User’s Manual...
  • Page 228 Low Signal Active Tw Soundspeed Totalizer Overflow Velocity Range Temperature Input Signal Quality Pressure Input Amplitude Density Input Cycle Skip, Acceleration Special Input Analog Output API Error Settle Tracking AGC Degraded Performance Tracking Seek Mode Channel Disabled Sentinel LNG User’s Manual...
  • Page 229 Full Locked Display User1...User4 Locked User Admin Field Service Percent Mode Factory Engineering Channel Format Test Normal Date/Time SD Card Modbus Panalink HART Option Card UpTime Status Status Status Status Status Status Pressure Density Width Decimal Sentinel LNG User’s Manual...
  • Page 230 Appendix A: Menu Maps Sentinel LNG User’s Manual...

  • Page 231: Appendix B. Ce Mark Compliance And High Noise Areas

    Options Note: Make sure to connect the Sentinel LNG case to the earth ground with a grounding cable, using the external ground screws found on either side of the enclosure *Terminate the cable shields to the closest screw on the bus bar inside the enclosure.
  • Page 232 Appendix B. CE Mark Compliance and High Noise Areas Sentinel LNG User’s Manual...

  • Page 233: Appendix C. Data Records

    Appendix C. Data Records Appendix C. Data Records Site Data After the Sentinel LNG flow transmitter has been installed, specific site data must be entered via the User Program, prior to operation. Record that information in Table 36 below. General Information...
  • Page 234 Vol. Units Vol. Units Totalizer Units Totalizer Units Channelx- KFACTOR Table K-Factor Table K-Factor Table Channel 1 Channel 2 (if applicable) K-Factor Row # Velocity K Factor K-Factor Row # Velocity K Factor Channelx- KFACTOR Table (cont.) Sentinel LNG User’s Manual...
  • Page 235 Appendix C. Data Records Channelx- Reynolds Number Table Channel 1 Channel 2 (if applicable) Reynolds Row # Units K-Factor Row # Units Sentinel LNG User’s Manual...
  • Page 236 Appendix C. Data Records Sentinel LNG User’s Manual...

  • Page 237: Appendix C. Service Record

    An accurate service history of the meter can prove very helpful in troubleshooting any future problems. Data Entry Record complete and detailed service data for the Sentinel LNG in Table 37 below. Make additional copies of the table as needed. Date...

  • Page 238: Diagnostic Parameters

    Appendix C. Service Record Date Description of Service Performed By Diagnostic Parameters Sentinel LNG User’s Manual...
  • Page 239 Amp Up/Dn Amp Up/Dn Amp Up/Dn Amp Up/Dn Threshold Threshold Threshold Threshold Up/Dn Up/Dn Up/Dn Up/Dn All of this information can be found on the Flow Info pages inder the DEV Menu, Modbus or by using Panaview. Sentinel LNG User’s Manual...
  • Page 240 Appendix C. Service Record Sentinel LNG User’s Manual...
  • Page 241 IO Menu Map #2 ......... 216 Sentinel LNG User’s Manual...
  • Page 242 Wall Thickness ......... .63 Sentinel LNG User’s Manual...
  • Page 243 Temperature ......... . . 57 Sentinel LNG User’s Manual...
  • Page 244 Index Sentinel LNG User’s Manual...
  • Page 245 RETURN AUTHORIZATION NUMBER (RAN), and shipping instructions for the return of the instrument to a service center will be provided. If Panametrics Sensing instructs you to send your instrument to a service center, it must be shipped prepaid to the authorized repair station indicated in the shipping instructions.
  • Page 246 Warranty [no content intended for this page] Sentinel LNG User’s Manual...
  • Page 248 Customer Support Centers U.S.A. The Boston Center 1100 Technology Park Drive Billerica, MA 01821 U.S.A. Tel: 800 833 9438 (toll-free) 978 437 1000 E-mail: mstechsupport@bakerhughes.com Ireland Sensing House Shannon Free Zone East Shannon, County Clare Ireland Tel: +353 (0)61 470291 E-mail: mstechsupport@bakerhughes.com Copyright 2021 Baker Hughes company.

This manual is also suitable for:

Sentinel lct

Table of Contents
