Panametrics DigitalFlow XMT868i Service Manual

Ultrasonic flow transmitter for liquids (1 & 2-channel)
Hide thumbs Also See for DigitalFlow XMT868i:
Table of Contents

Advertisement

Quick Links

Flow

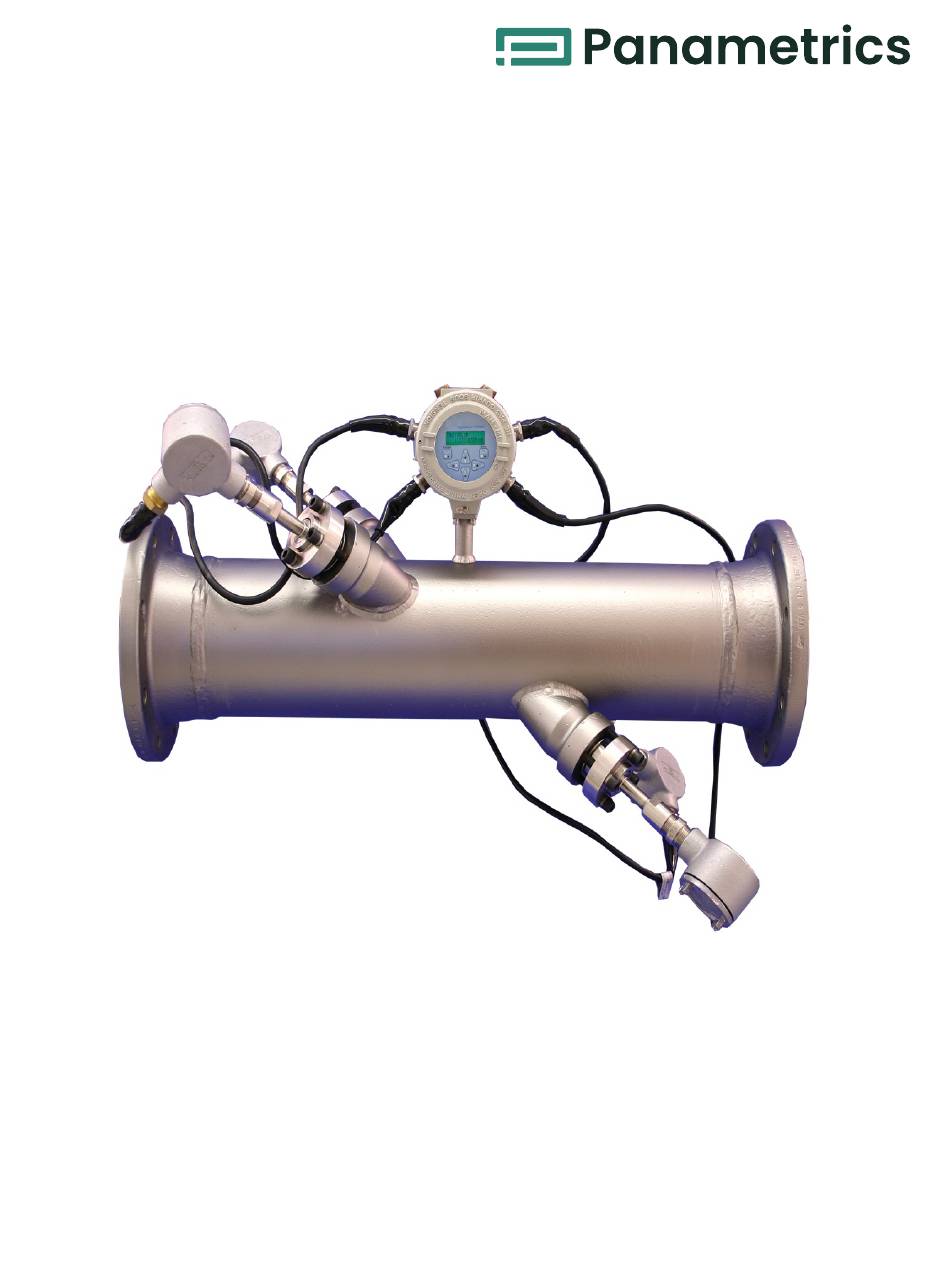

DigitalFlow™ XMT868i
Ultrasonic Flow Transmitter for Liquids
(1 & 2-Channel)
Service Manual
910-171S
panametrics.com
August 2021
