Wiring the Line Power (cont.)
WARNING!
6.
After the line power has been connected to the flow transmitter (enclosure #2), replace the rear cover, tighten
the set screw, and proceed to the next section.
Note:
Use only Class 2 rated power supplies for the line power to DC instruments.
Sentinel™ User's Manual
Make sure the front and rear covers of both enclosures, along with their O-ring seals,
are installed on the transmitters, and the set screws tightened before applying power in
a hazardous environment.
AC
1
2
3
Cable Gland

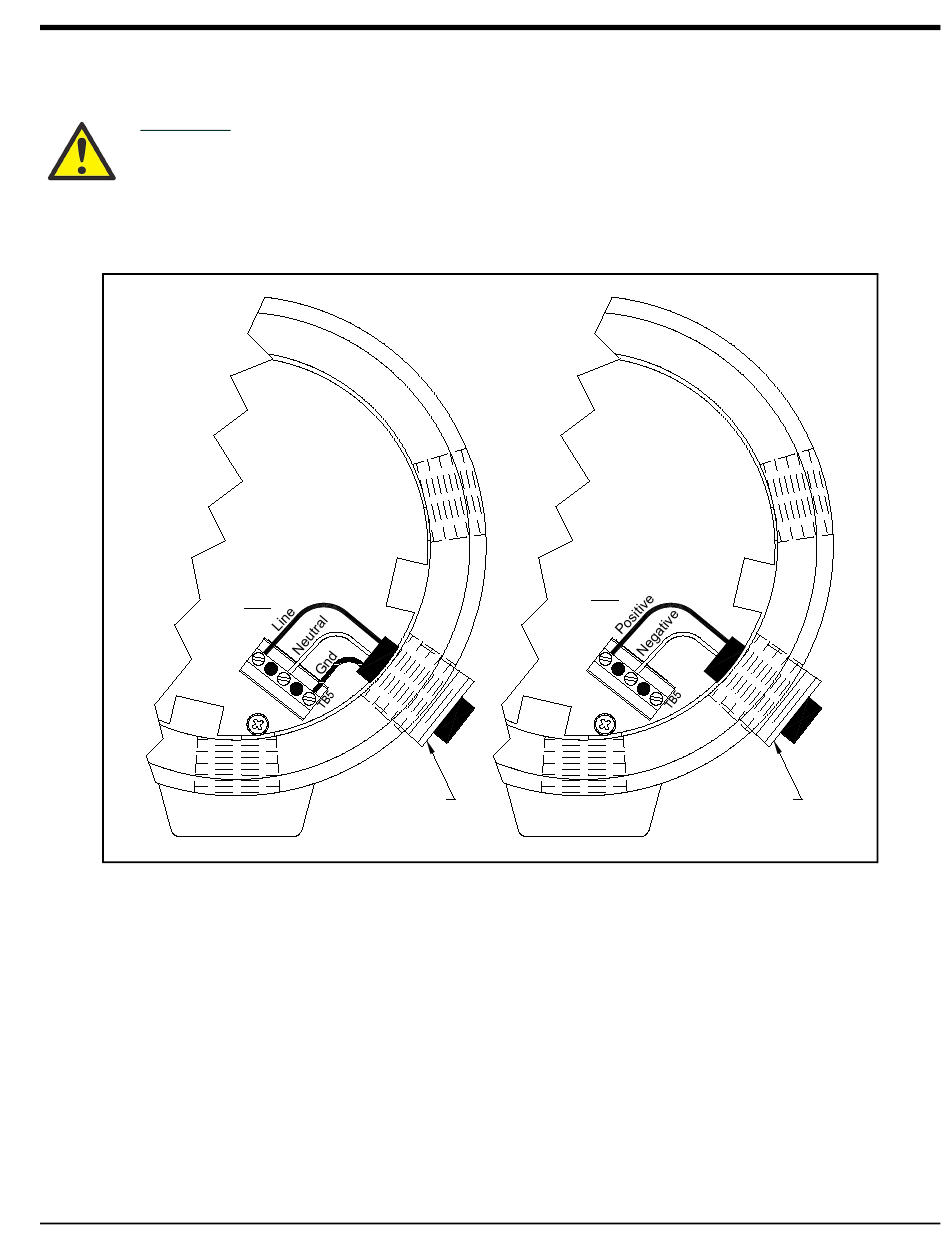

Figure 13: Enclosure #2 - Wiring the AC or DC Line Power
DC
1
2
3
Cable Gland
Chapter 1. Installation
17
