3.11

Displaying Measurements

Use PanaView to observe the sensor information on the computer screen in any combination of channels,
measurement modes, and measurement units in either a text format or a graphic format.
To set up the display, complete the following steps:
1.
Make sure the system is connected to your computer, the system and the computer are turned ON, and
PanaView is up and running.
2.
File
In the
menu, open a
3.
Under
Output
select either
4.
Click on the + sign before each level to open it. See Figure 61 below and Table 9 on page 18 for details on the
available options.
Sentinel™ User's Manual
New Meter Browser
.
Graphing/New
or
Text Display

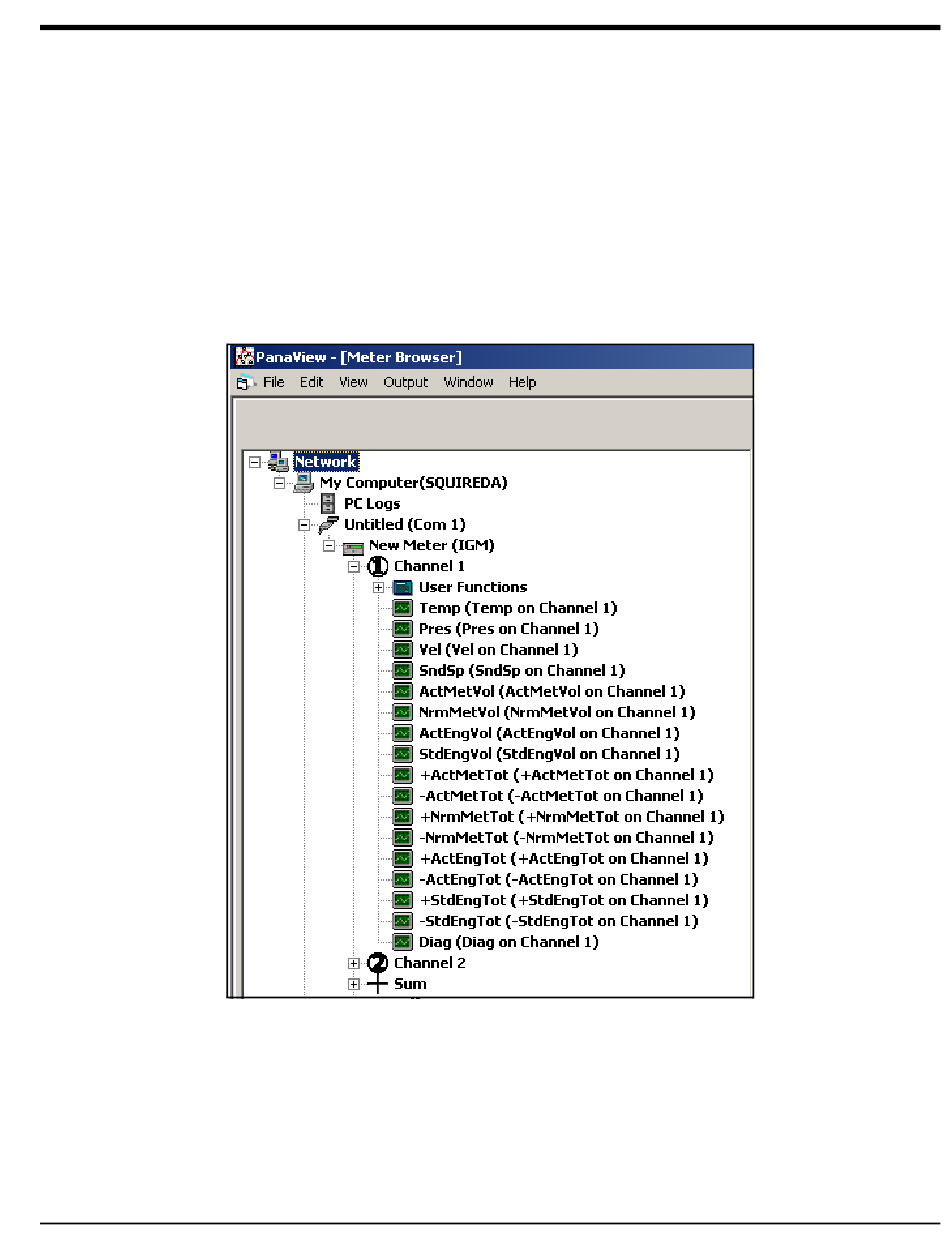

Figure 20: PanaView Output Menu
, whichever is desired.
Chapter 3. Operation
79
