Chapter 3. Operation
3.4

Archiving Site Configuration Files

The meter has the ability to save configuration files to the PC for archiving. The archived files can be loaded into the
active configuration of the instrument as well. This functionality is available using the PanaView interface. To save the
current configuration of the instrument, select the meter in the PanaView Meter Browser. Using the mouse, right click
Site File
on the meter and select (see Figure 44 below).

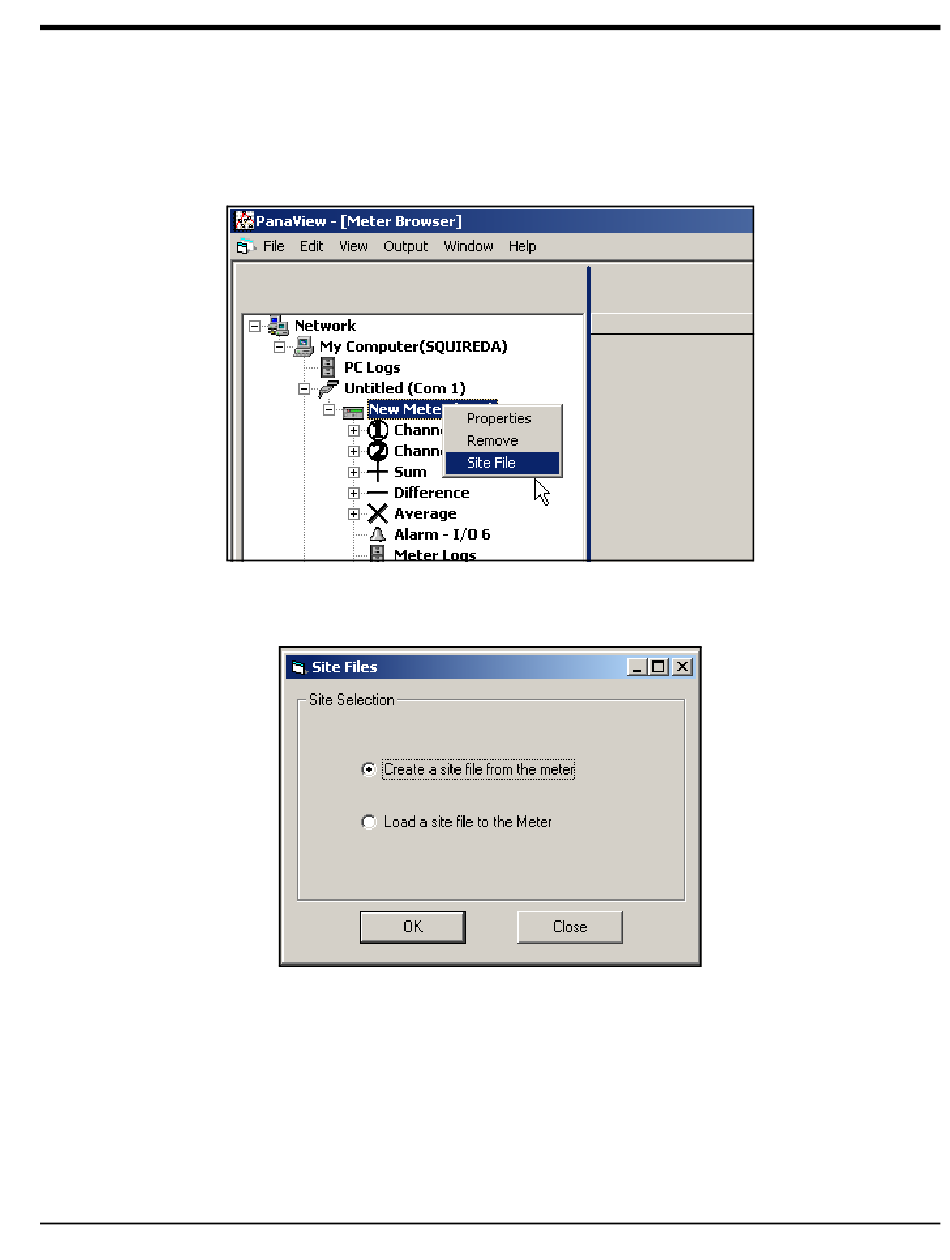

Figure 3: Selecting the Site File Icon
A dialogue box will appear (see Figure 45 below).
Figure 4: Site Selection Dialogue Box
Sentinel™ User's Manual 67
