Chapter 3. Operation
3.5

Programming a Fault Alarm/Flow Direction Indicator

The alarm output can be programmed as a fault alarm or a flow direction indicator. Programming is available using
the PanaView interface. To program the relay, expand the meter in the PanaView meter browser and double click on
Alarm
the
icon (see Figure 46 below).

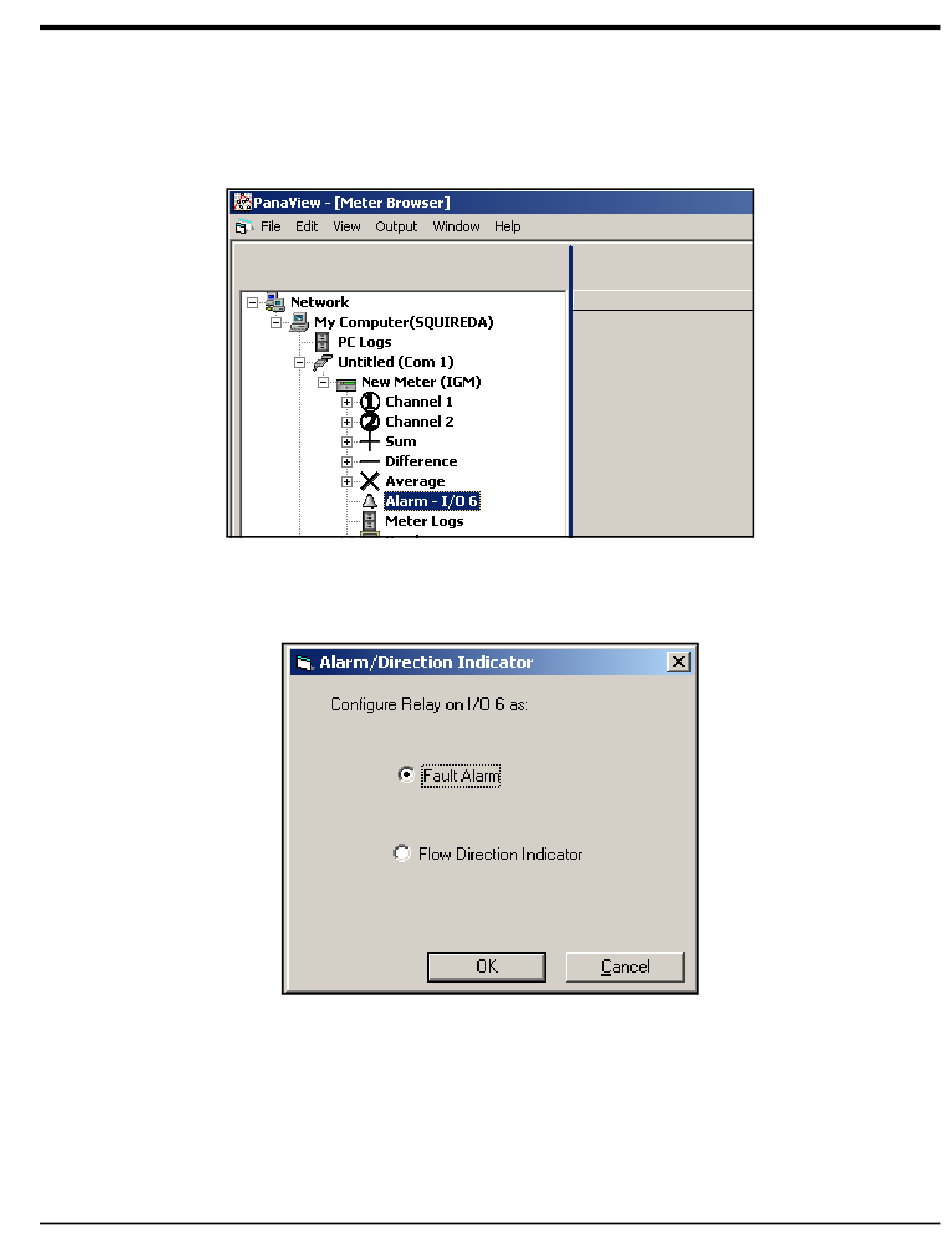

Figure 5: Selecting the Alarm Icon
Fault Alarm
A dialogue box will appear (see Figure 47 below). Select whether the relay should be configured as a
or as
OK
Flow Direction Indicator
a
and click
.
Figure 6: Alarm/Direction Indicator Dialogue Box
Sentinel™ User's Manual
69
