Quadro's Graphical Interface

Administrator's Main Page

When the administrator logs in, the Quadro Management page is displayed with a table of active calls (including information about call peers, call
duration and start time) at the startup. Here the administrator may access the following settings and perform the actions:
By clicking on System, Users, Telephony, Internet Uplink or LAN Services the administrator may access the following settings in each respective
category and perform actions specific to each category.
S ystem Menu
1 9 4 H
•
S ystem Configuration Wizard
1 9 5 H
•
I nternet Configuration Wizard
1 9 6 H
•
S tatus
1 9 7 H
•
I P Routing Configuration
1 9 8 H
•
C onfiguration Management
1 9 9 H
•
E vents
2 0 0 H
•
T ime/Date Settings
2 0 1 H
•
M ail Settings
2 0 2 H
•
S MS Settings
2 0 3 H
•
F irmware Update
2 0 4 H
•
N etworking Tools
2 0 5 H
•
S NMP Settings
2 0 6 H
•
D iagnostics
2 0 7 H
•
A utomatic Provisioning
2 0 8 H
•
F eatures
2 0 9 H
•
U pload Language Pack
2 1 0 H
•
U ser Rights Management
2 1 1 H
The button Renew Wan IP Address appears on the administrator's main Quadro Management page if the Quadro device acts as a DHCP client.
The Renew WAN IP Address button is used to obtain a new WAN IP address in cases such as the Quadro being moved to another network.
The buttons Establish Your Internet Connection Now and Terminate Your Internet Connection Now occur on the Quadro Management page if
PPPoE is used as WAN interface protocol.
The link Please Check Your Pending Events will be displayed on the Administrator's Main Menu page when a new system events occurs. The
link also leads to the Events page that can be also accessed from the System menu.
The list of Users currently logged into the system is seen in the lower right corner of the Administrator's Main Menu. Information about the IP
address user accessed Quadro GUI from, the username logged in and the time until the next automatic logout is also seen here. The current version
of the Quadro's firmware and of its boot loader is also available here. The idle session timeout is set at twenty (20) minutes. If no action is performed
within twenty (20) minutes, the user will be automatically moved to the Login page and will be requested to login again.
The link Refresh in is displayed in the upper right corner beside the field displaying the number of seconds remaining until the next refresh and it is
used to perform a manual reload of the page. If a page with a Refresh counter is left opened, the session time-out counter will periodically be
updated and the logout time will never expire.
Quadro2x, Quadro2xi; SW Version 4.0.x

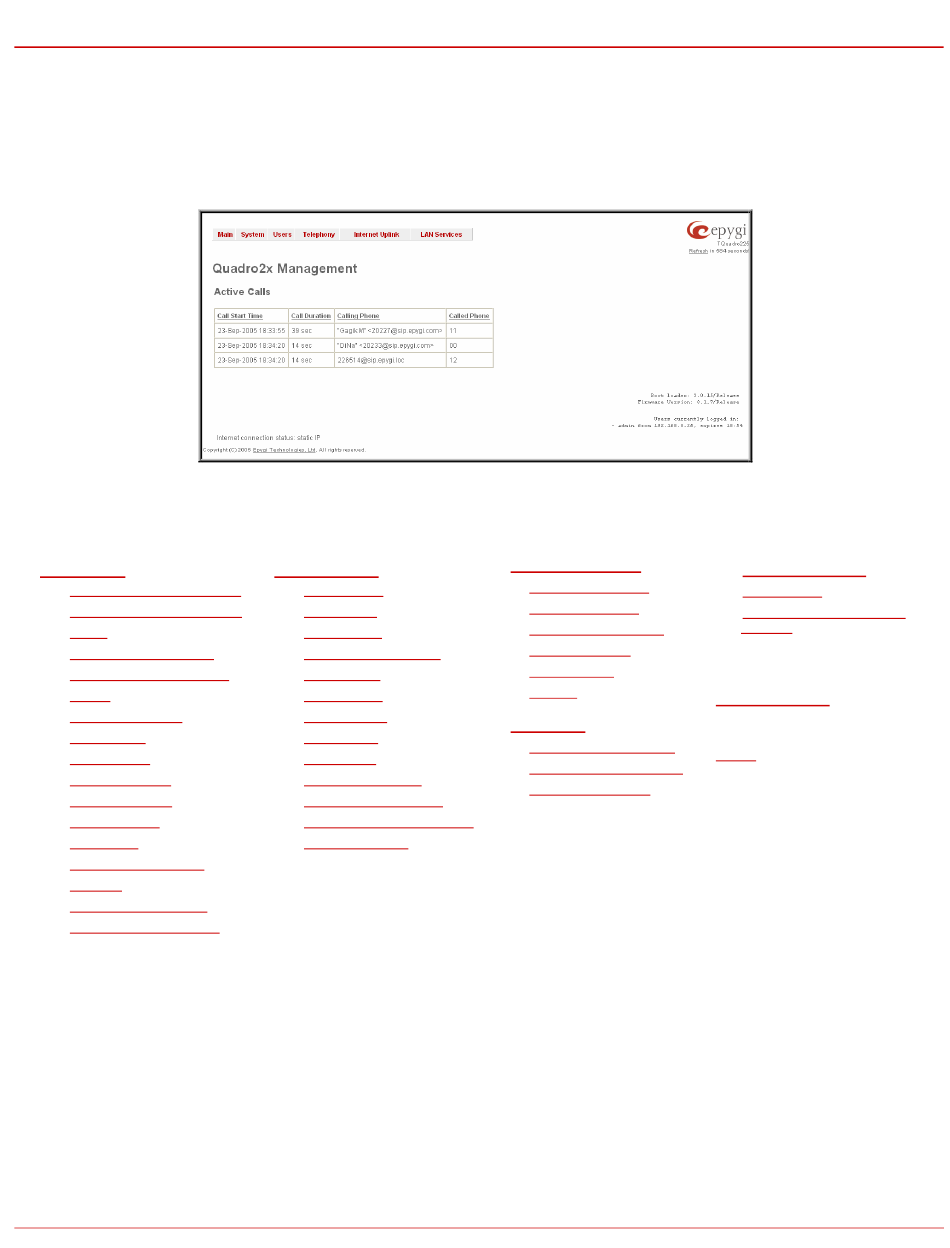

Fig. II-1: Quadro2x Management
T elephony Menu
2 1 2 H
•
C all Statistics
2 1 3 H
•
S IP Settings
2 1 4 H
•
R TP Settings
2 1 5 H
•
N AT Traversal Settings
2 1 6 H
•
L ine Settings
2 1 7 H
•
F XO Settings
2 1 8 H
•
I SDN Settings
2 1 9 H
•
G ain Control
2 2 0 H
•
C all Routing
2 2 1 H
•
V oIP Carrier Wizard
2 2 2 H
•
R ADIUS Client Settings
2 2 3 H
•
V oice Mail Common Settings
2 2 4 H
•
D ial Plan Settings
2 2 5 H
I nternet Uplink Menu
2 2 6 H
•
P PP/ PPTP Settings
2 2 7 H
•
V PN Configuration
2 2 8 H
•
D ynamic DNS Settings
2 2 9 H
•
F irewall and NAT
2 3 0 H
•
F iltering Rules
2 3 1 H
•
I DS Log
2 3 2 H
U sers Menu
2 3 3 H
•
E xtensions Management
2 3 4 H
•
R eceptionist Management
2 3 5 H
•
E xtensions Directory
2 3 6 H
Quadro's Graphical Interface
•
L AN Services Menu
2 3 7 H
•
D NS Settings
2 3 8 H
•
D HCP Settings for the LAN
2 3 9 H
Interface
R egistration Form
2 4 0 H
(in menu tree only)
L ogout
9 1 H 2 4 1 H
