The page to add a rule for Incoming Traffic/Port Forwarding
offers the following input options:
Service includes a list of possible services to be configured. All
user-defined services also will be displayed in this list.
Action includes possible actions to setup the rule.
Forward to IP requires the destination IP address where traffic
should be transferred to if it comes from the restricted host. The IP
address defined in this field will be ignored for blocked action of
the Incoming Traffic/Port Forwarding rule.
Note: It is not allowed to forward incoming packets when the NAT
service is disabled on the Quadro.
Port Translation text field is available for "Allowed" action only
and optionally requires the port number that will stand instead of
the original port number when incoming packet is being
forwarded. If this field is left empty, the original port number will be
used when forwarding the packet.
Restriction radio buttons:
•
Selecting Any blocks or allows all host IP addresses. This
selection is not present for the Management Access,
Blocked and Allowed IP List rules.
•
Selecting Single IP will require the IP address of the allowed
or blocked host.
•
Selecting IP/Mask will require the subnet to be allowed or
blocked, specified by an IP address and the Maskbits. The
following are Maskbit examples:
255.0.0.0= /8,
255.255.0.0 = /16,
255.255.255.0 = /24,
255.255.255.255= /32
•
Group indicates the user-defined groups that include IP
addresses that should to be allowed or blocked.
The Description field is used to insert an optional description of
the filtering rule.
To Add a Filtering Rule
1. Select the Filter link (Incoming Traffic/Port Forwarding, Outgoing Traffic, Management Access, SIP Access, Blocked IP List, Allowed IP List or
Restricting IPSec) to add a rule for it. The corresponding Filter table will appear in the same window.
2. Click Add on the Filtering Rules page. A page where a new rule may be added will appear in the browser window. The page will be named
corresponding to the selected filter.
3. Select a service name from the Service list to configure a rule for it. If the list has a default value, do not change the default values.
4. Select an action from the Action list that is used in the rule. If the list has a default value, do not change the default values.
5. Enter the IP address in the Forward to IP field if an Incoming Traffic Rule is to be added.
6. Choose the restriction type by selecting Any, SingleIP or IP/Mask and enter the required information in the text fields or select a group.
7. Insert a Description, if needed.
8. To add a rule with these parameters, press Save.
To Delete Filtering Rules
1. Select the Filter link to delete a rule from its table. The appropriate Filter table will appear in the same window.
2. Check one or more checkboxes of the corresponding rules that should be deleted from the rules table. Press Select all if all rules should to be
deleted.
3. Press the Delete button on the Filtering Rules page.
4. Confirm the deletion by clicking on Yes, or cancel by clicking on No.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

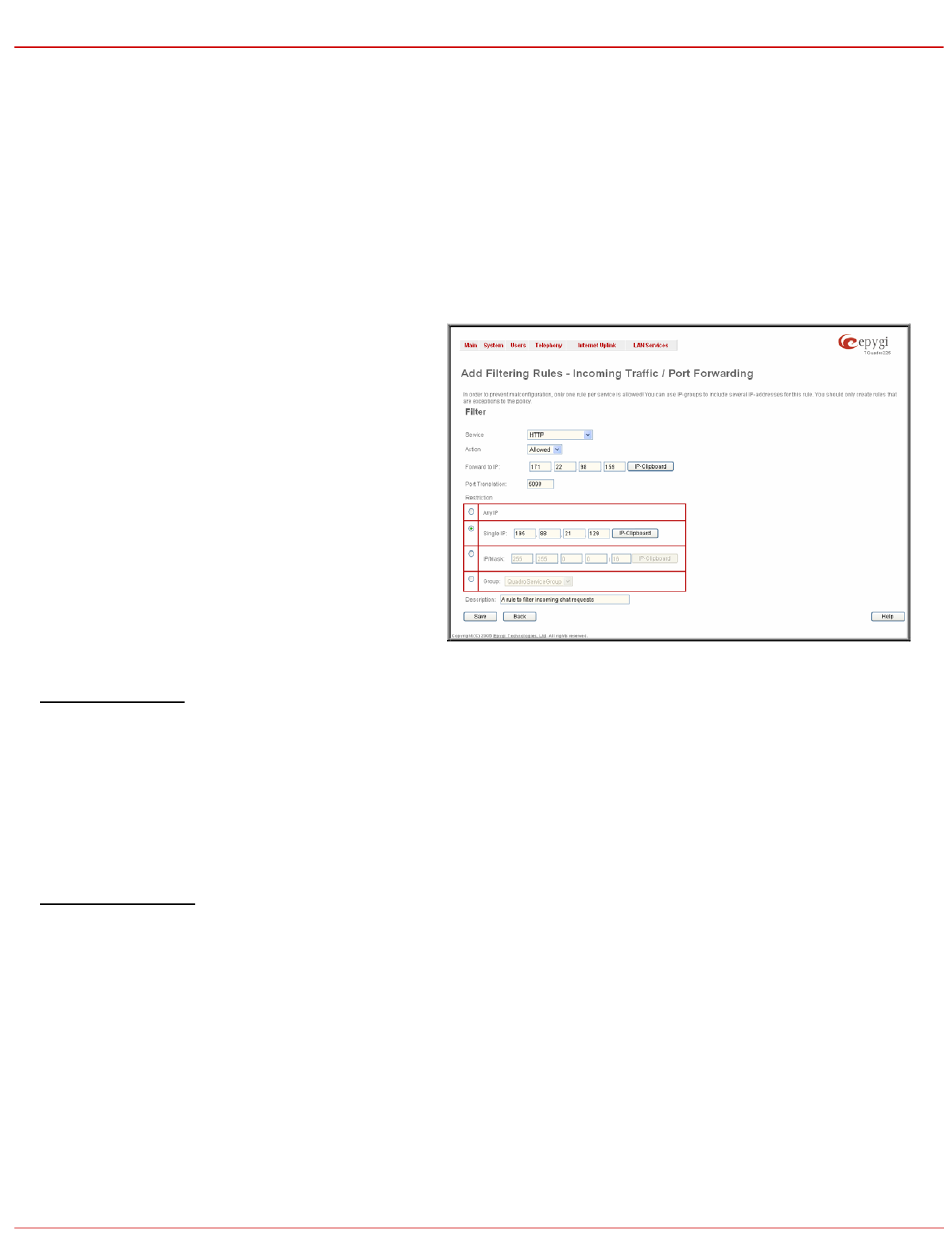

Fig. II-159: Filtering Rules - Page to add a rule for Incoming Traffic
