The Add VPN Route page offers the following components:
Route Via contains the available PPTP and L2TP connections on
the Quadro. A connection selected from this list will be used to
route the IP packet from the Quadro's LAN to the peer behind the
PPTP/L2TP tunnel.
Route To requires the IP address range of the possible peers
behind the PPTP/L2TP tunnel whereto the IP packets should be
routed.
The Enable and Disable functional buttons are used to activate or to deactivate the selected route(s). At least one route should be selected to use
these functions, otherwise the error message appears: "No record(s) selected."
To Add an IP Static Route
1. Select the IP Static Routes link on the Routing Configuration page.
2. Press the Add button on the IP Static Routes page. The Add Entry page will appear in the browser window.
3. Enter the destination IP address and subnet mask in the Route To text fields. Use the IP-Clip button to select a previously entered IP address.
4. Enter the router IP address into the Via IP Address text fields.
5. Press the Save button to make the static route with these settings.
To Add an IP Policy Route
1. Select the IP Policy Routes link on the Routing Configuration page.
2. Press the Add button on the IP Policy Routes page. The Add Entry page will appear in the browser window.
3. Specify the policy routing rule priority in the Priority text field.
4. Enter the packet source IP address and subnet mask in the From text fields. Use the IP-Clip button to select a previously entered IP address.
5. Enter the router IP address into the Via IP Address To text fields.
6. Press the Save button to make the policy route with these settings.
To Add a VPN Route
1. Select the VPN Routes link on the Routing Configuration page.
2. Press the Add button on the VPN Routes page. The Add Entry page will appear in the browser window.
3. Choose the VPN connection from the Route Via drop down list.
4. Enter the destination IP address and the subnet mask into the Route To text fields.
5. Press the Save button to make the VPN route with these settings.

Configuration Management

The Configuration Management page assists the administrator with managing the system configuration settings and voice data. For example, the
administrator is able to backup and download the settings to a PC and then upload and restore them back to the Quadro. Additionally, this page
provides the possibility of restoring the factory default configuration settings.
The Backup & Download all config & voice data link
generates a backup file with all configuration settings and
user uploaded greeting messages. It opens a file chooser
window for immediate download to the users PC.
Attention: Configuration and voice data cannot be backed
up if the size of voice data is too large. In this case, to be
able to backup configuration and voice data on the Quadro,
please remove some user defined system messages (by
restoring the default ones, see chapter
Messages), or remove
E xtensions Management table.
2 5 9 H
The Upload & Restore all config & voice data link opens a page that has a Browse button, (which opens a file chooser to select a backed-up file)
and a Configuration to Upload field requiring the file path to upload and to restore it immediately. Pressing Save will restore the selected backup
file, and delete all current user defined greetings and replace configuration settings.
The Use Default functional button resets all configuration settings and restores the board's factory default configuration. By restoring the default
configuration you will replace your current configuration, lose all voice mails and reboot the device. You will not be automatically redirected to the
GUI start page. After the successful reboot you will need to enter into the management page and login again to access the Quadro's configuration. A
warning message will ask you to confirm your selection before restoring the default configuration.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
Update System
some extensions from the

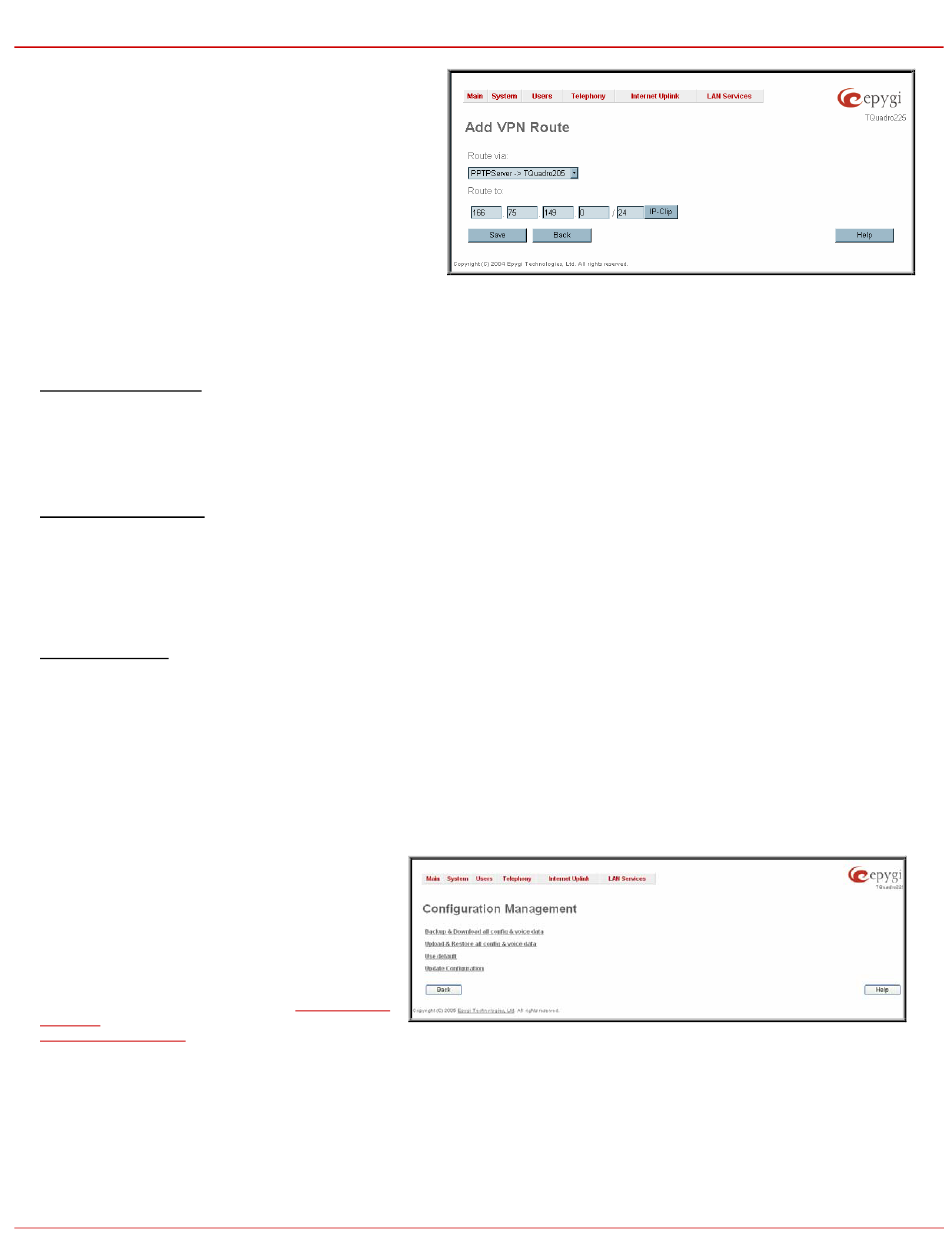

Fig. II-27: Add VPN Route page
:
