The Line Status for ISDN Trunk displays the state of the B1 and B2
channels and the information about the active calls on them. This page
includes a group of static and dynamic parameters. Static parameters are
always displayed. Dynamic parameters appear only when an event takes
place on the channel.
Static Parameters:
•
B channel - the state of the channel (enabled or disabled)
•
State - the current state of the channel (free, busy or N/A)
Dynamic Parameters:
•
Caller Party - this parameter appears when a call is received and
indicates the caller address
•
Called Party - this parameter appears when a call is placed and
indicates the destination address
•
Call Duration - current call duration (in seconds)

Memory Status

The Memory Status page includes tables with the available User Space
information for each extension. These tables display the space used by the
voice mailbox and uploaded/recorded system greetings. It shows the free
and total space (counted in minutes/seconds) for every extension. This
page includes the following information:
Memory Size shows total memory space (counted in minutes/seconds)
available on the Quadro and assigned to all extensions.
The table's links lead the administrator to the extension settings page
where User Space may be altered.
The System Memory row indicates the space occupied by the universal
extension recordings. Link refers to the
Recordings page where universal extension system messages may be
uploaded.
Call Statistics shows the current number of calls with recorded statistic
entries.

Hardware Status

The Hardware Status table displays a list of the hardware devices
present and currently available on the Quadro board. The hardware
device version number and additional comments about its state are
indicated here.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
U pload Universal Extension
2 5 7 H

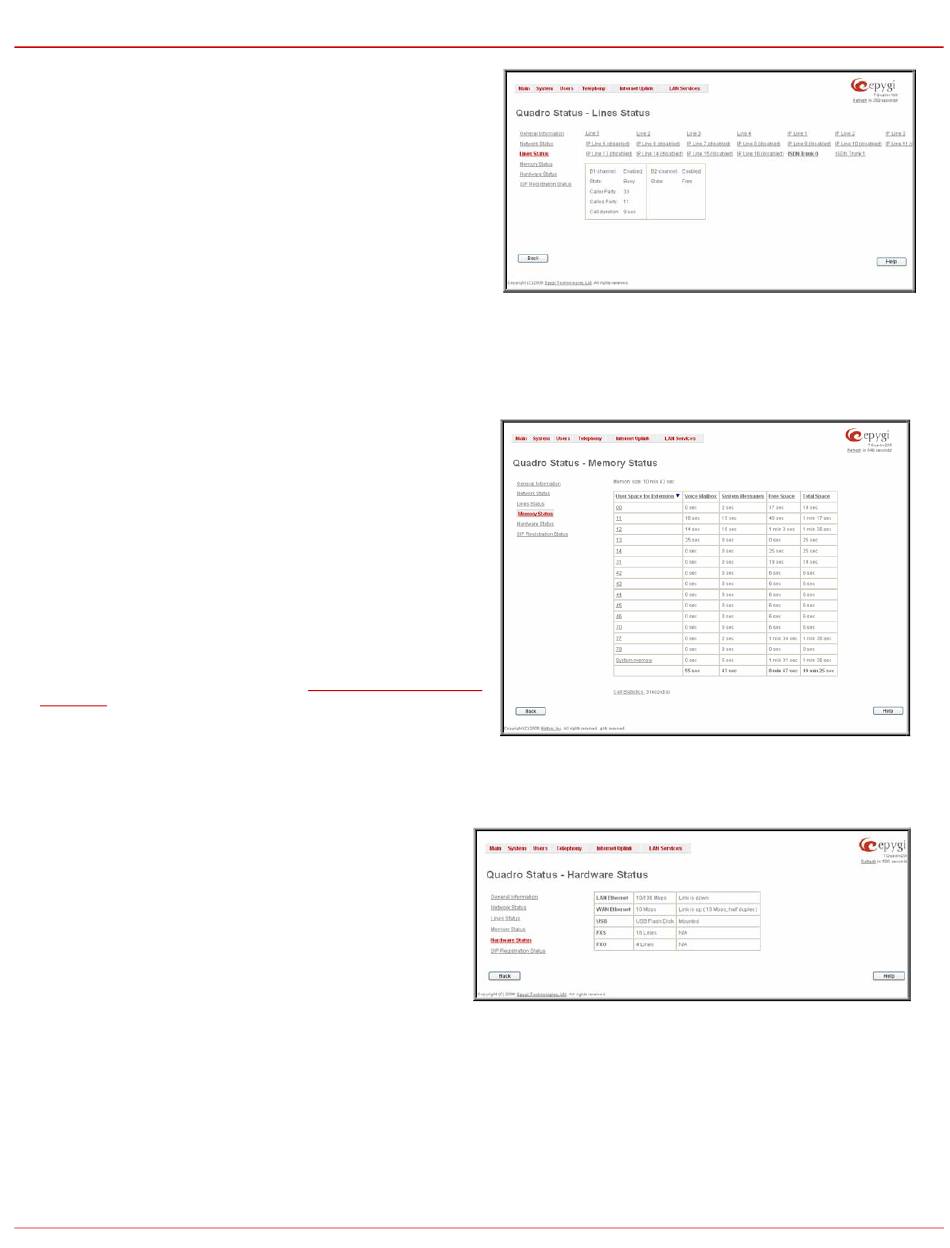

Fig. II-18: Lines Status page
Fig. II-19: Memory Status page
Fig. II-20: Hardware Status page
