Quadro's Graphical Interface

Administrator's Main Page

When the administrator logs in, the QuadroM Management page is displayed with a table of active calls (including information about call peers, call
duration and start time) at the startup. The number of total active calls is displayed above the table. The button Terminate next to each active call is
used to terminate the corresponding call. The Start Recording button next to each active call (except for calls to Auto Attendant) is used to manually
start the recording of the corresponding call. Once the call recording is started, the button changes to Stop now used to manually stop the call
recording. The call recording can be restarted again if needed.
Here the administrator may access the following settings and perform the actions:
By clicking on System, Users, Telephony, Internet Uplink or Network the administrator may access the following settings in each respective
category and perform actions specific to each category.
The Install Checklist option in the Main Menu opens a page that lists the most useful actions and the corresponding hyperlinks for the Quadro's
initial setup and configuration procedure. From this page you can be linked to the appropriate pages where the corresponding configuration can be
done. Here, you can also save your progress of Quadro's setup by selecting the corresponding action's checkbox and pressing Save.
System Menu
•
System Configuration Wizard
•
Internet Configuration Wizard
•
System Security Management
•
Status
•
IP Routing Configuration
•
Configuration Management
•
Events
•
Time/Date Settings
•
Mail Settings
•
SMS Settings
•
Firmware Update
•
Networking Tools
•
SNMP Settings
•
Diagnostics
•
Features
•
Upload Language Pack
•
User Rights Management
•
Redundancy Settings
The functional button Renew Wan IP Address appears on the administrator's main Quadro Management page if the Quadro device acts as a
DHCP client. The Renew WAN IP Address button is used to obtain a new WAN IP address in case, e.g., the Quadro moves to another network.
The functional button Establish Your Internet Connection Now respectively Terminate Your Internet Connection Now occurs on the Quadro
Management page if PPPoE is used as WAN interface protocol.
The link Please Check Your Pending Events will be displayed on the administrator Main Menu page if new system events exist. The link leads to
the Events page that can be also accessed from the System menu.
The list of Users currently logged into the system is seen in the lower right corner of the Administrator's Main Menu. Information about IP address
user accessed Quadro GUI from, the username user is logged in and the time until the next automatically logout is provided herein. The current
QuadroM 32x/8L/26x/12Li/26xi; (SW Version 5.2.x)

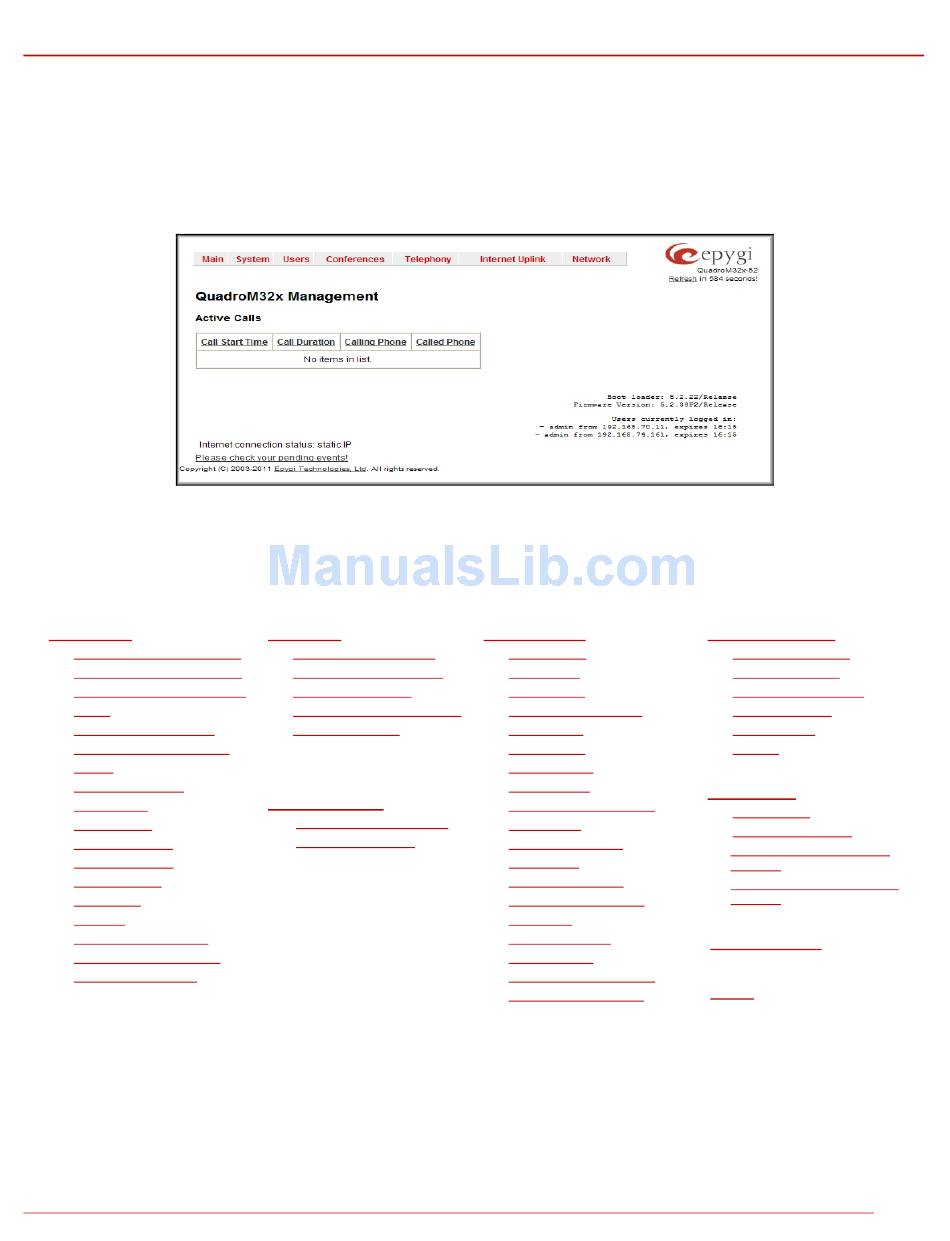

Fig. II: 1: QuadroM Management
