Quadro Baseline
Static Parameters:
Extension shows the extension number of the selected telephone line.
Display Name shows the corresponding name.
Phone State may have the value on hook or off hook.
Number of Active Calls shows the number of calls that are currently
present on the phone.
Dynamic Parameters:
Call State shows the current state of the extension (in voice mail, in
call, waiting, busy, call out, ring in, etc.).
Caller Party appears when a call is received and indicates the caller
extension and the IP address or a phone number, depending on type of
call.
Called Party appears when a call is placed and indicates the
destination extension and the IP address or a phone number,
depending on type of call.
Call Type shows whether the call is Internal or External and whether it
is a PSTN call, PBX call or IP call.
Call Start Time shows the call start date and time.
Call Duration shows the current call duration.
RX Codec shows the codec used to encrypt the incoming packets. TX
Codec shows the codec used to encrypt the outgoing packets. If RX
and TX codecs are the same, only one Codec field will be displayed.
The list of supplementary services provides the following additional status
information for each telephone line: Enabled or Disabled.
For Incoming and Outgoing Call Blocking, Speed Calling, Hiding
Caller Info, Voice Mailbox and Group List services, the number of
Entries will be displayed in the corresponding service table. For Voice
Mail Service, the voice mailbox configuration mode is displayed here.
This allows administrator to view the status and to be notified about
services running on Quadro for every line. The services are designed as
links that guide the administrator to the corresponding service page of the
selected user.
The Lines Status table of each FXO Line provides information about the
Allowed Call Types, the extension number (attendant or routing client), to
whom the Incoming Call is Routed To and the State of the line (Free or
Busy).
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

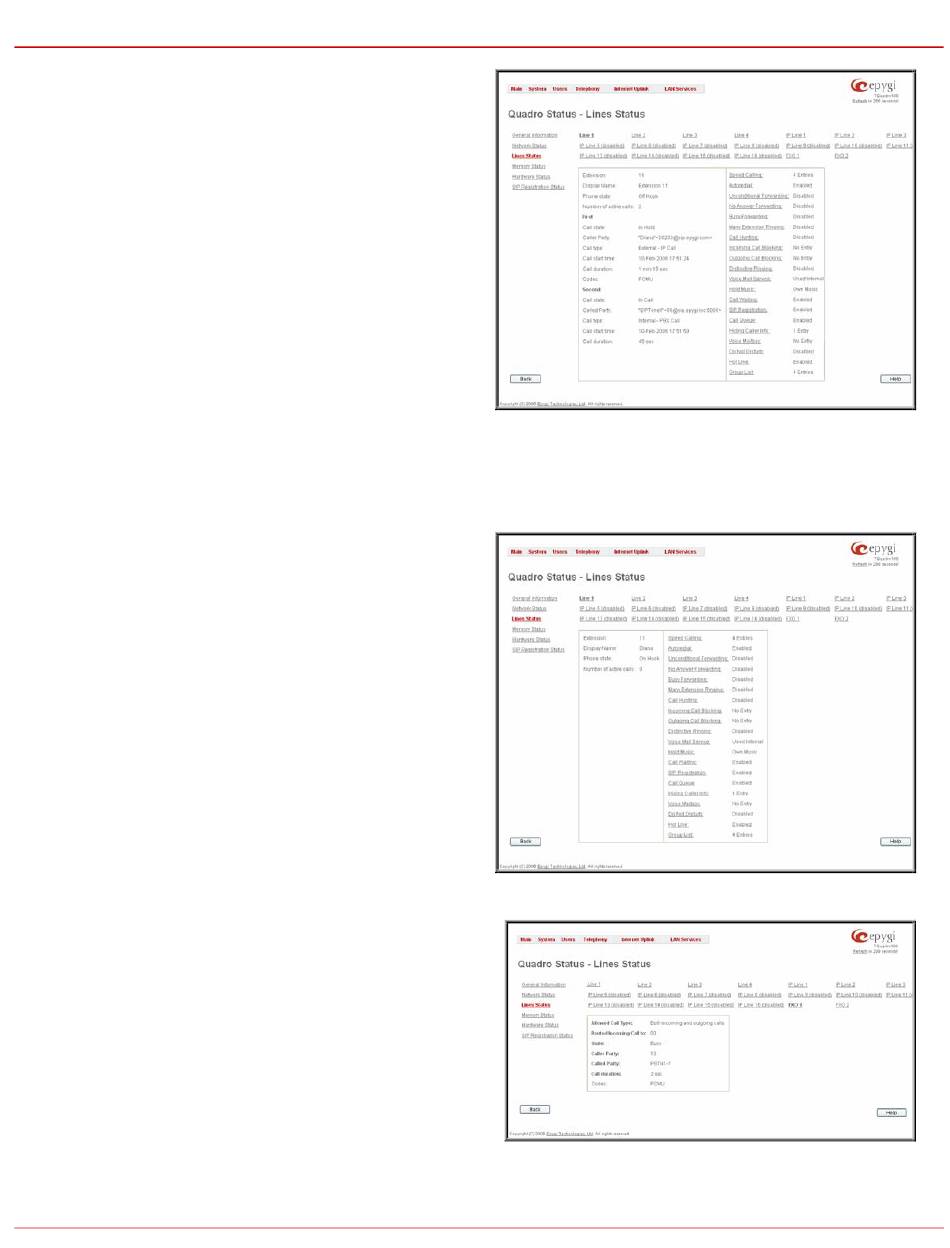

Fig. II-15: Lines Status - Lines Status page upon established call
