Quadro Baseline
Please Note: Applying firewall rules will prevent the establishment of new connections that violate the rules. Applying rules does not kill existing
connections that violate the rule.
View All displays all configured filters specified by their State
(enabled or disabled), the selected Service, the set Action
(allowed or blocked), the IP addresses the filters apply to (if
Restricted) and the destination of port forwarding (Redirect to,
in case of Incoming Traffic/Port Forwarding). Since it is read-
only, no modifications are allowed and no functional buttons are
available.
The Incoming Traffic/Port Forwarding filter is for incoming
traffic. The rules here allow or deny systems on the Internet to
reach the services of Quadro's LAN. The NAT service should be
enabled on the Quadro to provide the possibility of Port
Forwarding in the Incoming Traffic/Port Forwarding filtering
rules. The Port Forwarding function will be unavailable if NAT is
disabled on the Quadro.
The Outgoing Traffic filter is for outgoing traffic. The rules here
allow or deny Quadro's LAN users to reach external services.
Management Access is used to enable management access to
the Quadro from the Internet. A host on the Internet can be
allowed to reach the Quadro.
SIP Access is to allow or deny the SIP access to or from the
particular SIP servers, SIP hosts or a group of them. The SIP
Access filtering rule may prevent or allow incoming or outgoing
SIP calls to or from specified SIP server(s) or host(s).
When Blocked IP List is used, traffic from specific hosts may be
blocked, no matter what services are opened in the other filters.
NO traffic will be allowed to the specified hosts. The Blocked IP
List service has a higher priority if the same host is also listed in
the Allowed IP List table.
Allowed IP List allows trusted hosts to reach your network and
vice versa. It is an exception to other rules and only all services
may be allowed for a single host.
Restricted IPSec - Generally hosts in a VPN are allowed to have
access to any service, i.e., no traffic will be blocked. They are
treated as if they were part of the Quadro LAN. However, this
service can be manually denied here.
The Filtering Rules page provides several links. Each link opens its specific parameters on the same page. Only Change Policy (see chapter
F irewall and NAT), Manage user Defined Services (see chapter
3 2 4 H
pages. The Filtering Rules page also includes the currently selected firewall security (Policy) level and its description.
The table displayed on the bottom of this page shows the filters selected above, specified by their State (enabled or disabled), the selected Service,
the set Action (allowed or blocked), the IP addresses the filters apply to (if Restricted) and the destination of port forwarding (Redirect to, in case of
Incoming Traffic/Port Forwarding). With the exception of View All, the table offers the following functional buttons:
•
Enable is used to enable the rule. If no records are selected the error message "No record(s) selected" will appear.
•
Disable is used to disable the rule. If no records are selected the error message "No record(s) selected" will appear.
•
Add opens a filter specific page where new rules may be defined by a Service, an Action, a Restriction to certain IP address(es) or IP groups,
and if adding a rule for Incoming Traffic/Port Forwarding, the destination IP address for Forwarding.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
S ervice Pool) and Manage IP Pool Groups (see chapter
3 2 5 H

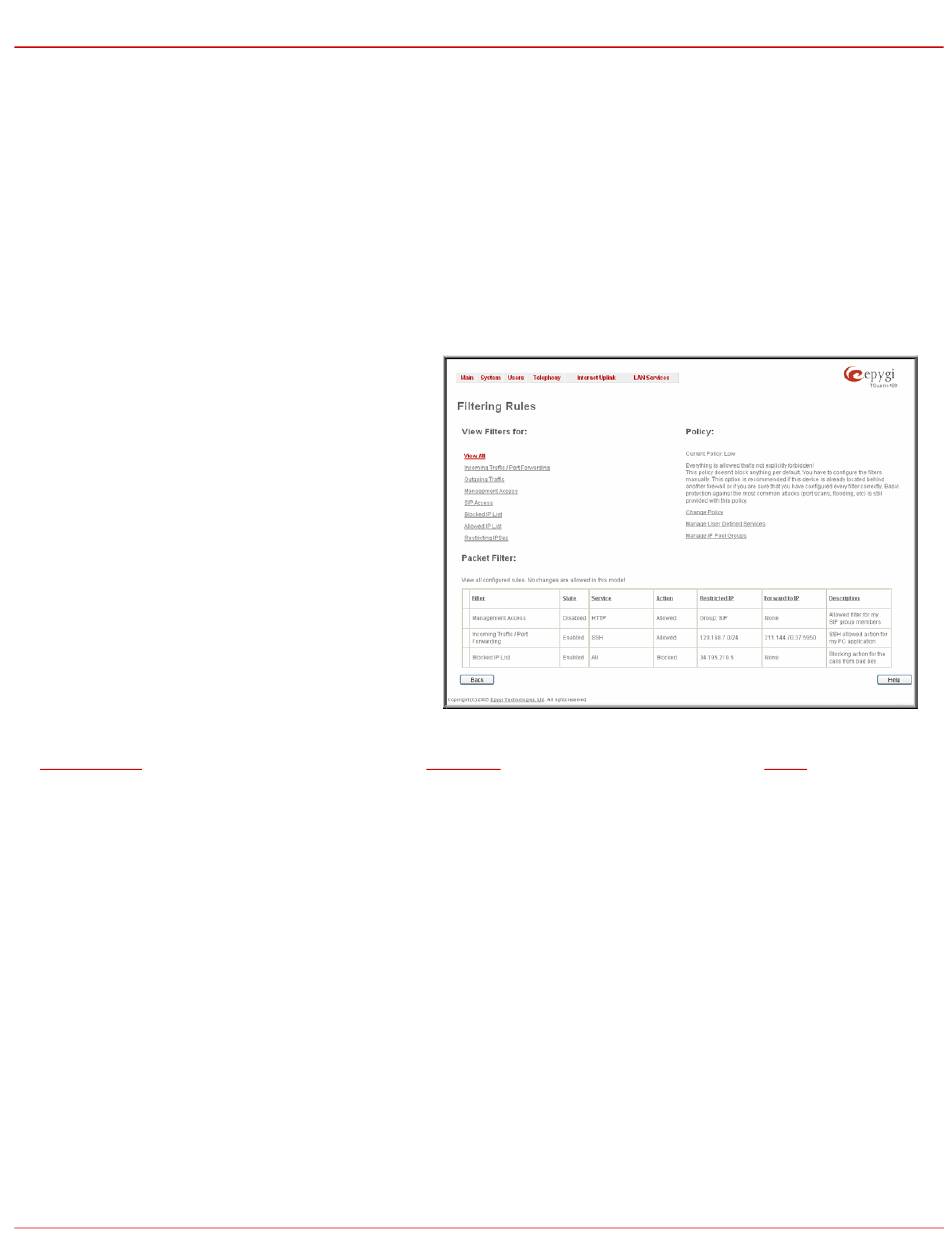

Fig. II-158: Filtering Rules page
I P Pool) lead to separate
3 2 6 H
