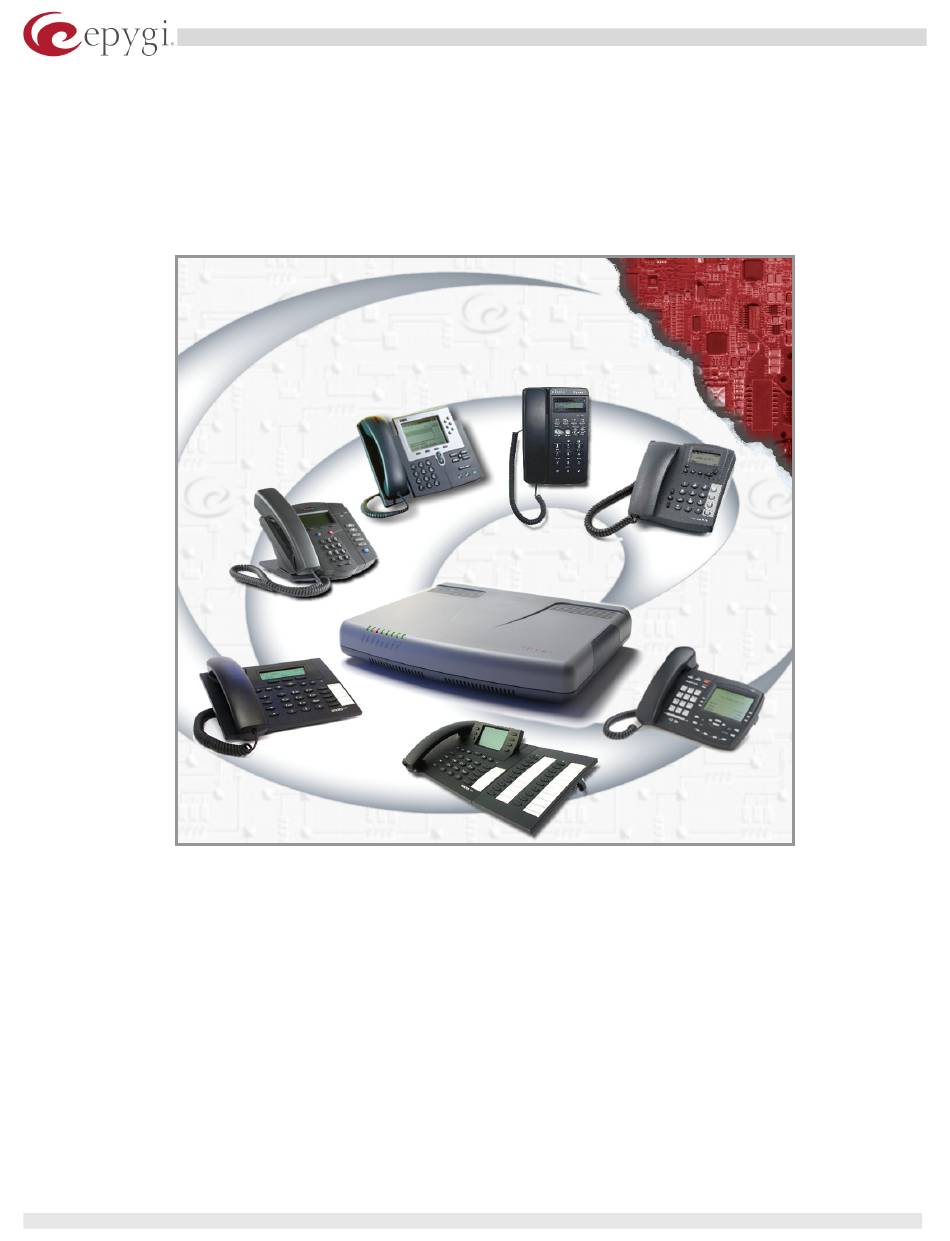

Using Quadro Features on IP Phones
on the Quadro LAN for 3.x Images
Revision
Quadro variants:
Quadro IP PBXs
valid for
SW-version:
tested with
SW version:
Filename:
Quadro features on LAN IP Phones.doc
Version:
Template:
Support Template.dot
Last saved:
6/3/2005 4:44 PM by Liana Badalyan
Please
Note:
THIS
PROPRIETARY INFORMATION OWNED BY EPYGI TECHNOLOGIES LTD.
ANY COPYING; USE OR DISCLOSURE OF THE DOCUMENT OR THE
INFORMATION
CONTAINED
PERMISSION OF EPYGI TECHNOLOGIES LTD. IS STRICTLY PROHIBITED.
Abstract: The document describes how to use the Quadro features on
supported SIP-phones. The configuration procedures of these phones are
beyond the scope of this document and are presented in separate
documents (refer to the Corresponding Phone Configuration for
Quadro 3.x Images).
Revised By
DOCUMENT
CONTAINS
HEREIN
WITHOUT
Date
CONFIDENTIAL
AND
THE
WRITTEN
