Epygi Quadro Quadro 16x Specifications

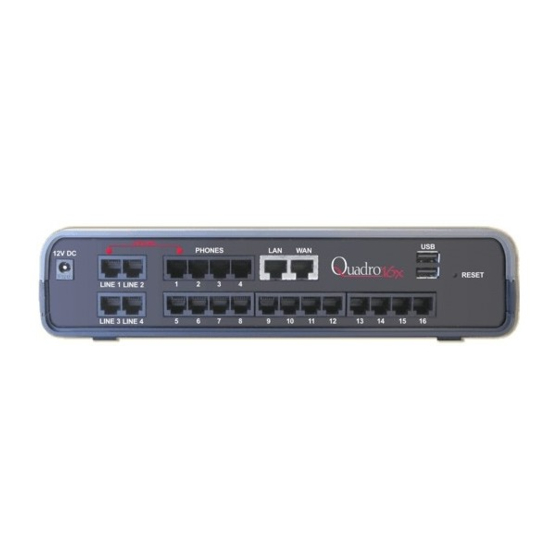

Quadro16x: The IP PBX with 4 FXO Ports, 16 FXS Ports - up to 50 SIP Phones
The Quadro16x is the fully-featured IP PBX for en-
hanced small businesses. Connected by four FXO
lines to the PSTN and over 10Base-T Ethernet to the
Internet, the Quadro16x allows to make up to 20 calls
in parallel.
Including 16 FXS phones, 50 fully-featured SIP phones
may be attached to Quadro16x's LAN port. In addi-
tion, the extensions assigned to a line may be mir-
rored and act as remote IP extensions. Wherever you
are, calls will reach you, and you will be able to make
calls as if you were in your office.
Fully-Featured IP PBX
The Quadro16x offers a multitude of features in-
cluding extensive PBX functionality, integrated
voicemail, cost saving call routing function-
ality, IP routing, SIP call signaling and much
more.
Integrated Internet Access Router
The Quadro16x IP PBX embodies a fully-
fledged Internet access router with fire-
wall security, including IDS, NAT, policy
and service based filtering as well as
stateful inspection. An extensive IPSec
VPN functionality with DES, 3DES and
Technical Data: Quadro16x
The Global Phone Network in a Box
AES encryption makes an additional contribution to
data security.
VoIP Carriers
The Quadro 16x IP PBX is easily applicable for VoIP Car-
riers as well as small businesses. For VoIP carriers, a
special wizard has been implemented that facilitates
the configuration of Quadro16x to work according to
individual requirements.
remote extensions
PSTN
N
L A
P H
up to 34 dditional SIP extensions
INTERNET
T
N E
E R
E T H
up to 50
remote IP extensions
O N
E S
16FXS phone lines with
complete SIP phone functionality
