The Add IP Static Route page offers the following components:
Route To requires the IP address and subnet mask for the
destination the IP packet should be forwarded to.
Via IP Address requires the IP address of the subsequent router
for IP packet forwarding to the specified destination.
Attention: The rule with the longest subnet (smallest IP range)
will take effect when having two or more IP Static routing rules
with the coinciding subnets.
IP Policy Routes allow IP packets forwarding to the specified
router depending on the source IP address as well as defining the
priority for the current routing rule.
The IP Policy Routes table displays all specified IP policy routes
with their parameters: Target State for the state of the route
(enabled or disabled), Actual State for the state of the route
connection (up, down or erroneous), Priority for the route priority,
Route From is where the subnet, routed packets come from and
Via IP Address is where the router IP address incoming packets
should be routed through.
Add opens the Add IP Policy Route page to establish a new
policy route.
Enable and Disable are used to activate or to deactivate the
selected route(s).
Raise Priority and Lower Priority are used to increase or
decrease the priority of the selected policy route(s) by one. At
least one route should be selected to use these functions,
otherwise the error message "No record(s) selected" will appear.
The Add IP Policy Route page offers the following input options:
Priority requires a numeric value (from 1 to 252) to define the
priority of the routing rule. The lower the number, the sooner the
routing rule will take effect (higher priority).
From requires the packet source IP address and subnet mask of
the specified destination to match with the rule.
Via IP address requires the IP address of the subsequent router
for IP packet forwarding.
The VPN Routes allow IP packets forwarding through the PPTP
and L2TP tunnels of the Quadro. If PPTP/L2TP connections do
not exist on Quadro, VPN routes cannot be generated.
The VPN Routes table displays all generated VPN routes with
their parameters: Target State for the state of the route (enabled
or disabled), Actual State for the state of the route connection
(up, down or erroneous), Route To for the subnet where the
incoming packets should be routed, Via Tunnel for the VPN
tunnel incoming packets should be routed through and Tunnel
State for the actual state of the route tunnel (up or down).
The Add button opens the Add VPN Route page where a new
VPN route can be generated.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

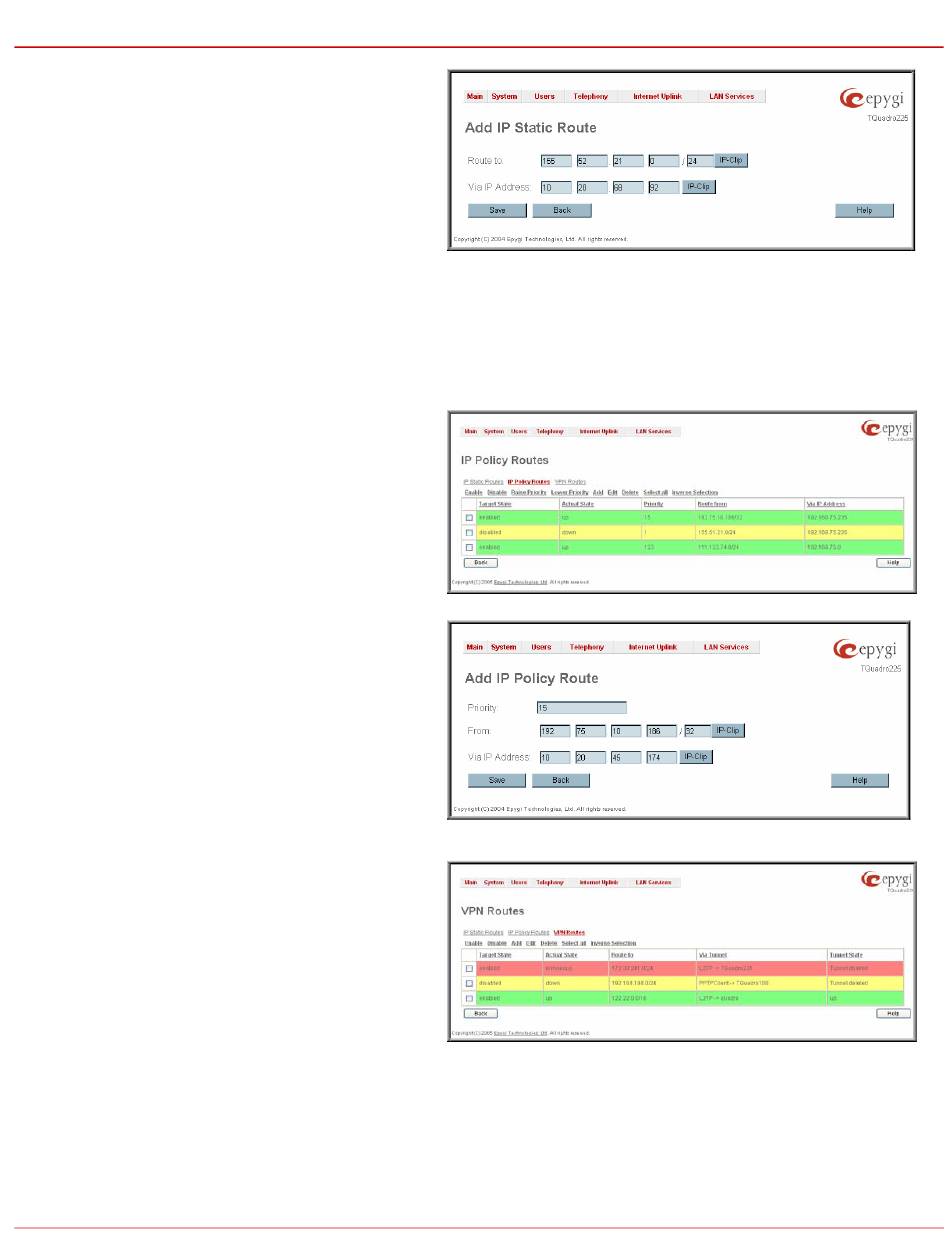

Fig. II-23: Add IP Static Routing page
