Network Status

The Network Status page includes the following information
about Interfaces:
Interface Name lists the Network interfaces available on the
Quadro (LAN, WAN, IPSec and a number of PPPs, depending
on the number of active PPP connections).
IP Address lists the IP addresses corresponding to each
network interface.
Subnet Mask lists the subnet masks corresponding to each
network interface.
Properties will list either the MAC address corresponding to
each network interface on the Quadro or the PPTP, L2TP and
IPSec peer IP address if an active VPN (IPSec or PPP) interface
exists.
Monitor includes links to survey LAN, WAN, IPSec and PPP
traffic correspondingly. The VPN traffic link will be displayed only
if a VPN has been configured. The selection of these links will
open a new window with a table of network traffic statistics on
the following selected interfaces:
•
Received Bytes
•
Received Packets
•
Received Errors
•
Received Drop Errors
•
Received Overrun Errors
•
Received MultiCast Packets
When opening the corresponding interface statistics window, no traffic values are displayed at first. After opening the window, the tables will serve as
a counter and traffic statistics will be updated every minute.
DNS Server, Alternative DNS Server and Default Gateway - these display the Quadro settings corresponding to what has been configured with
the S ystem Configuration Wizard.
2 5 5 H
Services (NTP Server and Client, DHCP Server and Client, DNS, Firewall, NAT, PPP) statuses: shows if they have stopped or if they are still
running.
The View VPN Status link refers to the
Transfer Statistics - link to the Transfer Statistics page.
The Transfer Statistics page shows a user-defined
statistics table with the transmit/receive value (criteria),
interface type and time period. It contains the following
components:
Time range of statistic table - the drop down list includes
the period (in days) statistics data that is to be collected and
the corresponding diagram charts that are to be built.
Interface - the drop-down list offer the values:
•
WAN - Wide Area Network (WAN) events only
•
LAN - Local Area Network (LAN) events only
When Show also as readable values checkbox is selected,
an additional table with statistics values will be displayed on
the next page.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
•
Transmitted Bytes
•
Transmitted Packets
•
Transmitted Errors
•
Transmitted Drop Errors
•
Transmitted Carrier Errors
•
Transmitted Collisions
V PN Configuration page where all VPN (IPSec, PPTP and L2TP) connections can be viewed and edited.
2 5 6 H

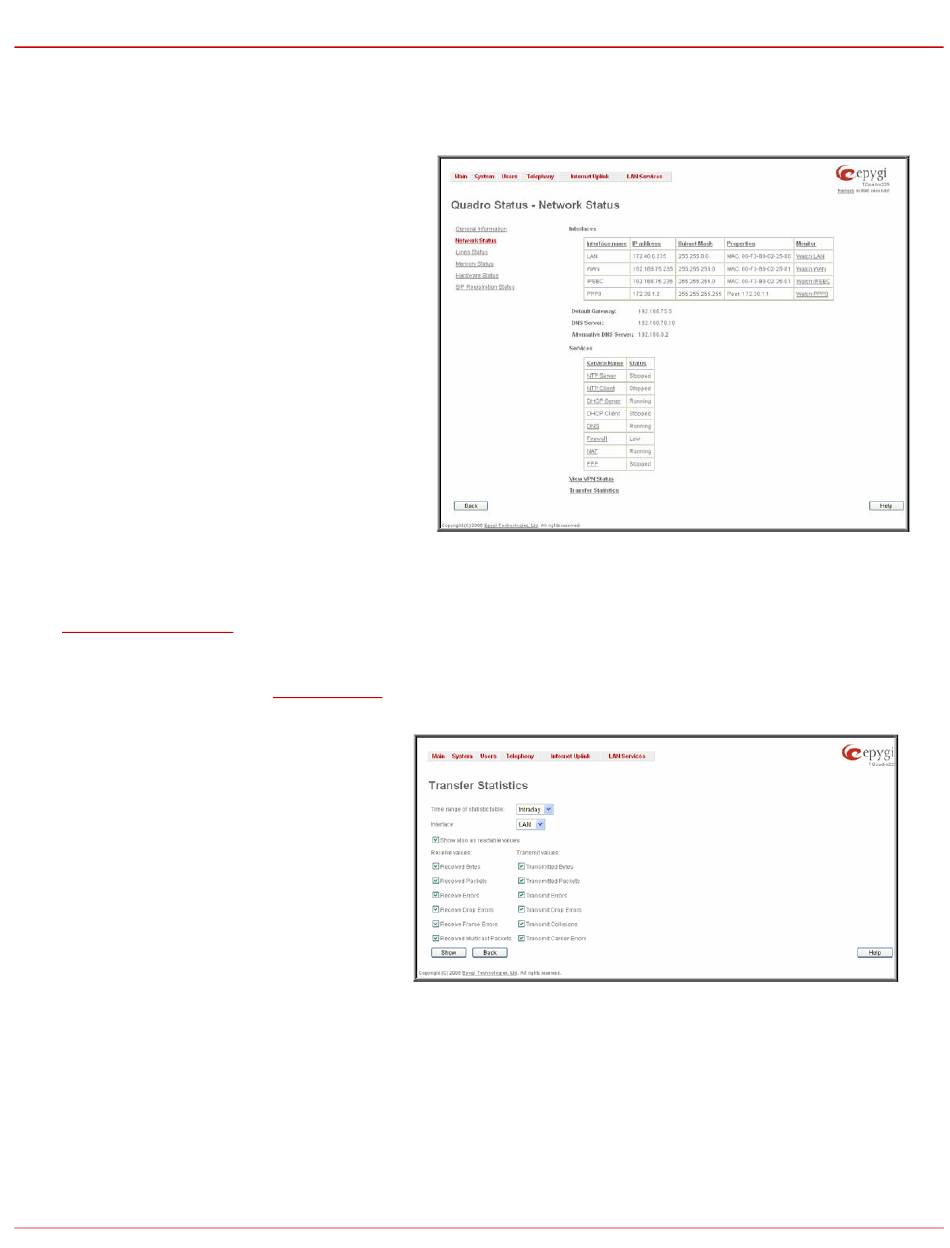

Fig. II-12: Quadro Status Network Status page
Fig. II-13: Transfer Statistics page
