Quadro Baseline

Features

This page lists all features, that may be activated by a software
key, characterized by a Feature Description and provided with its
Status:
•
No Key Found - the feature is currently not available
•
Reboot Needed - the feature key has been entered and
Quadro needs to be rebooted
•
Activated - the feature is now available on the Quadro
Following features may be activated via the software key:
•
IP Phone support - enables additional LAN-sided IP
phones on the Quadro. For Quadro2x, additional 12 IP
lines can be activated.
•
Debug – enables Telnet connection towards the Quadro
for debugging purposes.
•
QCM Support – allows Quadro's extensions to be used by
Quadro Communication Manager after QCM trial period
expires. Depending on the feature key type, additional 4 or
10 QCM licenses can be activated on the Quadro.
To enter a Feature Key, click Add. A page with the Feature Key
text field is opened. Enter the key and press Save. The status of
the selected feature entry will change to Reboot needed. Reboot
the Quadro and the feature will receive the status Activated.
To receive a Feature Key, register the Quadro device and send a
corresponding request to Epygi's Technical Support. This request
must include the Unique ID that is displayed in the Features page
above the features list.

Upload Language Pack

The Upload Language Pack page allows you to upload a custom
language for GUI and Voice Messages of the Quadro. The
language of voice messages can be switched to the custom
Language Pack language from the GUI setting page in the
Configuration Wizard. The language of GUI session can be
changed to the custom Language Pack language from the radio
buttons on the login page.
Uploading a Language Pack will cause the loss of the following
data:
•
All internally stored voice mail
•
DHCP leases
•
Call statistics
•
Pending events
•
Transfer statistics
Please Note: Only one custom Language Pack can be uploaded
at the time. Uploading a Language Pack will remove the existing
one (if applicable) and will reboot the Quadro.
The Current Language Pack field displays read-only information about the custom language pack uploaded. When no custom language pack is
uploaded, the field indicates "unknown".
Below, there is a Language Pack File to Upload text field that displays the selected image filename. The Browse button is used to browse the
custom language pack to be uploaded.
The Remove Current Language Pack link is only seen when a custom language pack is uploaded and is also used to remove it from the system.
Pressing Save will start uploading the custom language pack to the board. The next page displayed will show verification of the language pack being
uploaded and asks for confirmation to overwrite the existing custom language pack (if applicable).
After final confirmation, the system will upload the selected custom Language Pack and it will reboot.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
S ystem
2 7 0 H

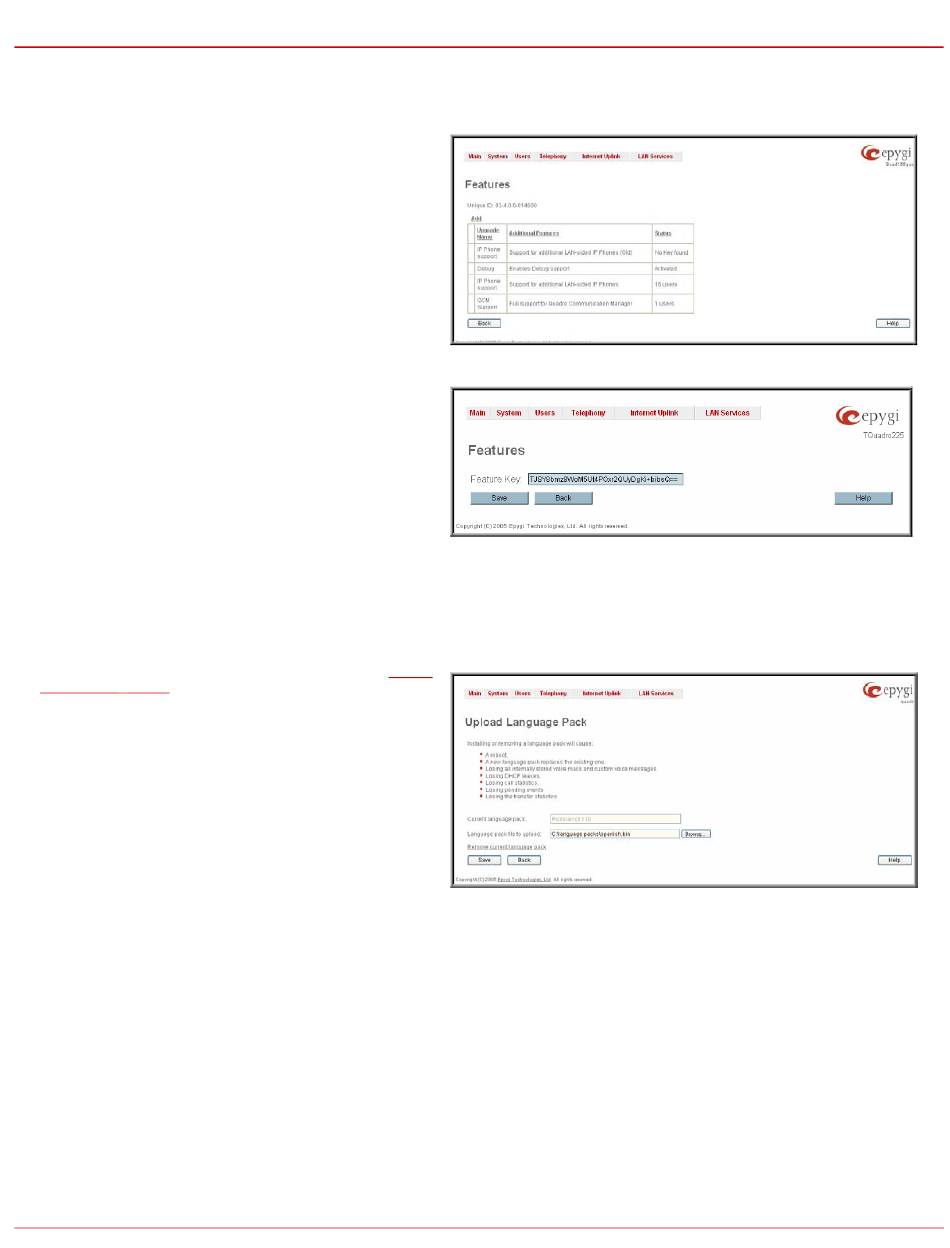

Fig. II-49: Features page
Fig. II-50: Features Add page
Fig. II-51: Upload Language Pack page
