Quadro Baseline
•
If the remote Voice Mail Server is combined with
the SIP Proxy server, it is recommended to select
Proxy Controlled
selection, SIP proxy will keep the recorded voice
mail on itself. When extension accesses his
mailbox by dialing *0, the call will be redirected to
the voice mailbox on the proxy server.
•
If the remote Voice Mail Server acts as a
standalone location
recommended to select Independent Mailbox
Type. With this selection, Quadro redirects the
recorded voice mails to the defined remote Voice
Mail server. When extension accesses his mailbox
by dialing *0, the call will be redirected to the
remote voice mail server.
For each of these selections, it is required to enter the
SIP URI of the Voice Mail Server where voice mails of
the corresponding extension will be collected.
7. Licensing
This group allows you to configure the extension to be used by
the Quadro Communication Manager
application.
By default, only 1 QCM license is available on the Quadro. More
QCM licenses can be activated by entering the feature key in
the F eatures page.
2 7 5 H
The page contains Enable QCM (Quadro Communication
Manager) license checkbox which allows you to set the
corresponding extension to be used by the QCM application.
When the checkbox is not selected on this page, the QCM will
be functional with the extension only during trial period.
Please Note: This checkbox can be simultaneously selected on
as many extensions as QCM licenses are available on the
Quadro.

Pickup Group Extension Settings

Pickup Group & Access List
The Pickup Group service is used to monitor calls addressed to a certain list of extensions and to pick up calls ringing on the listed extensions. This
service may be used when a group of extensions are located in the same area so the persons nearby can hear the ringing on one of the extensions.
This feature allows you to pick up the call ringing on a certain extension by dialing the number of the pickup extension.
The Pickup Group list is used to define the extensions that can be monitored by calling a certain pickup extension.
The Access List is used to define PBX, SIP or PSTN users that are allowed or forbidden to intercept calls ringing on extensions in the Pickup
Group.
If a user dials the pickup extension when several extensions of the pickup group are ringing, the first (oldest in time) call will be picked up. When the
user dials the pickup extension and no extensions of the pickup group are ringing, the "No call is available to pickup" message will be played to the
user. When the user that is not listed in the Access List dials the pickup extension, password authorization (of the pickup extension) will be required
to answer the call. When a denied user dials the pickup extension, the "Party does not accept your call" message will be played to the user.
For Pickup Group extensions, the Extensions Management - Edit Entry page consists of General Settings, SIP Settings and Advanced SIP
Settings pages. The SIP Settings and Advanced SIP Settings pages are the same as for regular extensions (see
described above. The General Settings page has a different content as follows:
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
Mailbox Type. With this
of voice mails, it is
(QCM) soft-phone

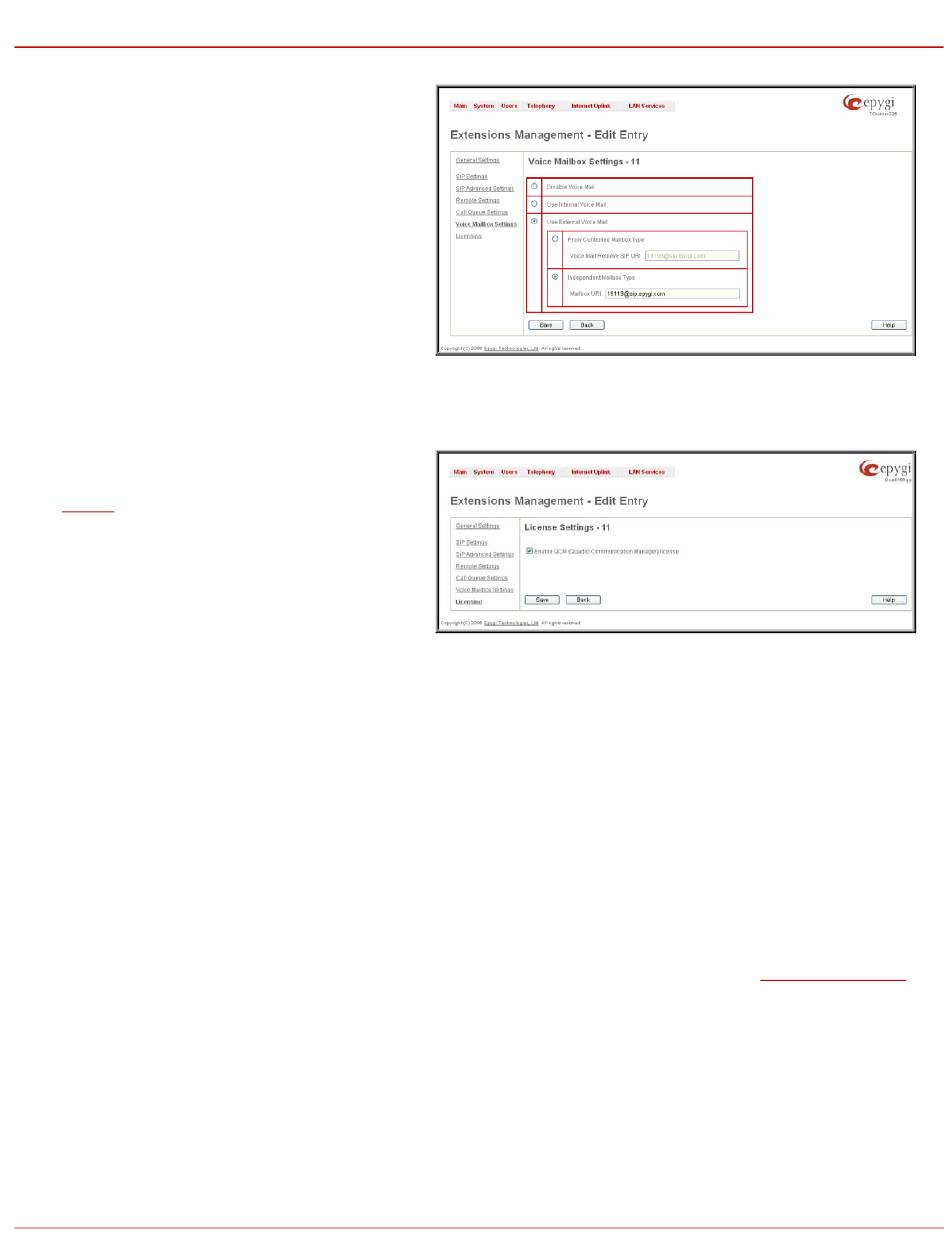

Fig. II-65: Extensions Management - Edit Entry – Voice Mailbox Settings page
Fig. II-66: Extensions Management - Edit Entry – Voice Mailbox Settings page
U ser Extension Settings)
2 7 6 H
