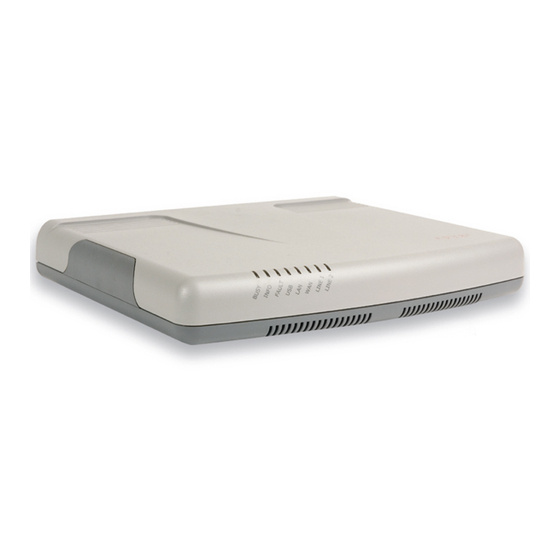

Epygi Quadro2x Configuration Instructions
Auto configuration of quadro lan ip phones
Hide thumbs
Also See for Quadro2x:
- Administrator's manual (151 pages) ,
- Installation manual (62 pages) ,
- Manual (44 pages)
Table of Contents
Advertisement
Quick Links
Epygi Technologies
Auto Configuration of Quadro LAN IP
Abstract:
on the Quadro and a SIP phone connected to the Quadro's LAN to
automatically configure the phone to work with the Quadro. The
Quadro supports the automatic configuration of certain SIP phones
only, which will be referred as supported SIP phones. The complete
list of the supported SIP phones is presented in this document.
Please Note:
This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of
the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.
Revision
Initial draft
Revised
Ready to layout
Quadro variants:
valid for
SW-version:
tested with
SW version:
Filename:
Auto Configuration of Quadro LAN IP Phones.doc
Version:
Template:
NEWsupportTemplate.dot
Last saved:
12/29/2005 12:04:00 PM by Liana Badalyan
This document describes the steps required to complete
Phones
Revised By
Liana Badalyan
Samvel Shabazyan
Aram Kalantaryan
Ashot Sargsyan
Liana Badalyan
Ashot Sargsyan
Date
Nov 28, 2005
Dec 1, 2005
Dec 28, 2005
Advertisement
Table of Contents
Related Manuals for Epygi Quadro2x
Summary of Contents for Epygi Quadro2x

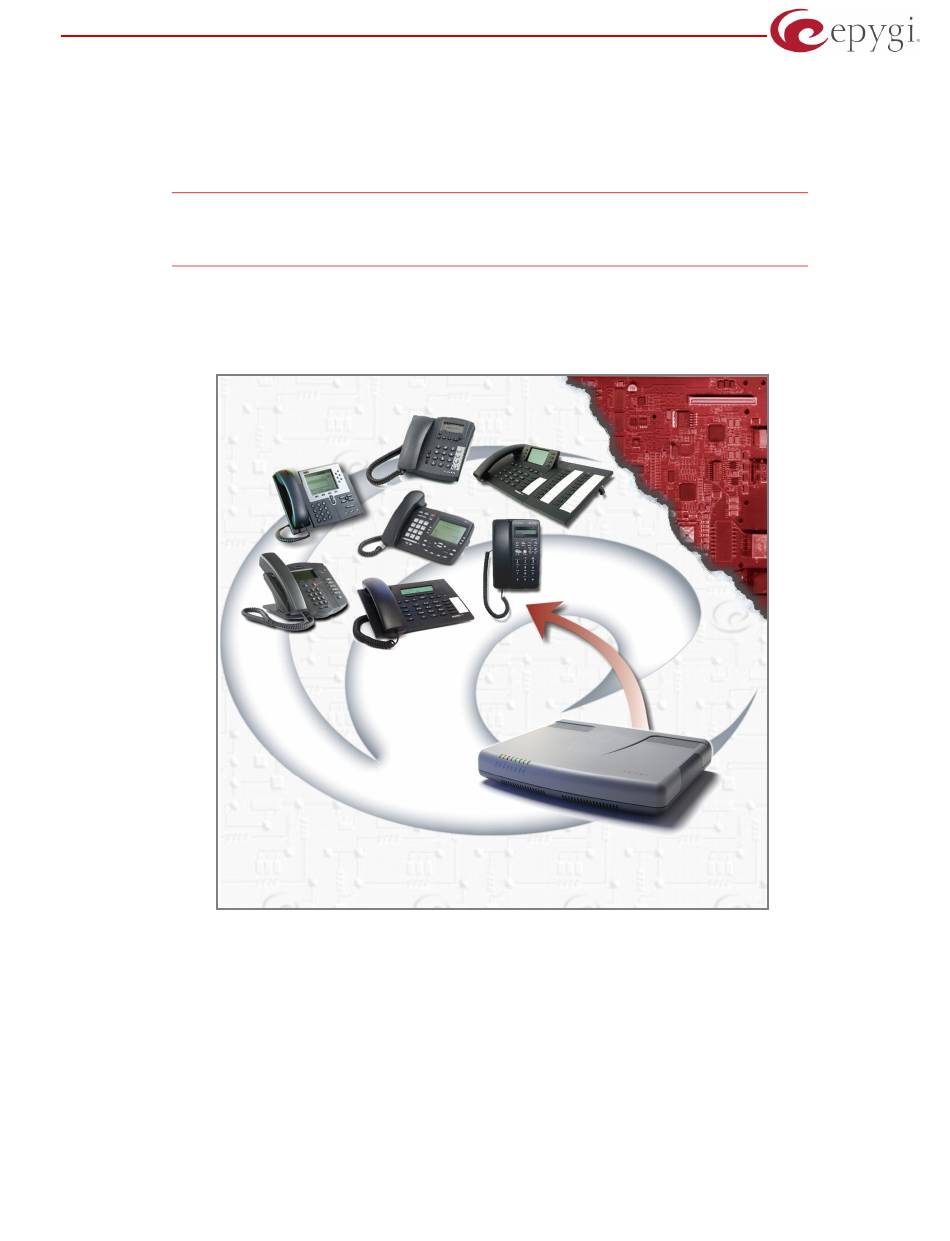

- Page 1 SIP phones is presented in this document. Please Note: This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.
-
Page 2: Table Of Contents
Epygi Technologies Auto Configuration of Quadro LAN IP Phones Table of Contents: Introduction ..................3 References..................3 Requirements and Preparations.............. 3 Supported SIP Phones ................4 IP Line and IP Phone Configuration ............5 Select an Extension with an IP Line Attached........5 Configure the Attached IP line ............ -
Page 3: Introduction
Auto Configuration of Quadro LAN IP Phones 1 Introduction Quadro2x/4x/16x provides the possibility of using IP phones along with standard analogue phones. IP phones are connected to the Quadro LAN interface via Ethernet and serve as additional extensions similar to onboard FXS extensions (see Figure 1). For how to use the Quadro PBX features on LAN IP phones, see Quadro features on LAN IP Phones V3-1. -
Page 4: Supported Sip Phones
Epygi Technologies Auto Configuration of Quadro LAN IP Phones 4 Supported SIP Phones Below is the list of SIP phones that can be automatically configured to work with Quadro2x/4x/16x: Vendor Model Software snom Application version 3.60s snom Application version 3.56m snom Application version 3.56m... -
Page 5: Ip Line And Ip Phone Configuration
Epygi Technologies Auto Configuration of Quadro LAN IP Phones 5 IP Line and IP Phone Configuration This section provides step-by-step instructions on configuring IP lines connected to the Quadro LAN. The following steps are detailed below: Select an extension with an IP line attached (or add an extension and attach an IP line to it). -
Page 6: Configure The Attached Ip Line
Epygi Technologies Auto Configuration of Quadro LAN IP Phones Figure 3 Extensions Management– Edit Entry – General Settings page Configure the Attached IP line To configure the attached IP line, follow these steps: From the Telephony menu on the main page of the Quadro’s web management, select Line settings. -
Page 7: Reset And Restart The Phone To Complete The Automatic Configuration
Epygi Technologies Auto Configuration of Quadro LAN IP Phones Based on the specified data, the Quadro generates a configuration file for the phone. So the next step is to prepare the phone to download this file from the Quadro. For most supported SIP phones, this step requires a factory reset or simply a reboot. -
Page 8: Snom190
Epygi Technologies Auto Configuration of Quadro LAN IP Phones Snom190 complete the automatic configuration on snom190, reset the phone to factory default settings: Press the F key to invoke the menu. Use the right or left navigation keys on the keypad of the phone to scroll to Configuration. -
Page 9: Snom360
Epygi Technologies Auto Configuration of Quadro LAN IP Phones Snom360 complete the automatic configuration on snom360, reset the phone to factory default settings: Press the Settings key on the keypad of the phone. Scroll to Reset Values and press OK (the key). -
Page 10: Ipdialog Sip Tone Ii (St201)
Epygi Technologies Auto Configuration of Quadro LAN IP Phones 5.3.9 IPDialog SIP Tone II (ST201) To complete the automatic configuration on IP Dialog SIP Tone II, reset the phone to factory default settings and enable the auto-configuration via built-in web server (by default the phone is not in auto- provisioning mode). - Page 11 Epygi Technologies Auto Configuration of Quadro LAN IP Phones Figure 5 IPDialog - Advanced page Figure 6 IPDialog - Servers page PAGE 11 29-Dec-05...
-
Page 12: Aastra 480I
Epygi Technologies Auto Configuration of Quadro LAN IP Phones 5.3.10 Aastra 480i To complete the automatic configuration on Aastra480i, restart the phone: Press the Options key on the keypad of the phone to enter the Options List. Use the up and down navigation keys to scroll to 10. Phone Status and press the Show soft key, or press to jump directly to this option. -
Page 13: Troubleshooting
Epygi Technologies Auto Configuration of Quadro LAN IP Phones 6 Troubleshooting The IP phone fails to reboot/restart Some IP phones may fail to reboot when the reboot is initiated from the phone’s LCD-based interface. The only way to recover the phone from the permanent reboot is to unplug the power cable from the base unit of the phone and plug it in again.
