The WAN Interface Configuration page may be used to modify the
MAC address of the Quadro. This might be necessary if the ISP
(Internet Service Provider) requires a specified MAC address, for
example, for authentication. This page offers the following
components:
MAC Address Assignment manipulation radio-buttons:
•
This Device turns to the default MAC address of the Quadro.
•
User Defined requires user defined MAC Address.
The MTU drop down list allows you to select the maximum packet
size on the Ethernet (in bytes). MTU is used to fragment the packets
before transmitting them to the network. The MTU preferred value is
dependent on the Ethernet connection . The default MTU size is 1500
Bytes for Ethernet and 1400 Bytes for PPPoE.

Status

The system status window displays non-editable tables providing extensive system status information about Quadro:
Status, L ines Status, M emory
2 5 1 H 2 5 2 H
mailboxes and supplementary services configuration pages.
The System Status page has several tables providing system information.

General Information

The General Information page includes the following
information:
•
Uptime duration - Period Quadro is on since last reboot.
•
Device hostname - Quadro device host name.
•
Quadro Operating System - Quadro operating system
version.
•
Application Software - Software and file system versions
of the Quadro.
•
Boot Loader - Quadro boot loader version.
•
DSP Software - Quadro DSP software version and the
date of build.
•
Preinstalled Languages – this field is present only when
multiple languages are preinstalled on the device and it
indicates the system default languages.
•
Language Pack – this field is present only when the
custom language pack is uploaded and it indicates the
version.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
Status, H ardware Status and S IP Registration
2 5 3 H 2 5 4 H

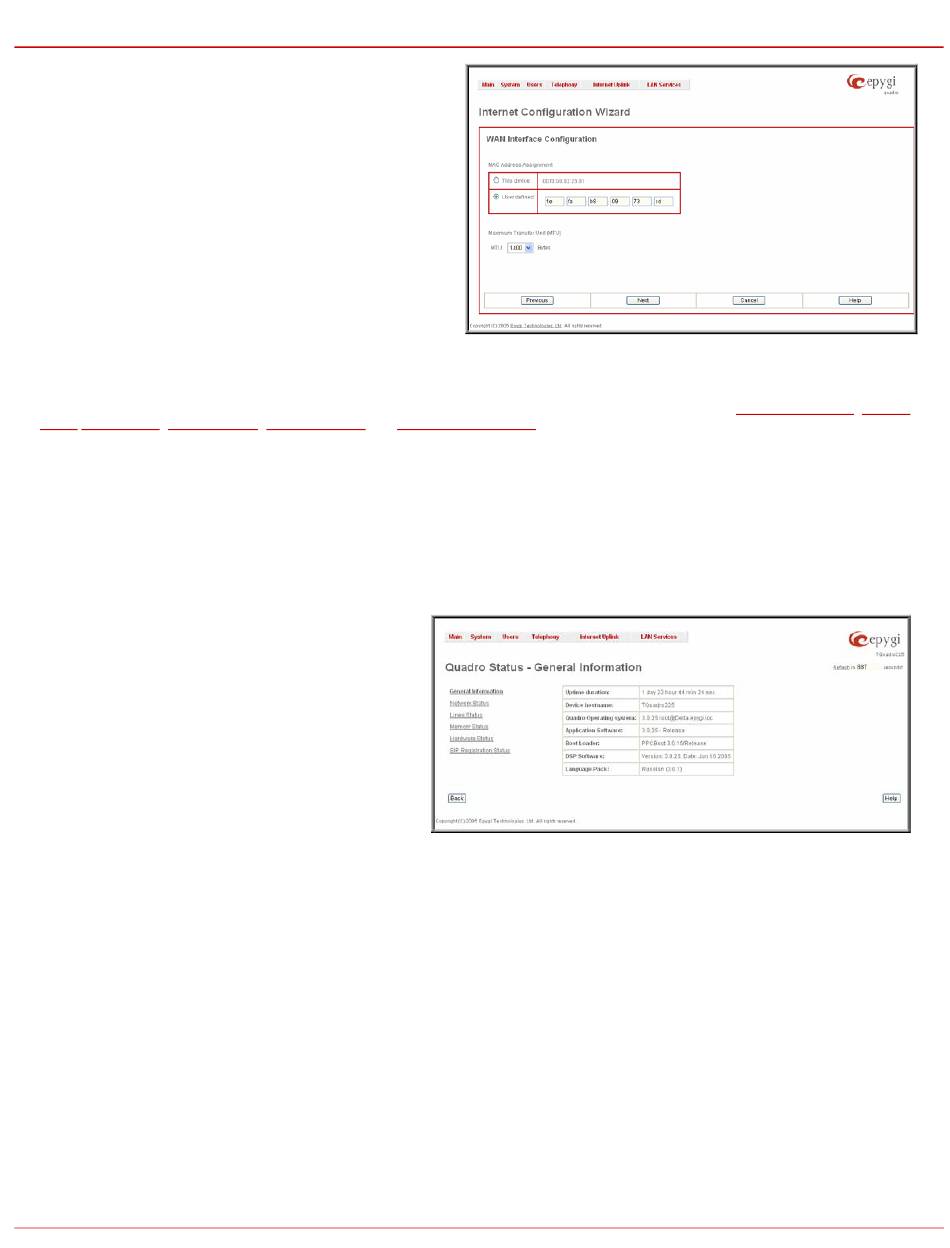

Fig. II-10: Internet Configuration Wizard - WAN MAC Address Configuration page
Status. The links on this page lead to device Transfer Statistics, user
G eneral Information,
2 4 9 H
Fig. II-11: Quadro Status - General Information page
N etwork
2 5 0 H
11
